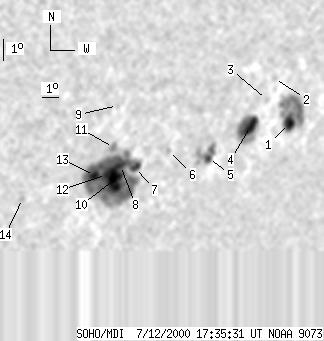

SOHO MDI 2000-07-12 17:35:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 93 | 575 | 70 | 439 | -20.47 | 14.59 | 43.64 | 238.17 | 0.7613 | 263.0 | 119.8 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-12 17:35:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14 | 109 | 12 | 93 | -19.43 | 20.98 | 50.03 | 242.52 | 0.8169 | -738.2 | -270.2 | |
| 0 | 3 | 0 | 3 | -17.41 | 19.24 | 48.28 | 244.17 | 0.7935 | -711.0 | -639.8 | |
| 0 | 3 | 0 | 2 | -18.29 | 19.05 | 48.10 | 243.05 | 0.7950 | -270.0 | -402.3 | |
| 19 | 69 | 15 | 56 | -19.41 | 18.48 | 47.53 | 241.48 | 0.7939 | -1061.0 | -552.6 | |
| 4 | 40 | 3 | 32 | -20.68 | 16.38 | 45.43 | 239.03 | 0.7796 | -674.6 | -683.9 | |
| 0 | 4 | 0 | 3 | -20.20 | 13.84 | 42.89 | 238.30 | 0.7530 | 597.0 | 450.2 | |
| 7 | 332 | 5 | 240 | -20.85 | 12.18 | 41.22 | 236.59 | 0.7401 | 539.5 | 527.3 | |
| 6 | -7 | 4 | -7 | -20.72 | 11.29 | 40.34 | 236.23 | 0.7306 | 1107.0 | 999999 | |
| 0 | 2 | 0 | 1 | -18.09 | 10.35 | 39.40 | 238.95 | 0.7066 | 682.0 | 617.8 | |
| 32 | -7 | 23 | -7 | -21.32 | 11.15 | 40.20 | 235.42 | 0.7327 | 1130.6 | 999999 | |
| 0 | 9 | 0 | 6 | -19.90 | 10.65 | 39.70 | 236.84 | 0.7197 | 1046.0 | 574.8 | |
| 4 | -7 | 3 | -7 | -21.07 | 10.63 | 39.68 | 235.40 | 0.7261 | 1476.8 | 999999 | |
| 7 | -7 | 5 | -7 | -21.09 | 9.97 | 39.02 | 234.97 | 0.7197 | 1514.7 | 999999 | |
| 0 | 4 | 0 | 3 | -21.92 | 6.37 | 35.41 | 231.50 | 0.6892 | 589.0 | 433.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
