SOHO MDI 2000-07-12 17:35:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37 | 120 | 22 | 68 | -10.38 | 306.50 | -24.46 | 121.12 | 0.4772 | 179.4 | -335.2 | |
|
previous
or next observation for the same group /

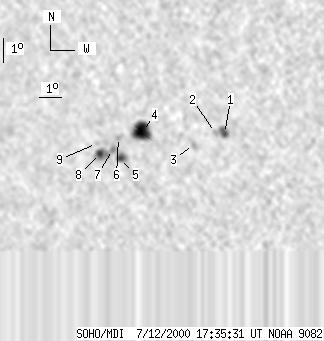

back to the solar disc SOHO MDI 2000-07-12 17:35:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3 | 12 | 2 | 7 | -9.97 | 310.12 | -20.84 | 124.41 | 0.4264 | -1238.4 | -998.9 | |
| 0 | 4 | 0 | 2 | -9.94 | 309.73 | -21.22 | 123.86 | 0.4312 | -760.0 | -718.4 | |
| 0 | 8 | 0 | 4 | -10.46 | 308.74 | -22.21 | 123.66 | 0.4485 | -868.0 | -583.5 | |
| 24 | 47 | 14 | 27 | -10.00 | 306.54 | -24.41 | 120.37 | 0.4737 | 951.8 | 284.4 | |
| 5 | 15 | 3 | 8 | -11.13 | 305.46 | -25.49 | 121.35 | 0.4964 | -966.2 | -764.8 | |
| 0 | 5 | 0 | 3 | -10.28 | 305.45 | -25.50 | 119.81 | 0.4902 | -877.0 | -679.3 | |
| 0 | 7 | 0 | 4 | -10.78 | 305.14 | -25.82 | 120.40 | 0.4980 | -994.0 | -814.7 | |
| 5 | 19 | 3 | 11 | -10.96 | 304.58 | -26.37 | 120.20 | 0.5066 | -1058.7 | -789.1 | |
| 0 | 3 | 0 | 2 | -10.55 | 304.44 | -26.51 | 119.36 | 0.5056 | 267.0 | 193.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
