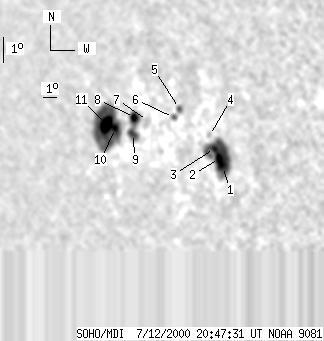

SOHO MDI 2000-07-12 20:47:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45 | 322 | 42 | 297 | 3.06 | 271.66 | -57.52 | 89.08 | 0.8431 | -180.2 | -28.7 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-12 20:47:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6 | 103 | 5 | 83 | 2.10 | 277.12 | -52.07 | 90.61 | 0.7905 | 1058.2 | 614.0 | |
| 7 | -1 | 6 | -1 | 2.41 | 276.91 | -52.28 | 90.21 | 0.7925 | 1115.8 | 999999 | |
| 3 | -1 | 2 | -1 | 2.78 | 276.56 | -52.63 | 89.71 | 0.7960 | 960.2 | 999999 | |
| 0 | 3 | 0 | 3 | 3.28 | 276.19 | -52.99 | 89.06 | 0.7996 | 301.0 | 369.6 | |
| 0 | 7 | 0 | 6 | 4.23 | 274.07 | -55.12 | 87.78 | 0.8209 | 216.0 | 190.3 | |
| 0 | 5 | 0 | 4 | 3.85 | 273.68 | -55.50 | 88.22 | 0.8249 | 366.0 | 270.8 | |
| 0 | 8 | 0 | 7 | 3.61 | 271.83 | -57.36 | 88.40 | 0.8428 | -441.0 | -396.0 | |
| 8 | 38 | 8 | 36 | 3.67 | 270.84 | -58.34 | 88.28 | 0.8519 | -714.5 | -531.1 | |
| 3 | -8 | 3 | -8 | 3.03 | 270.75 | -58.43 | 89.03 | 0.8530 | -725.6 | 999999 | |
| 4 | 158 | 4 | 158 | 3.14 | 269.42 | -59.77 | 88.81 | 0.8649 | -956.1 | -259.1 | |
| 14 | -10 | 14 | -10 | 3.26 | 268.68 | -60.50 | 88.64 | 0.8712 | -713.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
