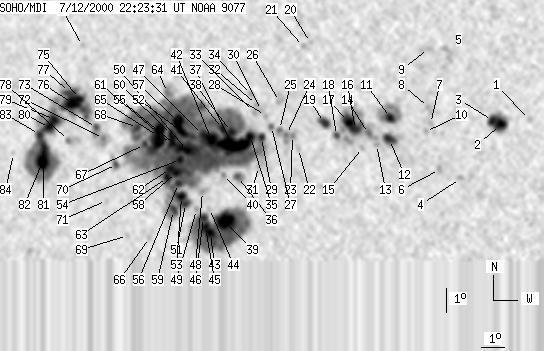

SOHO MDI 2000-07-12 22:23:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 432 | 2790 | 233 | 1504 | 17.63 | 309.82 | -18.49 | 51.17 | 0.3878 | -70.3 | -176.4 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-12 22:23:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 5 | 0 | 3 | 19.00 | 323.74 | -4.57 | 16.41 | 0.2676 | 516.0 | 415.2 | |
| 12 | 53 | 6 | 27 | 18.78 | 322.53 | -5.78 | 20.71 | 0.2707 | 1655.3 | 893.0 | |
| 7 | -2 | 4 | -2 | 18.95 | 322.18 | -6.12 | 21.59 | 0.2753 | 1336.6 | 999999 | |
| 0 | 4 | 0 | 2 | 16.57 | 320.93 | -7.37 | 29.79 | 0.2486 | 1090.0 | 915.8 | |
| 0 | 18 | 0 | 10 | 21.86 | 320.13 | -8.17 | 23.47 | 0.3328 | 709.0 | 689.1 | |
| 0 | 5 | 0 | 3 | 16.93 | 320.04 | -8.26 | 31.88 | 0.2614 | 931.0 | 736.3 | |
| 0 | 4 | 0 | 2 | 18.80 | 319.57 | -8.73 | 29.61 | 0.2920 | 795.0 | 601.5 | |
| 0 | 8 | 0 | 4 | 19.45 | 319.45 | -8.85 | 28.80 | 0.3024 | 878.0 | 800.0 | |
| 0 | 15 | 0 | 8 | 21.89 | 319.31 | -8.99 | 25.46 | 0.3389 | 626.0 | 582.1 | |
| 0 | 4 | 0 | 2 | 18.47 | 319.38 | -8.92 | 30.76 | 0.2890 | 669.0 | 715.0 | |
| 6 | 63 | 3 | 33 | 19.02 | 317.86 | -10.44 | 33.70 | 0.3102 | -1471.3 | -445.1 | |
| 10 | 27 | 5 | 14 | 18.13 | 317.88 | -10.43 | 35.44 | 0.2980 | -1402.2 | -1010.4 | |
| 0 | 4 | 0 | 2 | 17.91 | 317.34 | -10.96 | 37.22 | 0.3005 | -1064.0 | -896.8 | |
| 0 | 6 | 0 | 3 | 18.36 | 316.97 | -11.33 | 37.18 | 0.3100 | -1369.0 | -1213.0 | |
| 0 | 4 | 0 | 2 | 17.78 | 316.75 | -11.55 | 38.91 | 0.3049 | -970.0 | -805.9 | |
| 8 | 136 | 4 | 71 | 18.51 | 316.41 | -11.90 | 38.18 | 0.3177 | -1715.7 | -875.0 | |
| 13 | -16 | 7 | -16 | 18.84 | 316.08 | -12.22 | 38.25 | 0.3250 | -1477.1 | 999999 | |
| 2 | -16 | 1 | -16 | 18.26 | 315.61 | -12.69 | 40.48 | 0.3228 | -1220.0 | 999999 | |
| 9 | 19 | 5 | 10 | 18.78 | 315.06 | -13.25 | 40.56 | 0.3351 | -1123.4 | -718.8 | |
| 0 | 3 | 0 | 2 | 22.07 | 314.15 | -14.15 | 36.28 | 0.3847 | -868.0 | -813.3 | |
| 0 | 4 | 0 | 2 | 21.90 | 313.86 | -14.45 | 37.10 | 0.3853 | -655.0 | -524.8 | |
| 0 | 6 | 0 | 3 | 17.70 | 314.03 | -14.27 | 44.93 | 0.3341 | 741.0 | 641.2 | |
| 0 | 3 | 0 | 2 | 18.22 | 313.73 | -14.58 | 44.35 | 0.3434 | 1347.0 | 1170.4 | |
| 0 | 13 | 0 | 7 | 18.26 | 313.47 | -14.84 | 44.77 | 0.3468 | 1282.0 | 919.1 | |
| 0 | 10 | 0 | 5 | 18.46 | 313.15 | -15.16 | 44.93 | 0.3527 | 953.0 | 818.4 | |
| 0 | 16 | 0 | 9 | 19.61 | 313.04 | -15.27 | 42.79 | 0.3667 | 827.0 | 768.5 | |
| 0 | 5 | 0 | 3 | 18.58 | 312.79 | -15.52 | 45.32 | 0.3581 | 1128.0 | 826.9 | |
| 0 | 3 | 0 | 2 | 19.02 | 312.49 | -15.82 | 44.93 | 0.3665 | 873.0 | 868.1 | |
| 4 | 1525 | 2 | 820 | 18.12 | 312.40 | -15.91 | 46.97 | 0.3578 | 807.2 | 27.3 | |
| 0 | 5 | 0 | 3 | 19.22 | 312.29 | -16.01 | 44.86 | 0.3709 | 743.0 | 440.0 | |
| 0 | 9 | 0 | 5 | 16.94 | 312.38 | -15.93 | 49.65 | 0.3460 | -935.0 | -695.9 | |
| 0 | 4 | 0 | 2 | 19.46 | 312.05 | -16.26 | 44.78 | 0.3763 | 891.0 | 740.1 | |
| 0 | 4 | 0 | 2 | 19.17 | 311.95 | -16.36 | 45.53 | 0.3743 | 854.0 | 778.0 | |
| 0 | 5 | 0 | 3 | 19.87 | 311.79 | -16.52 | 44.42 | 0.3837 | 1024.0 | 768.9 | |
| 7 | -29 | 4 | -29 | 18.15 | 311.92 | -16.39 | 47.71 | 0.3639 | 1262.0 | 999999 | |
| 3 | 14 | 2 | 7 | 16.51 | 311.51 | -16.80 | 52.04 | 0.3529 | -1349.7 | -938.9 | |
| 41 | -29 | 22 | -29 | 17.81 | 311.17 | -17.14 | 49.65 | 0.3696 | 1622.3 | 999999 | |
| 6 | -29 | 3 | -29 | 18.34 | 311.07 | -17.23 | 48.68 | 0.3761 | 1408.7 | 999999 | |
| 33 | 297 | 17 | 157 | 14.69 | 311.15 | -17.16 | 57.03 | 0.3416 | -2020.8 | -852.5 | |
| 0 | 4 | 0 | 2 | 16.58 | 310.90 | -17.41 | 52.81 | 0.3615 | -1076.0 | -904.6 | |
| 4 | -29 | 2 | -29 | 18.45 | 310.67 | -17.64 | 49.06 | 0.3821 | 1096.8 | 999999 | |
| 17 | -29 | 9 | -29 | 17.99 | 310.23 | -18.07 | 50.67 | 0.3831 | 1402.9 | 999999 | |
| 8 | -39 | 4 | -39 | 14.19 | 310.54 | -17.76 | 59.13 | 0.3460 | -1767.2 | 999999 | |
| 0 | 3 | 0 | 2 | 15.20 | 310.42 | -17.89 | 56.79 | 0.3558 | -804.0 | -674.2 | |
| 5 | -39 | 3 | -39 | 14.47 | 310.31 | -18.00 | 58.74 | 0.3515 | -1552.4 | 999999 | |
| 5 | -39 | 3 | -39 | 14.83 | 310.19 | -18.11 | 58.00 | 0.3560 | -1319.4 | 999999 | |
| 8 | -29 | 4 | -29 | 18.19 | 309.82 | -18.49 | 50.86 | 0.3901 | 1247.3 | 999999 | |
| 0 | 8 | 0 | 4 | 15.87 | 310.05 | -18.25 | 55.66 | 0.3664 | -1182.0 | -943.7 | |
| 0 | 3 | 0 | 2 | 15.14 | 309.86 | -18.44 | 57.66 | 0.3630 | -1048.0 | -923.3 | |
| 6 | -29 | 3 | -29 | 17.52 | 309.23 | -19.07 | 53.08 | 0.3915 | -1000.1 | 999999 | |
| 5 | -29 | 3 | -29 | 15.37 | 309.36 | -18.94 | 57.75 | 0.3717 | -1451.2 | 999999 | |
| 9 | -29 | 5 | -29 | 18.25 | 308.93 | -19.38 | 51.95 | 0.4018 | 1672.4 | 999999 | |
| 7 | -29 | 4 | -29 | 15.65 | 309.16 | -19.14 | 57.35 | 0.3767 | -1654.0 | 999999 | |
| 5 | -29 | 3 | -29 | 17.15 | 308.96 | -19.34 | 54.24 | 0.3917 | -1162.5 | 999999 | |
| 9 | -29 | 5 | -29 | 17.59 | 308.87 | -19.43 | 53.40 | 0.3967 | 1522.0 | 999999 | |
| 4 | -29 | 2 | -29 | 16.17 | 308.98 | -19.33 | 56.38 | 0.3833 | -1765.5 | 999999 | |
| 14 | -29 | 8 | -29 | 18.69 | 308.65 | -19.65 | 51.41 | 0.4093 | 1418.0 | 999999 | |
| 6 | -29 | 3 | -29 | 16.62 | 308.84 | -19.46 | 55.56 | 0.3888 | -1991.1 | 999999 | |
| 6 | -29 | 3 | -29 | 15.08 | 308.87 | -19.44 | 59.05 | 0.3762 | -1203.5 | 999999 | |
| 8 | -29 | 4 | -29 | 18.16 | 308.45 | -19.85 | 52.77 | 0.4070 | 1304.7 | 999999 | |
| 7 | -29 | 4 | -29 | 17.75 | 308.50 | -19.81 | 53.56 | 0.4028 | 1310.9 | 999999 | |
| 6 | -29 | 3 | -29 | 16.77 | 308.56 | -19.74 | 55.57 | 0.3938 | -1597.9 | 999999 | |
| 6 | -29 | 3 | -29 | 16.40 | 308.47 | -19.83 | 56.49 | 0.3920 | -1374.9 | 999999 | |
| 0 | 12 | 0 | 7 | 19.87 | 308.06 | -20.25 | 49.88 | 0.4274 | 174.0 | 180.4 | |
| 33 | -29 | 18 | -29 | 18.06 | 307.89 | -20.42 | 53.68 | 0.4134 | 1378.1 | 999999 | |
| 0 | 4 | 0 | 2 | 13.97 | 307.93 | -20.38 | 62.75 | 0.3817 | -746.0 | -635.7 | |
| 3 | -29 | 2 | -29 | 17.72 | 307.30 | -21.00 | 55.08 | 0.4181 | 1071.3 | 999999 | |
| 4 | -29 | 2 | -29 | 18.40 | 306.90 | -21.40 | 54.16 | 0.4289 | 973.6 | 999999 | |
| 0 | 4 | 0 | 2 | 14.02 | 306.96 | -21.34 | 63.58 | 0.3959 | -763.0 | -622.2 | |
| 3 | 11 | 2 | 6 | 16.87 | 306.16 | -22.15 | 58.11 | 0.4267 | -1088.0 | -736.2 | |
| 0 | 4 | 0 | 2 | 15.41 | 305.89 | -22.42 | 61.50 | 0.4201 | -779.0 | -596.7 | |
| 0 | 11 | 0 | 6 | 17.91 | 305.44 | -22.87 | 56.74 | 0.4440 | -970.0 | -513.6 | |
| 3 | 17 | 2 | 10 | 18.35 | 305.06 | -23.24 | 56.27 | 0.4522 | -1184.7 | -752.1 | |
| 0 | 4 | 0 | 2 | 21.70 | 303.87 | -24.43 | 51.40 | 0.4937 | 805.0 | 674.6 | |
| 6 | 384 | 3 | 216 | 19.52 | 304.11 | -24.20 | 55.04 | 0.4733 | 890.7 | -378.6 | |
| 15 | -75 | 8 | -75 | 19.30 | 303.82 | -24.49 | 55.72 | 0.4754 | -884.1 | 999999 | |
| 7 | -75 | 4 | -75 | 19.75 | 303.61 | -24.70 | 55.11 | 0.4814 | 955.6 | 999999 | |
| 0 | 16 | 0 | 9 | 17.79 | 303.87 | -24.44 | 58.53 | 0.4638 | -953.0 | -860.3 | |
| 9 | -75 | 5 | -75 | 18.62 | 303.09 | -25.21 | 57.65 | 0.4797 | -902.2 | 999999 | |
| 9 | -75 | 5 | -75 | 18.29 | 302.92 | -25.39 | 58.44 | 0.4797 | -1291.9 | 999999 | |
| 9 | -75 | 5 | -75 | 17.51 | 302.76 | -25.54 | 60.05 | 0.4765 | -1081.0 | 999999 | |
| 20 | -75 | 11 | -75 | 16.90 | 302.80 | -25.50 | 61.19 | 0.4720 | -1701.5 | 999999 | |
| 5 | -75 | 3 | -75 | 17.99 | 302.50 | -25.80 | 59.36 | 0.4831 | 679.5 | 999999 | |
| 0 | 4 | 0 | 2 | 17.18 | 301.42 | -26.88 | 61.75 | 0.4924 | -527.0 | -410.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
