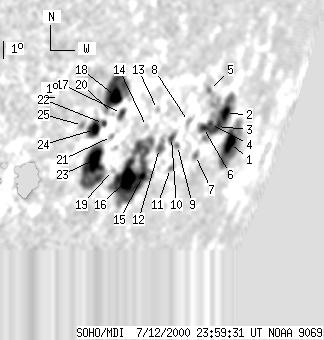

SOHO MDI 2000-07-12 23:59:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 141 | 817 | 183 | 1064 | -18.28 | 32.13 | 64.71 | 248.13 | 0.9226 | 279.2 | 9.8 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-12 23:59:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19 | 103 | 36 | 191 | -18.79 | 39.58 | 72.16 | 249.19 | 0.9653 | -353.5 | 63.1 | |
| 14 | 136 | 23 | 219 | -17.39 | 37.69 | 70.27 | 250.30 | 0.9554 | -274.4 | -268.5 | |
| 10 | -2 | 16 | -2 | -17.89 | 37.02 | 69.60 | 249.66 | 0.9527 | -382.7 | 999999 | |
| 2 | -2 | 2 | -2 | -17.74 | 36.19 | 68.77 | 249.65 | 0.9483 | -606.1 | 999999 | |
| 0 | 10 | 0 | 14 | -16.23 | 34.91 | 67.48 | 250.98 | 0.9397 | -139.0 | -186.3 | |
| 3 | -2 | 5 | -2 | -17.82 | 35.45 | 68.03 | 249.43 | 0.9444 | -600.6 | 999999 | |
| 0 | 7 | 0 | 10 | -19.01 | 35.54 | 68.12 | 248.21 | 0.9463 | -425.0 | -351.5 | |
| 0 | 6 | 0 | 8 | -17.43 | 33.53 | 66.11 | 249.44 | 0.9332 | -351.0 | -318.6 | |
| 0 | 5 | 0 | 7 | -18.42 | 33.12 | 65.70 | 248.32 | 0.9321 | -486.0 | -463.5 | |
| 0 | 12 | 0 | 15 | -18.02 | 32.23 | 64.81 | 248.54 | 0.9262 | -573.0 | -558.2 | |
| 0 | 5 | 0 | 7 | -19.40 | 33.15 | 65.73 | 247.30 | 0.9336 | -261.0 | -192.9 | |
| 2 | 16 | 2 | 20 | -18.42 | 31.34 | 63.92 | 247.91 | 0.9213 | -659.4 | -558.0 | |
| 0 | 4 | 0 | 4 | -16.69 | 30.05 | 62.63 | 249.46 | 0.9102 | -142.0 | -242.4 | |
| 0 | 3 | 0 | 4 | -17.36 | 29.46 | 62.04 | 248.59 | 0.9073 | -355.0 | -317.4 | |
| 4 | 231 | 5 | 275 | -19.56 | 30.52 | 63.10 | 246.51 | 0.9179 | 187.0 | -69.1 | |
| 22 | -15 | 26 | -15 | -19.60 | 29.17 | 61.75 | 246.13 | 0.9092 | 725.6 | 999999 | |
| 2 | 11 | 2 | 12 | -16.65 | 26.93 | 59.50 | 248.73 | 0.8878 | 216.5 | 130.4 | |
| 18 | 98 | 19 | 101 | -15.88 | 26.06 | 58.64 | 249.34 | 0.8797 | 945.1 | 472.3 | |
| 0 | 3 | 0 | 3 | -19.10 | 27.55 | 60.13 | 246.23 | 0.8972 | 199.0 | 212.7 | |
| 0 | 2 | 0 | 2 | -16.60 | 26.17 | 58.75 | 248.58 | 0.8820 | 613.0 | 409.0 | |
| 0 | 5 | 0 | 5 | -17.60 | 26.60 | 59.18 | 247.60 | 0.8873 | 387.0 | 303.8 | |
| 1 | 34 | 1 | 35 | -16.99 | 25.64 | 58.22 | 248.01 | 0.8788 | 524.5 | 598.5 | |
| 28 | 121 | 30 | 127 | -18.51 | 25.73 | 58.30 | 246.35 | 0.8827 | 992.4 | 299.2 | |
| 16 | -22 | 16 | -22 | -17.20 | 25.04 | 57.62 | 247.60 | 0.8745 | 893.7 | 999999 | |
| 0 | 5 | 0 | 5 | -16.96 | 24.01 | 56.59 | 247.56 | 0.8658 | -89.0 | 10.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
