group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
9077	455	2822	245	1512	17.59	309.87	-17.55	49.91	0.3757	-84.8	-181.1

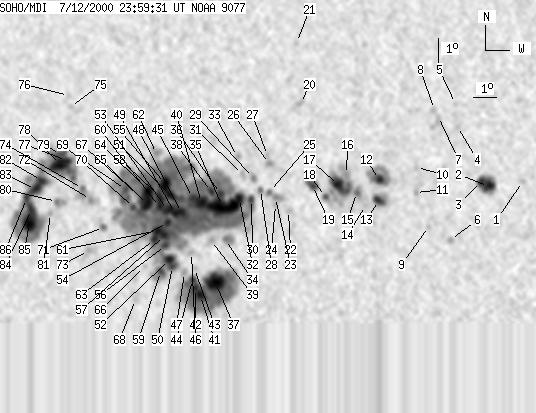

previous   or   next   observation for the same group / back to the solar disc SOHO MDI 2000-07-12 23:59:31 UT

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0	6	0	3	18.97	323.90	-3.52	12.83	0.2626	634.0	413.6
2	12	49	6	25	18.76	322.48	-4.94	17.96	0.2655	1676.1	928.1
3	8	-2	4	-2	18.96	322.18	-5.24	18.72	0.2703	1391.9	999999
4	0	4	0	2	21.22	321.08	-6.34	19.37	0.3118	762.0	631.6
5	0	3	0	2	22.17	320.95	-6.47	18.67	0.3274	502.0	415.2
6	0	5	0	3	16.59	320.96	-6.46	26.65	0.2414	919.0	810.4
7	0	14	0	7	21.63	320.25	-7.17	21.16	0.3229	799.0	806.2
8	0	5	0	3	21.92	320.06	-7.36	21.31	0.3284	757.0	687.8
9	0	4	0	2	17.11	320.03	-7.39	28.79	0.2565	904.0	785.7
10	0	3	0	2	19.51	319.42	-8.01	26.39	0.2967	833.0	786.1
11	0	4	0	2	18.49	319.42	-8.00	28.09	0.2815	842.0	688.0
12	5	57	3	29	19.00	317.87	-9.55	31.47	0.3018	-1466.6	-496.2
13	9	29	5	15	18.15	317.88	-9.54	33.09	0.2898	-1507.4	-873.9
14	0	16	0	8	17.94	317.34	-10.08	34.94	0.2920	-1077.0	-829.6
15	2	16	1	8	18.46	316.93	-10.49	34.93	0.3030	-1414.5	-983.1
16	0	19	0	10	19.19	316.46	-10.97	34.67	0.3172	-217.0	-206.7
17	13	121	7	63	18.74	316.14	-11.28	36.30	0.3142	-1622.4	-1033.0
18	2	-17	1	-17	18.28	315.62	-11.80	38.45	0.3136	-1188.2	999999
19	9	19	5	10	18.72	315.04	-12.39	38.86	0.3252	-1175.5	-705.8
20	0	6	0	3	22.09	314.23	-13.19	34.40	0.3759	-960.0	-799.1
21	0	3	0	2	24.65	313.79	-13.63	31.40	0.4130	-699.0	-623.8
22	0	5	0	3	17.68	314.09	-13.33	43.09	0.3230	840.0	694.4
23	0	13	0	7	18.20	313.49	-13.93	43.17	0.3358	1145.0	1009.0
24	0	4	0	2	17.92	313.51	-13.91	43.74	0.3323	928.0	769.6
25	0	9	0	5	18.45	313.21	-14.21	43.20	0.3417	844.0	730.3
26	0	9	0	5	19.59	313.11	-14.31	41.06	0.3561	1143.0	886.5
27	0	5	0	3	19.92	312.99	-14.43	40.64	0.3612	939.0	818.0
28	0	6	0	3	18.52	312.82	-14.60	43.79	0.3470	1241.0	816.6
29	0	7	0	4	19.01	312.47	-14.95	43.43	0.3564	1069.0	888.8
30	5	1548	3	828	18.11	312.46	-14.96	45.33	0.3464	707.7	35.3
31	0	6	0	3	19.12	311.98	-15.44	44.08	0.3631	717.0	661.4
32	8	-30	4	-30	18.14	311.94	-15.48	46.20	0.3529	1410.0	999999
33	0	7	0	4	19.85	311.69	-15.73	43.13	0.3746	901.0	749.4
34	0	15	0	8	16.46	311.49	-15.93	50.79	0.3413	-1323.0	-897.6
35	44	-30	23	-30	17.80	311.24	-16.18	48.15	0.3578	1652.7	999999
36	5	-30	3	-30	18.32	311.10	-16.32	47.24	0.3648	1393.1	999999
37	32	319	17	167	14.71	311.20	-16.22	55.58	0.3289	-2006.1	-815.5
38	4	-30	2	-30	18.40	310.70	-16.72	47.74	0.3704	1150.9	999999
39	0	7	0	4	16.41	310.89	-16.53	51.88	0.3484	-1100.0	-955.4
40	18	-30	10	-30	17.94	310.31	-17.11	49.34	0.3705	1346.8	999999
41	10	-37	5	-37	14.18	310.60	-16.82	57.88	0.3327	-1788.6	999999
42	6	-37	3	-37	14.46	310.37	-17.05	57.49	0.3382	-1587.3	999999
43	0	4	0	2	15.26	310.26	-17.16	55.62	0.3465	-762.0	-571.9
44	4	-37	2	-37	14.82	310.21	-17.21	56.80	0.3434	-1249.2	999999
45	7	-30	4	-30	18.14	309.90	-17.52	49.56	0.3775	1305.9	999999
46	0	5	0	3	15.90	310.07	-17.35	54.33	0.3545	-1071.0	-919.7
47	0	8	0	4	15.09	309.84	-17.58	56.63	0.3507	-928.0	-753.6
48	12	-30	7	-30	17.51	309.48	-17.94	51.51	0.3768	-1536.5	999999
49	-48	-30	-48	-30	17.47	309.23	-18.19	51.99	0.3797	999999	999999
50	5	-30	3	-30	15.32	309.30	-18.12	56.81	0.3599	-1484.0	999999
51	9	-30	5	-30	18.20	308.93	-18.49	50.86	0.3902	1641.8	999999
52	8	-30	4	-30	15.60	309.15	-18.27	56.35	0.3643	-1596.9	999999
53	11	-30	6	-30	17.62	308.86	-18.56	52.17	0.3857	1557.4	999999
54	4	-30	2	-30	17.10	308.92	-18.51	53.24	0.3803	-1292.3	999999
55	14	-30	8	-30	18.68	308.65	-18.77	50.24	0.3981	1441.4	999999
56	6	-30	3	-30	16.16	308.92	-18.50	55.34	0.3721	-1706.4	999999
57	7	-30	4	-30	16.57	308.84	-18.58	54.53	0.3766	-1929.4	999999
58	9	-30	5	-30	18.10	308.50	-18.92	51.65	0.3947	1443.9	999999
59	4	-30	2	-30	15.11	308.80	-18.62	57.98	0.3651	-1191.4	999999
60	6	-30	3	-30	17.74	308.50	-18.92	52.43	0.3914	1419.4	999999
61	8	-30	4	-30	16.76	308.51	-18.91	54.53	0.3826	-1499.1	999999
62	0	14	0	7	19.90	308.11	-19.31	48.59	0.4164	-105.0	271.6
63	7	-30	4	-30	16.39	308.42	-19.00	55.48	0.3807	-1437.1	999999
64	14	-30	8	-30	18.38	307.94	-19.48	51.84	0.4043	1346.7	999999
65	15	-30	8	-30	17.81	307.96	-19.46	53.00	0.3989	1376.4	999999
66	0	3	0	2	15.29	308.09	-19.33	58.43	0.3763	-451.0	-367.0
67	6	-30	3	-30	18.00	307.72	-19.70	52.90	0.4037	1279.7	999999
68	0	3	0	2	13.96	307.83	-19.60	61.96	0.3704	-728.0	-739.7
69	3	-30	1	-30	17.67	307.36	-20.06	54.06	0.4055	1036.6	999999
70	4	-30	2	-30	18.39	306.91	-20.51	53.12	0.4173	926.6	999999
71	2	13	1	7	16.82	306.13	-21.30	57.30	0.4148	-1187.2	-760.5
72	0	6	0	3	17.95	305.41	-22.02	55.78	0.4331	-1089.0	-699.1
73	0	10	0	6	15.88	305.57	-21.85	59.93	0.4154	-930.0	-715.0
74	0	18	0	10	18.38	304.99	-22.44	55.37	0.4420	-1234.0	-729.1
75	0	4	0	2	21.74	303.91	-23.51	50.37	0.4830	798.0	700.0
76	0	4	0	2	22.19	303.74	-23.68	49.78	0.4890	470.0	475.2
77	29	371	16	208	19.51	304.09	-23.33	54.17	0.4623	-258.1	-372.0
78	-77	-77	-77	-77	19.34	303.85	-23.58	54.75	0.4640	999999	999999
79	8	-77	4	-77	19.75	303.78	-23.64	54.06	0.4681	980.7	999999
80	0	12	0	7	17.82	303.89	-23.53	57.61	0.4520	-1091.0	-979.0
81	0	4	0	2	17.33	303.68	-23.74	58.79	0.4512	-812.0	-664.8
82	8	-77	5	-77	18.66	303.08	-24.34	56.79	0.4687	-775.2	999999
83	11	-77	6	-77	18.28	302.86	-24.56	57.71	0.4688	-1233.1	999999
84	38	-77	21	-77	17.46	302.80	-24.62	59.34	0.4639	-1562.8	999999
85	-84	-77	-84	-77	16.93	302.78	-24.64	60.39	0.4606	999999	999999
86	4	-77	2	-77	17.91	302.50	-24.92	58.75	0.4708	486.8	999999

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
