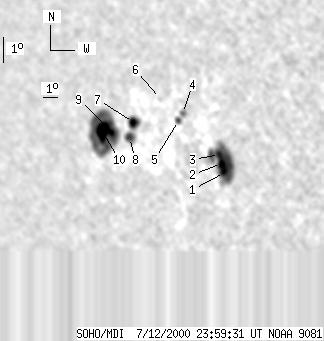

SOHO MDI 2000-07-12 23:59:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54 | 317 | 48 | 278 | 2.99 | 271.61 | -55.81 | 89.27 | 0.8266 | -208.7 | 8.9 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-12 23:59:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7 | 109 | 5 | 84 | 2.05 | 277.07 | -50.35 | 90.83 | 0.7718 | 1023.0 | 637.2 | |
| 5 | -1 | 4 | -1 | 2.40 | 276.86 | -50.56 | 90.37 | 0.7739 | 1046.2 | 999999 | |
| 5 | -1 | 4 | -1 | 2.75 | 276.72 | -50.70 | 89.90 | 0.7752 | 981.2 | 999999 | |
| 0 | 6 | 0 | 5 | 4.23 | 274.21 | -53.21 | 87.87 | 0.8015 | 353.0 | 266.8 | |
| 1 | 5 | 1 | 4 | 3.94 | 273.97 | -53.45 | 88.23 | 0.8041 | 390.0 | 300.8 | |
| 0 | 2 | 0 | 1 | 4.73 | 272.66 | -54.77 | 87.18 | 0.8172 | -383.0 | -327.6 | |
| 10 | 19 | 9 | 17 | 3.67 | 270.86 | -56.57 | 88.39 | 0.8353 | -645.1 | -546.9 | |
| 4 | 15 | 4 | 14 | 3.06 | 270.62 | -56.80 | 89.10 | 0.8378 | -536.6 | -417.4 | |
| 4 | 161 | 4 | 153 | 3.18 | 269.35 | -58.07 | 88.88 | 0.8497 | -1058.3 | -249.1 | |
| 18 | -9 | 17 | -9 | 3.17 | 268.58 | -58.84 | 88.85 | 0.8566 | -677.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
