group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
9077	432	2533	228	1349	17.53	309.78	-16.76	48.74	0.3654	-46.3	-175.7

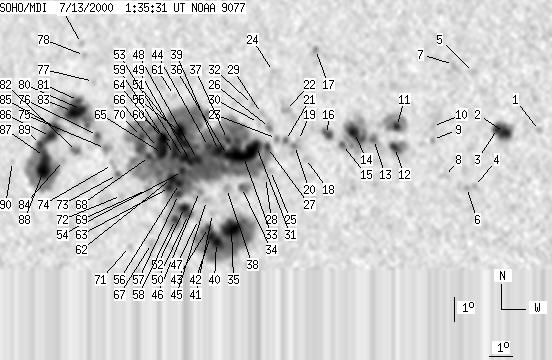

previous   or   next   observation for the same group / back to the solar disc SOHO MDI 2000-07-13 01:35:31 UT

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0	4	0	2	18.90	323.94	-2.59	9.59	0.2582	425.0	454.8
2	13	48	7	25	18.81	322.48	-4.06	14.88	0.2620	1623.5	889.7
3	7	-2	4	-2	18.97	322.18	-4.36	15.74	0.2660	1309.4	999999
4	0	4	0	2	16.60	321.29	-5.25	22.22	0.2331	905.0	744.8
5	0	4	0	2	21.27	321.09	-5.45	16.76	0.3080	1018.0	833.9
6	0	4	0	2	16.56	320.96	-5.58	23.54	0.2346	896.0	875.8
7	0	6	0	3	21.60	320.22	-6.31	18.87	0.3175	920.0	864.1
8	0	8	0	4	17.00	320.03	-6.51	26.07	0.2479	630.0	696.7
9	0	4	0	2	18.50	319.47	-7.07	25.28	0.2747	885.0	676.0
10	0	5	0	3	19.04	319.44	-7.09	24.50	0.2828	884.0	728.1
11	5	55	3	28	19.02	317.92	-8.62	28.93	0.2941	-1439.1	-483.8
12	4	33	2	17	18.16	317.88	-8.66	30.61	0.2821	-1520.9	-884.6
13	2	14	1	7	18.48	316.98	-9.56	32.50	0.2945	-1317.9	-1005.0
14	13	125	7	65	18.75	316.16	-10.38	34.09	0.3058	-1643.0	-979.1
15	2	-14	1	-14	18.26	315.68	-10.86	36.28	0.3038	-1149.6	999999
16	8	18	4	9	18.66	315.01	-11.53	37.05	0.3156	-1136.6	-693.3
17	0	5	0	3	22.15	314.22	-12.32	32.56	0.3688	-1109.0	-870.6
18	0	6	0	3	17.66	314.14	-12.39	41.14	0.3123	836.0	679.5
19	0	4	0	2	18.39	313.79	-12.75	40.33	0.3249	910.0	868.0
20	0	14	0	7	18.19	313.64	-12.90	41.10	0.3241	1239.0	965.2
21	2	10	1	5	18.38	313.24	-13.30	41.52	0.3308	952.4	674.8
22	0	8	0	4	19.61	313.14	-13.40	39.24	0.3467	996.0	912.6
23	0	6	0	3	18.46	312.84	-13.69	42.16	0.3360	1122.0	899.6
24	0	3	0	2	21.21	312.47	-14.07	37.60	0.3731	823.0	716.0
25	0	5	0	2	17.15	312.69	-13.85	45.36	0.3228	-402.0	-385.4
26	0	11	0	6	18.90	312.51	-14.03	41.91	0.3449	1140.0	863.1
27	5	1203	2	641	18.09	312.49	-14.05	43.67	0.3357	780.9	155.8
28	0	4	0	2	16.86	312.50	-14.04	46.41	0.3220	-936.0	-762.5
29	0	3	0	2	19.47	312.11	-14.43	41.53	0.3559	727.0	694.8
30	0	4	0	2	19.10	312.01	-14.53	42.46	0.3526	797.0	709.8
31	46	-27	24	-27	18.12	312.01	-14.53	44.52	0.3415	1704.7	999999
32	0	4	0	2	19.83	311.68	-14.85	41.61	0.3647	860.0	628.2
33	-31	-27	-31	-27	17.70	311.49	-15.05	46.40	0.3431	999999	999999
34	2	17	1	9	16.44	311.51	-15.03	49.28	0.3296	-1287.7	-816.6
35	26	304	14	159	14.78	311.21	-15.33	53.99	0.3174	-2040.3	-861.2
36	6	-27	3	-27	17.73	310.80	-15.74	47.57	0.3517	1401.4	999999
37	5	-27	3	-27	18.38	310.74	-15.80	46.26	0.3592	1148.1	999999
38	0	10	0	5	16.39	310.87	-15.67	50.52	0.3372	-1092.0	-890.5
39	14	-27	7	-27	17.92	310.39	-16.15	47.83	0.3586	1417.8	999999
40	9	-35	4	-35	14.20	310.61	-15.93	56.50	0.3204	-1870.0	999999
41	0	6	0	3	15.37	310.35	-16.19	53.88	0.3342	-231.0	-363.6
42	7	-35	4	-35	14.44	310.34	-16.20	56.29	0.3262	-1549.1	999999
43	4	-35	2	-35	14.80	310.23	-16.31	55.52	0.3309	-1288.3	999999
44	6	-27	3	-27	18.08	309.94	-16.60	48.24	0.3656	1304.3	999999
45	0	6	0	3	15.89	310.05	-16.49	53.07	0.3429	-999.0	-900.8
46	0	4	0	2	16.24	309.72	-16.82	52.73	0.3506	-734.0	-561.0
47	0	5	0	3	15.11	309.77	-16.76	55.41	0.3397	-962.0	-784.6
48	8	-27	4	-27	17.54	309.51	-17.02	50.09	0.3655	-1800.1	999999
49	4	-27	2	-27	17.45	309.22	-17.32	50.74	0.3684	-1051.5	999999
50	5	94	3	50	15.31	309.33	-17.21	55.59	0.3474	-1430.3	-720.3
51	12	-27	6	-27	18.14	308.93	-17.61	49.69	0.3786	1609.2	999999
52	10	-50	5	-50	15.58	309.13	-17.41	55.20	0.3525	-1555.4	999999
53	11	-27	6	-27	17.61	308.90	-17.64	50.89	0.3739	1582.0	999999
54	6	-27	3	-27	17.04	308.91	-17.63	52.13	0.3684	-1279.4	999999
55	15	-27	8	-27	18.66	308.61	-17.93	49.07	0.3876	1446.6	999999
56	6	-27	3	-27	16.55	308.83	-17.71	53.36	0.3650	-1991.8	999999
57	6	-27	3	-27	16.10	308.83	-17.71	54.40	0.3611	-1680.5	999999
58	5	-50	3	-50	15.09	308.79	-17.75	56.88	0.3530	-1112.2	999999
59	7	-27	4	-27	17.72	308.49	-18.05	51.24	0.3801	1313.1	999999
60	7	-27	4	-27	18.09	308.45	-18.08	50.51	0.3840	1357.8	999999
61	0	2	0	1	20.13	308.22	-18.32	46.74	0.4069	470.0	400.0
62	8	-27	4	-27	16.74	308.46	-18.08	53.44	0.3715	-1480.9	999999
63	5	-27	3	-27	16.38	308.41	-18.13	54.35	0.3690	-1415.1	999999
64	16	-27	8	-27	18.36	307.90	-18.64	50.73	0.3935	1391.4	999999
65	11	-27	6	-27	17.75	307.96	-18.57	51.93	0.3870	1328.9	999999
66	6	-27	3	-27	17.99	307.72	-18.82	51.76	0.3923	1257.1	999999
67	0	9	0	5	14.10	307.84	-18.70	60.57	0.3586	-664.0	-687.7
68	3	-27	2	-27	17.62	307.41	-19.13	52.98	0.3929	1012.8	999999
69	0	8	0	4	16.28	307.46	-19.08	55.86	0.3807	-276.0	-192.3
70	4	-27	2	-27	18.42	306.96	-19.58	51.89	0.4058	875.5	999999
71	0	5	0	3	13.96	306.90	-19.64	62.01	0.3710	-585.0	-520.2
72	0	4	0	2	16.01	306.35	-20.19	57.83	0.3935	-730.0	-567.2
73	0	8	0	4	16.85	306.08	-20.46	56.29	0.4038	-1189.0	-944.7
74	0	9	0	5	17.25	305.81	-20.72	55.76	0.4105	152.0	-79.6
75	0	12	0	7	17.89	305.43	-21.11	54.88	0.4209	-958.0	-509.8
76	3	16	2	9	18.41	305.00	-21.54	54.32	0.4306	-1112.4	-725.5
77	0	3	0	2	20.62	304.51	-22.03	50.69	0.4556	572.0	500.5
78	0	4	0	2	21.69	303.92	-22.62	49.48	0.4720	535.0	557.9
79	0	4	0	3	22.18	303.70	-22.84	48.88	0.4790	726.0	603.4
80	29	147	16	82	19.46	304.13	-22.41	53.28	0.4502	-245.4	-115.6
81	2	-80	1	-80	19.82	303.94	-22.60	52.81	0.4556	1103.8	999999
82	2	13	1	7	17.74	304.15	-22.39	56.62	0.4363	-1241.2	-1048.3
83	-80	-80	-80	-80	19.36	303.74	-22.80	53.89	0.4544	999999	999999
84	0	4	0	2	17.36	303.61	-22.93	57.95	0.4405	-987.0	-831.5
85	8	213	4	118	18.69	303.06	-23.48	55.89	0.4577	-468.0	-560.5
86	10	-85	5	-85	18.32	302.89	-23.65	56.78	0.4571	-1379.8	999999
87	9	-85	5	-85	17.49	302.73	-23.81	58.53	0.4532	-1199.5	999999
88	23	-85	12	-85	16.92	302.77	-23.77	59.64	0.4488	-1745.4	999999
89	5	-85	3	-85	17.98	302.48	-24.06	57.83	0.4600	673.8	999999
90	0	4	0	2	17.25	301.31	-25.23	60.31	0.4706	-641.0	-454.4

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
