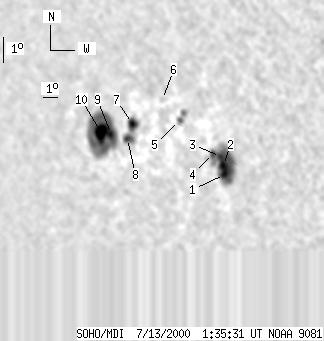

SOHO MDI 2000-07-13 01:35:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60 | 319 | 50 | 276 | 3.00 | 271.66 | -54.88 | 89.32 | 0.8175 | -143.9 | -8.3 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-13 01:35:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8 | 108 | 6 | 83 | 2.02 | 276.99 | -49.55 | 90.95 | 0.7628 | 1039.8 | 626.8 | |
| 8 | -1 | 6 | -1 | 2.37 | 276.91 | -49.62 | 90.48 | 0.7635 | 1165.9 | 999999 | |
| 4 | -1 | 3 | -1 | 2.72 | 276.71 | -49.83 | 90.01 | 0.7655 | 1052.0 | 999999 | |
| 3 | -1 | 2 | -1 | 2.81 | 276.21 | -50.33 | 89.85 | 0.7711 | 586.9 | 999999 | |
| 1 | 14 | 1 | 12 | 3.99 | 274.01 | -52.53 | 88.20 | 0.7944 | 443.5 | 313.7 | |
| 0 | 3 | 0 | 2 | 4.76 | 272.80 | -53.74 | 87.20 | 0.8067 | -203.0 | -303.3 | |
| 9 | 17 | 8 | 15 | 3.69 | 270.83 | -55.71 | 88.42 | 0.8269 | -773.3 | -636.0 | |
| 6 | 13 | 5 | 12 | 3.07 | 270.53 | -56.01 | 89.14 | 0.8302 | -520.1 | -445.2 | |
| 6 | 164 | 5 | 152 | 3.16 | 269.36 | -57.18 | 88.97 | 0.8413 | -1055.5 | -280.2 | |
| 15 | -9 | 14 | -9 | 3.19 | 268.61 | -57.92 | 88.88 | 0.8483 | -794.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
