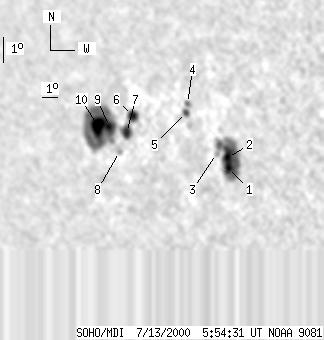

SOHO MDI 2000-07-13 05:54:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 61 | 353 | 51 | 288 | 2.93 | 271.43 | -52.73 | 89.58 | 0.7955 | -488.9 | -22.2 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-13 05:54:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5 | 106 | 4 | 77 | 2.00 | 276.95 | -47.21 | 91.20 | 0.7358 | 1112.1 | 737.2 | |
| 4 | -1 | 3 | -1 | 2.39 | 276.88 | -47.28 | 90.66 | 0.7364 | 1250.6 | 999999 | |
| 0 | 3 | 0 | 2 | 2.51 | 276.22 | -47.94 | 90.44 | 0.7440 | 437.0 | 414.6 | |
| 0 | 5 | 0 | 4 | 4.40 | 274.33 | -49.83 | 87.83 | 0.7647 | 452.0 | 322.4 | |
| 2 | 8 | 2 | 6 | 4.03 | 274.24 | -49.92 | 88.30 | 0.7658 | 387.2 | 288.2 | |
| 9 | 19 | 7 | 16 | 3.72 | 270.86 | -53.30 | 88.52 | 0.8026 | -791.3 | -603.7 | |
| 11 | 22 | 9 | 18 | 3.02 | 270.51 | -53.65 | 89.37 | 0.8065 | -595.8 | -393.8 | |
| 0 | 6 | 0 | 5 | 2.24 | 270.09 | -54.07 | 90.30 | 0.8113 | 132.0 | 29.3 | |
| 7 | 184 | 6 | 160 | 3.19 | 269.34 | -54.82 | 89.09 | 0.8184 | -1173.8 | -315.0 | |
| 23 | -9 | 20 | -9 | 3.14 | 268.57 | -55.59 | 89.10 | 0.8260 | -823.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
