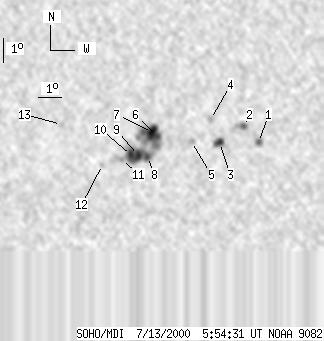

SOHO MDI 2000-07-13 05:54:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40 | 194 | 21 | 105 | -10.35 | 306.77 | -17.39 | 130.36 | 0.3868 | -406.8 | -443.5 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-13 05:54:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 8 | 0 | 4 | -10.21 | 310.89 | -13.27 | 137.61 | 0.3366 | -1174.0 | -779.5 | |
| 0 | 12 | 0 | 7 | -9.57 | 310.29 | -13.87 | 135.02 | 0.3358 | -1308.0 | -778.5 | |
| 6 | 13 | 3 | 7 | -10.24 | 309.27 | -14.89 | 134.39 | 0.3554 | -923.7 | -522.2 | |
| 0 | 6 | 0 | 3 | -9.31 | 308.93 | -15.22 | 131.80 | 0.3491 | 770.0 | 473.5 | |
| 0 | 6 | 0 | 3 | -10.22 | 308.10 | -16.06 | 132.20 | 0.3691 | 441.0 | 371.1 | |
| 3 | 135 | 2 | 73 | -10.05 | 306.68 | -17.48 | 129.46 | 0.3847 | 1236.2 | -448.9 | |
| 11 | -6 | 6 | -6 | -9.89 | 306.48 | -17.68 | 128.81 | 0.3856 | 1032.7 | 999999 | |
| 4 | -6 | 2 | -6 | -10.88 | 306.21 | -17.95 | 130.36 | 0.3989 | -1458.9 | 999999 | |
| 6 | -6 | 3 | -6 | -10.85 | 305.83 | -18.33 | 129.71 | 0.4033 | -1592.4 | 999999 | |
| 10 | -6 | 5 | -6 | -10.85 | 305.53 | -18.63 | 129.27 | 0.4070 | -1343.3 | 999999 | |
| 0 | 8 | 0 | 4 | -11.03 | 305.09 | -19.07 | 128.96 | 0.4141 | -663.0 | -574.8 | |
| 0 | 3 | 0 | 2 | -11.26 | 304.26 | -19.90 | 128.21 | 0.4266 | -474.0 | -411.2 | |
| 0 | 3 | 0 | 2 | -9.66 | 302.60 | -21.55 | 123.00 | 0.4336 | -588.0 | -493.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
