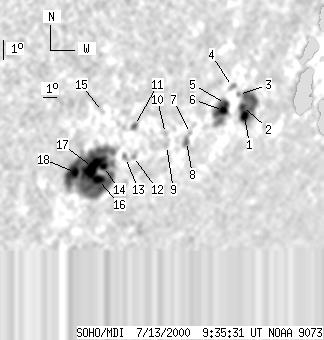

SOHO MDI 2000-07-13 09:35:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51 | 462 | 47 | 420 | -20.55 | 14.26 | 52.14 | 241.87 | 0.8382 | 237.7 | 151.2 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-13 09:35:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8 | 74 | 8 | 79 | -19.55 | 20.86 | 58.73 | 245.33 | 0.8883 | -489.9 | -97.6 | |
| 3 | -1 | 3 | -1 | -19.14 | 20.46 | 58.33 | 245.66 | 0.8844 | -769.8 | 999999 | |
| 0 | 3 | 0 | 3 | -18.58 | 19.84 | 57.71 | 246.08 | 0.8785 | -382.0 | -327.1 | |
| 0 | 7 | 0 | 7 | -18.20 | 19.17 | 57.04 | 246.31 | 0.8724 | -629.0 | -596.3 | |
| 2 | 52 | 2 | 53 | -18.91 | 19.00 | 56.87 | 245.47 | 0.8728 | -787.5 | -410.1 | |
| 6 | -5 | 7 | -5 | -19.21 | 19.00 | 56.88 | 245.14 | 0.8736 | -724.0 | 999999 | |
| 0 | 2 | 0 | 2 | -20.07 | 16.97 | 54.84 | 243.53 | 0.8599 | -536.0 | -554.2 | |
| 0 | 8 | 0 | 8 | -20.41 | 16.85 | 54.72 | 243.12 | 0.8599 | -142.0 | -382.0 | |
| 0 | 4 | 0 | 4 | -20.49 | 15.45 | 53.32 | 242.53 | 0.8488 | -448.0 | -346.7 | |
| 0 | 4 | 0 | 3 | -19.95 | 15.11 | 52.98 | 243.01 | 0.8444 | -160.0 | -175.9 | |
| 0 | 6 | 0 | 5 | -19.47 | 12.76 | 50.64 | 242.67 | 0.8227 | -94.0 | -279.0 | |
| 0 | 7 | 0 | 6 | -20.84 | 13.32 | 51.19 | 241.34 | 0.8322 | 251.0 | -5.3 | |
| 0 | 6 | 0 | 5 | -20.85 | 12.78 | 50.66 | 241.11 | 0.8276 | 369.0 | 237.6 | |
| 3 | 288 | 2 | 244 | -21.16 | 11.47 | 49.34 | 240.21 | 0.8174 | 521.6 | 425.7 | |
| 0 | 1 | 0 | 1 | -18.73 | 10.39 | 48.26 | 242.56 | 0.7985 | 619.0 | 571.3 | |
| 9 | -14 | 8 | -14 | -21.72 | 11.40 | 49.27 | 239.54 | 0.8189 | 577.5 | 999999 | |
| 16 | -14 | 14 | -14 | -21.16 | 10.75 | 48.63 | 239.90 | 0.8111 | 1086.3 | 999999 | |
| 4 | -14 | 3 | -14 | -21.32 | 9.74 | 47.61 | 239.26 | 0.8027 | 1293.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
