group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
9077	380	2533	199	1323	17.51	309.71	-12.42	41.67	0.3093	78.3	-124.1

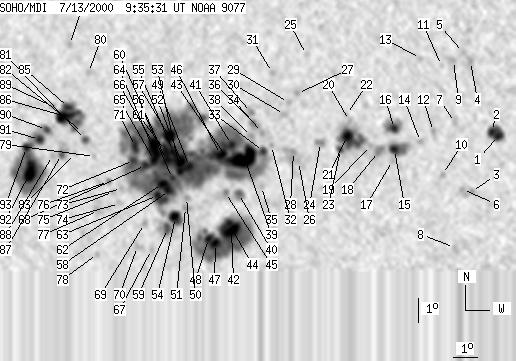

previous   or   next   observation for the same group / back to the solar disc SOHO MDI 2000-07-13 09:35:31 UT

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	9	36	5	18	18.77	322.42	0.30	358.89	0.2519	1536.2	970.6
2	5	-1	3	-1	18.94	322.13	0.00	0.00	0.2546	1414.7	999999
3	0	4	0	2	16.49	321.30	-0.82	3.72	0.2134	883.0	767.0
4	0	6	0	3	21.82	321.23	-0.89	2.74	0.3036	1004.0	926.8
5	0	6	0	3	22.20	320.93	-1.19	3.59	0.3101	521.0	611.8
6	0	11	0	5	16.57	320.93	-1.20	5.35	0.2153	999.0	879.7
7	0	8	0	4	19.30	320.62	-1.51	5.46	0.2621	875.0	754.2
8	0	9	0	5	14.23	320.62	-1.51	8.38	0.1760	842.0	560.1
9	0	7	0	4	21.86	320.51	-1.62	4.95	0.3051	1064.0	929.2
10	0	5	0	2	17.18	320.10	-2.03	8.59	0.2273	1110.0	859.6
11	0	4	0	2	21.65	320.00	-2.13	6.58	0.3024	832.0	716.4
12	0	4	0	2	18.93	319.70	-2.43	8.97	0.2578	1085.0	871.6
13	0	4	0	2	21.94	319.10	-3.03	9.16	0.3092	762.0	714.9
14	0	4	0	2	18.52	319.16	-2.96	11.24	0.2525	857.0	660.1
15	9	35	4	18	18.19	318.08	-4.04	15.53	0.2513	-1300.8	-534.4
16	7	32	4	17	19.05	318.06	-4.06	14.69	0.2654	-1312.3	-613.0
17	0	3	0	2	17.74	318.01	-4.12	16.32	0.2444	-820.0	-853.4
18	0	13	0	7	18.11	317.42	-4.71	18.03	0.2532	-1201.0	-1041.1
19	0	4	0	2	18.35	317.07	-5.05	18.92	0.2589	-921.0	-905.0
20	0	4	0	2	19.37	316.16	-5.97	20.59	0.2802	-604.0	-499.1
21	14	87	7	45	18.75	316.10	-6.03	21.64	0.2709	-1557.8	-1161.0
22	0	3	0	2	19.61	316.02	-6.10	20.68	0.2848	-497.0	-369.2
23	3	-21	1	-21	18.18	315.82	-6.30	23.40	0.2638	-1199.4	999999
24	0	9	0	5	18.45	314.97	-7.15	25.66	0.2740	-911.0	-952.5
25	0	5	0	3	22.07	314.20	-7.93	22.62	0.3337	-644.0	-575.7
26	0	3	0	1	17.67	314.08	-8.04	29.80	0.2694	991.0	964.1
27	0	4	0	2	20.46	313.90	-8.22	25.59	0.3116	720.0	686.6
28	0	13	0	6	18.08	313.85	-8.27	29.71	0.2772	1065.0	886.5
29	0	5	0	2	20.08	313.54	-8.59	27.14	0.3088	1054.0	820.3
30	0	8	0	4	19.59	313.40	-8.73	28.33	0.3027	869.0	651.7
31	0	4	0	2	21.31	312.78	-9.35	27.21	0.3324	770.0	700.9
32	0	3	0	2	18.31	312.91	-9.21	31.93	0.2886	828.0	653.8
33	4	1343	2	701	18.06	312.59	-9.54	33.31	0.2881	1013.5	211.9
34	0	5	0	2	18.84	312.50	-9.62	32.03	0.2996	1069.0	775.9
35	0	4	0	2	16.64	312.58	-9.55	36.40	0.2689	-697.0	-535.3
36	0	11	0	6	19.24	312.10	-10.03	32.33	0.3088	1193.0	983.0
37	0	9	0	4	19.65	311.99	-10.14	31.87	0.3154	831.0	643.0
38	0	5	0	2	18.67	312.05	-10.08	33.55	0.3014	948.0	758.5
39	40	-33	21	-33	17.81	311.80	-10.32	35.92	0.2921	1812.7	999999
40	3	14	1	7	16.34	311.63	-10.49	39.68	0.2749	-1225.1	-837.3
41	5	-33	3	-33	18.33	311.22	-10.91	36.30	0.3048	1411.8	999999
42	15	278	8	143	14.85	311.42	-10.71	44.14	0.2591	-2238.9	-918.4
43	3	-33	2	-33	17.72	311.13	-11.00	37.81	0.2977	1549.9	999999
44	6	-42	3	-42	15.17	311.28	-10.85	43.62	0.2645	-1359.8	999999
45	0	9	0	5	16.38	311.08	-11.04	41.00	0.2813	-1181.0	-965.7
46	13	-33	7	-33	17.92	310.78	-11.35	38.23	0.3039	1552.0	999999
47	7	-42	4	-42	14.31	310.78	-11.35	47.27	0.2607	-2001.0	999999
48	6	-42	3	-42	14.51	310.47	-11.65	47.43	0.2666	-1640.0	999999
49	8	-33	4	-33	17.41	309.50	-12.63	42.30	0.3114	-1631.6	999999
50	0	6	0	3	16.15	309.45	-12.67	45.38	0.2973	-947.0	-804.8
51	0	8	0	4	15.75	309.44	-12.69	46.45	0.2930	-1291.0	-841.4
52	6	-33	3	-33	17.57	309.14	-12.98	42.70	0.3172	1731.6	999999
53	6	-33	3	-33	17.20	309.13	-13.00	43.57	0.3131	-851.7	999999
54	14	25	7	13	15.33	309.04	-13.08	48.36	0.2934	-1328.0	-947.3
55	8	-33	4	-33	18.01	308.77	-13.36	42.51	0.3266	1838.2	999999
56	4	-33	2	-33	16.91	308.81	-13.32	44.92	0.3135	-1253.0	999999
57	15	-33	8	-33	18.62	308.55	-13.58	41.66	0.3362	1578.9	999999
58	8	-33	4	-33	16.42	308.72	-13.41	46.28	0.3092	-1812.4	999999
59	5	32	3	17	14.89	308.73	-13.39	50.20	0.2926	-1228.1	-767.8
60	10	-33	5	-33	17.64	308.50	-13.63	43.88	0.3254	1574.8	999999
61	10	-33	5	-33	18.04	308.42	-13.70	43.13	0.3309	1604.8	999999
62	10	-33	5	-33	16.70	308.40	-13.73	46.25	0.3160	-1382.1	999999
63	6	-33	3	-33	16.21	308.22	-13.90	47.79	0.3129	-1325.9	999999
64	13	-33	7	-33	17.99	307.95	-14.17	44.17	0.3356	1741.8	999999
65	7	-33	3	-33	17.63	307.98	-14.14	44.92	0.3312	1363.8	999999
66	11	-33	6	-33	18.32	307.88	-14.24	43.60	0.3401	1559.0	999999
67	0	3	0	2	14.03	308.11	-14.01	53.79	0.2924	-813.0	-629.1
68	5	-33	3	-33	17.42	307.62	-14.51	46.10	0.3332	1270.3	999999
69	0	5	0	3	15.07	307.75	-14.38	51.61	0.3072	-608.0	-505.7
70	0	9	0	5	14.14	307.52	-14.61	54.56	0.3015	-812.0	-718.8
71	7	-33	3	-33	18.18	307.12	-15.00	45.33	0.3474	1192.9	999999
72	6	-33	3	-33	17.61	307.08	-15.04	46.65	0.3416	1010.6	999999
73	0	6	0	3	16.47	306.66	-15.46	50.05	0.3349	-356.0	-294.7
74	0	6	0	3	15.86	306.63	-15.50	51.59	0.3294	-704.0	-708.9
75	0	5	0	3	16.34	306.33	-15.79	50.92	0.3379	-458.0	-361.2
76	0	5	0	2	16.74	306.08	-16.04	50.39	0.3450	-944.0	-784.1
77	0	9	0	5	15.56	305.75	-16.37	53.77	0.3381	-865.0	-695.6
78	0	4	0	2	13.83	305.84	-16.28	58.13	0.3219	-690.0	-565.4
79	0	3	0	2	17.74	305.39	-16.74	49.26	0.3636	-646.0	-558.1
80	0	7	0	4	21.18	304.75	-17.38	43.41	0.4069	667.0	481.7
81	3	9	2	5	18.43	304.93	-17.20	48.52	0.3761	-1100.3	-944.3
82	0	3	0	2	18.71	304.77	-17.36	48.18	0.3808	-991.0	-824.2
83	0	4	0	2	17.85	304.55	-17.58	50.34	0.3750	-595.0	-602.4
84	0	6	0	3	22.32	303.75	-18.38	42.91	0.4301	886.0	649.4
85	7	93	4	50	19.72	304.04	-18.09	47.26	0.3997	815.6	-332.8
86	20	-85	11	-85	19.35	303.95	-18.18	48.12	0.3970	-269.6	999999
87	3	24	2	13	17.79	303.94	-18.18	51.35	0.3821	-1322.5	-975.3
88	0	4	0	2	17.74	303.55	-18.57	52.00	0.3866	-972.0	-927.2
89	0	5	0	3	19.74	303.32	-18.80	48.24	0.4084	727.0	421.7
90	3	231	2	124	18.80	303.17	-18.96	50.34	0.4011	-275.1	-541.8
91	5	-90	3	-90	18.38	302.91	-19.22	51.55	0.4005	-1278.7	999999
92	25	-90	13	-90	17.07	302.66	-19.47	54.66	0.3922	-1763.2	999999
93	6	-90	3	-90	18.04	302.37	-19.75	52.96	0.4043	469.5	999999

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
