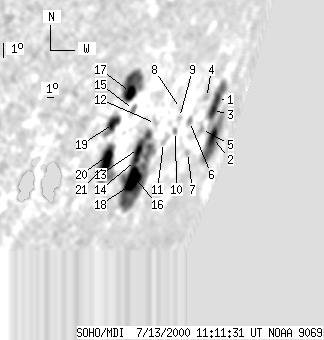

SOHO MDI 2000-07-13 11:11:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 115 | 597 | 198 | 1033 | -18.24 | 32.04 | 70.80 | 249.40 | 0.9551 | 271.3 | -7.9 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-13 11:11:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6 | 128 | 15 | 352 | -16.97 | 38.07 | 76.83 | 251.74 | 0.9816 | -191.2 | -25.0 | |
| 15 | -1 | 44 | -1 | -18.69 | 39.65 | 78.41 | 250.22 | 0.9869 | -17.6 | 999999 | |
| 9 | -1 | 22 | -1 | -17.41 | 37.74 | 76.50 | 251.25 | 0.9807 | -166.1 | 999999 | |
| 0 | 10 | 0 | 21 | -16.73 | 35.89 | 74.65 | 251.68 | 0.9739 | -449.0 | -242.7 | |
| 0 | 8 | 0 | 20 | -18.14 | 36.76 | 75.52 | 250.38 | 0.9778 | -359.0 | -336.4 | |
| 0 | 6 | 0 | 13 | -17.62 | 34.28 | 73.04 | 250.52 | 0.9681 | -194.0 | -186.2 | |
| 0 | 5 | 0 | 10 | -19.02 | 35.59 | 74.35 | 249.30 | 0.9742 | -289.0 | -254.2 | |
| 0 | 3 | 0 | 6 | -16.93 | 32.38 | 71.13 | 250.90 | 0.9592 | -352.0 | -353.0 | |
| 0 | 3 | 0 | 6 | -17.33 | 32.61 | 71.37 | 250.54 | 0.9606 | -602.0 | -559.4 | |
| 0 | 5 | 0 | 9 | -17.92 | 32.65 | 71.40 | 249.94 | 0.9613 | -205.0 | -248.2 | |
| 0 | 8 | 0 | 13 | -18.30 | 31.47 | 70.22 | 249.34 | 0.9562 | -409.0 | -447.6 | |
| 0 | 4 | 0 | 6 | -17.37 | 29.71 | 68.46 | 249.96 | 0.9464 | -446.0 | -463.2 | |
| 10 | 221 | 14 | 329 | -18.35 | 28.59 | 67.34 | 248.73 | 0.9414 | 207.7 | -148.1 | |
| 4 | -13 | 5 | -13 | -18.86 | 28.68 | 67.44 | 248.21 | 0.9426 | 559.9 | 999999 | |
| 0 | 8 | 0 | 10 | -16.58 | 26.77 | 65.52 | 250.20 | 0.9287 | 283.0 | 164.2 | |
| 31 | -13 | 47 | -13 | -19.53 | 29.02 | 67.78 | 247.59 | 0.9452 | 364.9 | 999999 | |
| 12 | 70 | 15 | 89 | -15.81 | 25.98 | 64.74 | 250.85 | 0.9228 | 804.2 | 383.1 | |
| -16 | -13 | -16 | -13 | -19.95 | 28.95 | 67.70 | 247.14 | 0.9453 | 999999 | 999999 | |
| 11 | 33 | 14 | 40 | -17.05 | 25.12 | 63.87 | 249.34 | 0.9190 | 750.8 | 481.9 | |
| 17 | 85 | 22 | 109 | -18.39 | 25.53 | 64.28 | 248.02 | 0.9236 | 760.4 | 251.7 | |
| -20 | -20 | -20 | -20 | -18.81 | 25.53 | 64.29 | 247.57 | 0.9243 | 999999 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
