group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
9077	385	2639	198	1372	17.53	309.76	-11.48	39.48	0.2993	52.3	-98.6

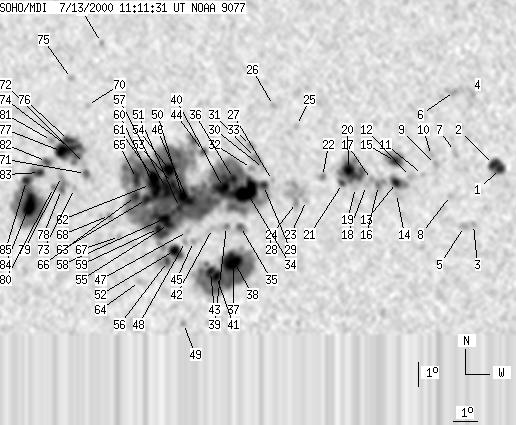

previous   or   next   observation for the same group / back to the solar disc SOHO MDI 2000-07-13 11:11:31 UT

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	8	35	4	18	18.78	322.46	1.21	355.43	0.2526	1521.0	979.3
2	10	-1	5	-1	18.94	322.16	0.92	356.56	0.2551	1395.1	999999
3	0	5	0	2	16.50	321.33	0.08	359.62	0.2130	840.0	752.7
4	0	9	0	5	21.83	321.29	0.04	359.86	0.3032	748.0	712.8
5	0	9	0	5	16.42	320.96	-0.29	1.31	0.2116	1008.0	874.8
6	0	10	0	5	21.95	320.52	-0.72	2.21	0.3055	827.0	832.8
7	0	9	0	5	19.47	320.53	-0.71	2.56	0.2639	749.0	697.3
8	0	4	0	2	17.68	320.37	-0.87	3.57	0.2335	769.0	659.6
9	0	5	0	3	18.94	319.74	-1.51	5.60	0.2558	787.0	816.3
10	0	9	0	4	19.31	319.57	-1.68	6.07	0.2623	861.0	737.3
11	0	3	0	1	18.53	319.20	-2.05	7.81	0.2500	796.0	680.0
12	0	4	0	2	18.45	318.70	-2.55	9.75	0.2499	116.0	137.4
13	7	29	4	15	18.20	318.12	-3.13	12.13	0.2476	-1235.1	-658.8
14	0	8	0	4	17.75	318.12	-3.12	12.51	0.2402	-1021.0	-716.5
15	9	37	4	19	19.06	318.06	-3.18	11.61	0.2620	-1383.6	-537.3
16	0	12	0	6	18.07	317.37	-3.87	15.05	0.2485	-1281.0	-1005.9
17	0	6	0	3	18.32	317.07	-4.17	15.86	0.2539	-1099.0	-868.1
18	0	2	0	1	18.07	316.87	-4.38	16.88	0.2508	-950.0	-831.5
19	0	3	0	1	17.99	316.41	-4.83	18.64	0.2518	-857.0	-683.9
20	12	90	6	46	18.72	316.10	-5.15	18.77	0.2652	-1676.1	-1118.3
21	3	-20	1	-20	18.15	315.86	-5.38	20.34	0.2575	-1297.4	999999
22	0	7	0	3	18.43	315.01	-6.23	22.77	0.2671	-1256.0	-931.0
23	0	5	0	3	17.44	314.38	-6.86	26.50	0.2566	759.0	633.0
24	0	48	0	25	17.36	313.97	-7.28	28.02	0.2585	1066.0	831.7
25	0	5	0	3	20.51	313.83	-7.42	23.32	0.3067	971.0	690.8
26	0	5	0	2	21.33	312.80	-8.44	24.93	0.3259	914.0	710.2
27	0	3	0	2	18.24	312.92	-8.32	29.56	0.2799	823.0	685.0
28	0	9	0	4	16.01	312.94	-8.31	34.19	0.2482	-824.0	-745.6
29	5	1423	3	741	18.04	312.55	-8.69	31.02	0.2801	905.0	204.2
30	0	5	0	2	18.73	312.52	-8.73	29.82	0.2903	934.0	735.4
31	0	13	0	7	19.18	312.15	-9.09	30.02	0.2996	1115.0	999.3
32	0	5	0	3	18.72	312.01	-9.24	31.23	0.2945	1073.0	779.4
33	0	9	0	5	19.67	311.91	-9.33	29.80	0.3086	877.0	702.6
34	41	-29	21	-29	17.78	311.85	-9.40	33.50	0.2829	1812.1	999999
35	2	15	1	8	16.36	311.67	-9.57	37.15	0.2654	-1169.2	-805.8
36	6	-29	3	-29	18.31	311.27	-9.97	34.00	0.2954	1436.2	999999
37	31	283	16	145	14.90	311.45	-9.80	41.51	0.2492	-2032.7	-858.7
38	-37	-37	-37	-37	15.14	311.35	-9.89	41.13	0.2532	999999	999999
39	0	5	0	3	16.35	311.08	-10.16	38.79	0.2714	-1284.0	-1175.5
40	12	-29	6	-29	17.93	310.87	-10.38	35.80	0.2942	1626.1	999999
41	7	-37	4	-37	14.33	310.77	-10.48	45.01	0.2502	-1997.4	999999
42	0	8	0	4	16.26	310.50	-10.74	40.54	0.2766	-670.0	-520.7
43	5	-37	3	-37	14.53	310.51	-10.74	45.12	0.2556	-1621.1	999999
44	3	-29	2	-29	19.39	309.92	-11.32	35.20	0.3226	-153.0	999999
45	0	5	0	2	15.73	309.73	-11.51	43.80	0.2787	-953.0	-858.3
46	21	-29	11	-29	17.34	309.42	-11.82	40.63	0.3016	471.7	999999
47	0	5	0	2	16.13	309.46	-11.79	43.44	0.2866	-1083.0	-910.3
48	0	5	0	3	15.72	309.40	-11.85	44.61	0.2826	-1218.0	-846.1
49	0	5	0	2	12.43	309.49	-11.76	54.18	0.2465	-661.0	-544.9
50	-46	-29	-46	-29	17.54	309.15	-12.09	40.79	0.3070	999999	999999
51	6	-29	3	-29	17.09	309.06	-12.19	42.04	0.3026	-975.0	999999
52	9	77	5	40	15.35	308.96	-12.29	46.60	0.2837	-1465.0	-803.5
53	6	-29	3	-29	18.07	308.73	-12.51	40.58	0.3179	1755.9	999999
54	13	-29	7	-29	18.64	308.52	-12.72	39.85	0.3271	1596.5	999999
55	8	-29	4	-29	16.40	308.64	-12.60	44.64	0.2993	-1889.6	999999
56	4	-52	2	-52	14.90	308.69	-12.55	48.40	0.2821	-1338.1	999999
57	14	-29	7	-29	17.82	308.45	-12.79	41.74	0.3179	1762.5	999999
58	10	-29	5	-29	16.64	308.45	-12.79	44.46	0.3042	-1553.7	999999
59	6	-29	3	-29	16.23	308.23	-13.02	45.94	0.3023	-1277.2	999999
60	12	-29	6	-29	17.77	308.03	-13.21	42.74	0.3221	1737.5	999999
61	16	-29	8	-29	18.34	307.86	-13.38	41.86	0.3307	1476.8	999999
62	5	-29	3	-29	18.01	307.76	-13.49	42.78	0.3280	1512.1	999999
63	6	-29	3	-29	17.40	307.63	-13.61	44.40	0.3224	1259.9	999999
64	0	3	0	2	14.08	307.56	-13.68	53.03	0.2884	-683.0	-672.4
65	12	-29	6	-29	18.25	307.14	-14.11	43.51	0.3377	1063.3	999999
66	6	-29	3	-29	17.51	307.15	-14.09	45.10	0.3292	912.8	999999
67	0	3	0	2	15.88	306.60	-14.65	50.05	0.3187	-1113.0	-912.1
68	0	6	0	3	16.72	306.10	-15.14	48.89	0.3334	-1061.0	-762.7
69	0	4	0	2	23.84	305.01	-16.23	37.12	0.4255	-850.0	-566.2
70	0	4	0	2	21.20	304.71	-16.54	42.04	0.3980	566.0	554.8
71	2	10	1	5	18.41	304.92	-16.33	47.17	0.3653	-1173.5	-822.0
72	0	6	0	3	18.82	304.83	-16.41	46.45	0.3706	-739.0	-713.8
73	0	4	0	2	17.79	304.50	-16.74	49.18	0.3640	-739.0	-633.6
74	6	99	3	53	19.38	304.20	-17.04	46.33	0.3838	43.2	-247.1
75	0	6	0	3	22.31	303.86	-17.39	41.45	0.4193	767.0	521.2
76	6	-74	3	-74	19.74	304.03	-17.21	45.88	0.3896	875.1	999999
77	14	-74	7	-74	19.29	303.77	-17.47	47.18	0.3879	-540.4	999999
78	0	15	0	8	17.73	303.94	-17.30	50.18	0.3705	-1440.0	-1148.7
79	0	13	0	7	18.26	303.88	-17.36	49.12	0.3763	-1070.0	-846.0
80	0	6	0	3	17.81	303.58	-17.66	50.56	0.3756	-1204.0	-951.9
81	0	6	0	3	19.73	303.28	-17.96	47.06	0.3982	405.0	448.8
82	4	13	2	7	18.86	303.16	-18.08	48.97	0.3910	197.6	-72.9
83	4	207	2	111	18.41	302.90	-18.34	50.28	0.3898	-1253.5	-567.7
84	28	-83	15	-83	17.09	302.61	-18.64	53.52	0.3815	-1744.4	999999
85	6	-83	3	-83	18.07	302.37	-18.87	51.75	0.3933	461.0	999999

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
