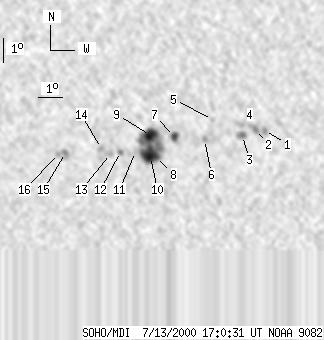

SOHO MDI 2000-07-13 17:00:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36 | 199 | 20 | 104 | -10.25 | 306.95 | -11.08 | 143.19 | 0.3154 | -297.4 | -307.0 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-13 17:00:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 7 | 0 | 4 | -9.63 | 311.11 | -6.92 | 153.65 | 0.2689 | -1134.0 | -748.0 | |
| 0 | 11 | 0 | 6 | -9.59 | 310.75 | -7.28 | 152.40 | 0.2711 | -1423.0 | -1023.0 | |
| 0 | 10 | 0 | 5 | -9.84 | 310.22 | -7.82 | 151.15 | 0.2790 | -920.0 | -676.5 | |
| 0 | 7 | 0 | 3 | -9.39 | 310.19 | -7.85 | 150.25 | 0.2727 | -715.0 | -691.3 | |
| 0 | 3 | 0 | 1 | -9.20 | 309.01 | -9.02 | 146.33 | 0.2803 | 443.0 | 355.2 | |
| 0 | 4 | 0 | 2 | -10.02 | 308.67 | -9.37 | 146.92 | 0.2950 | 879.0 | 607.8 | |
| 5 | 12 | 3 | 6 | -9.92 | 307.45 | -10.59 | 143.43 | 0.3052 | 1218.2 | 825.5 | |
| 18 | 114 | 10 | 60 | -10.75 | 306.64 | -11.40 | 143.02 | 0.3242 | -1602.9 | -334.9 | |
| 13 | -8 | 7 | -8 | -9.89 | 306.46 | -11.57 | 140.92 | 0.3148 | 953.1 | 999999 | |
| -8 | -8 | -8 | -8 | -10.75 | 306.43 | -11.60 | 142.54 | 0.3263 | 999999 | 999999 | |
| 0 | 4 | 0 | 2 | -10.55 | 305.82 | -12.21 | 140.73 | 0.3300 | -829.0 | -646.9 | |
| 0 | 4 | 0 | 2 | -10.56 | 305.20 | -12.83 | 139.36 | 0.3367 | -1217.0 | -887.8 | |
| 0 | 7 | 0 | 4 | -10.65 | 304.78 | -13.25 | 138.63 | 0.3423 | -777.0 | -735.4 | |
| 0 | 5 | 0 | 3 | -10.45 | 304.42 | -13.61 | 137.47 | 0.3439 | -1012.0 | -716.4 | |
| 0 | 6 | 0 | 3 | -10.65 | 302.91 | -15.12 | 134.86 | 0.3632 | 1165.0 | 832.1 | |
| 0 | 5 | 0 | 3 | -10.69 | 302.62 | -15.41 | 134.40 | 0.3672 | 749.0 | 630.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
