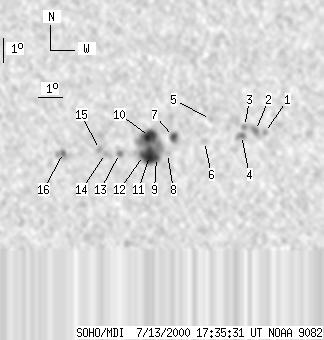

SOHO MDI 2000-07-13 17:35:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38 | 194 | 19 | 102 | -10.26 | 306.85 | -10.86 | 143.70 | 0.3132 | -451.9 | -268.8 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-13 17:35:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 4 | 0 | 2 | -9.66 | 311.15 | -6.56 | 154.91 | 0.2668 | -1134.0 | -813.8 | |
| 0 | 9 | 0 | 5 | -9.58 | 310.79 | -6.92 | 153.57 | 0.2682 | -1423.0 | -1077.2 | |
| 0 | 4 | 0 | 2 | -9.42 | 310.35 | -7.36 | 151.86 | 0.2693 | -948.0 | -783.1 | |
| 0 | 8 | 0 | 4 | -9.79 | 310.22 | -7.49 | 152.09 | 0.2758 | -920.0 | -709.3 | |
| 0 | 3 | 0 | 2 | -9.15 | 308.98 | -8.74 | 147.07 | 0.2771 | 443.0 | 279.9 | |
| 0 | 6 | 0 | 3 | -10.05 | 308.71 | -9.00 | 148.02 | 0.2922 | 879.0 | 539.9 | |
| 5 | 11 | 2 | 6 | -9.87 | 307.45 | -10.26 | 144.19 | 0.3013 | 1240.3 | 896.4 | |
| 0 | 3 | 0 | 2 | -10.57 | 307.18 | -10.53 | 144.84 | 0.3134 | -407.0 | -296.8 | |
| 4 | 118 | 2 | 62 | -10.74 | 306.72 | -10.99 | 144.01 | 0.3201 | -1556.8 | -323.4 | |
| 11 | -9 | 6 | -9 | -9.88 | 306.47 | -11.24 | 141.71 | 0.3114 | 983.0 | 999999 | |
| 16 | -9 | 8 | -9 | -10.66 | 306.44 | -11.27 | 143.16 | 0.3218 | -1539.9 | 999999 | |
| 2 | -9 | 1 | -9 | -10.66 | 306.19 | -11.52 | 142.57 | 0.3243 | -1410.5 | 999999 | |
| 0 | 5 | 0 | 2 | -10.60 | 305.21 | -12.51 | 140.16 | 0.3337 | -1217.0 | -898.7 | |
| 0 | 8 | 0 | 4 | -10.61 | 304.63 | -13.08 | 138.90 | 0.3400 | -1003.0 | -737.8 | |
| 0 | 5 | 0 | 3 | -10.45 | 304.39 | -13.33 | 138.06 | 0.3406 | -1012.0 | -719.1 | |
| 0 | 10 | 0 | 5 | -10.60 | 302.88 | -14.83 | 135.32 | 0.3593 | 1165.0 | 798.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
