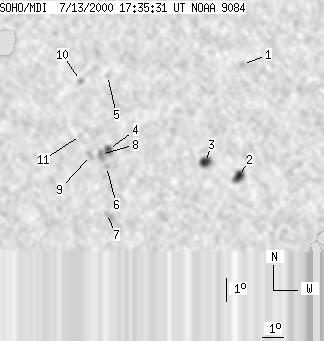

SOHO MDI 2000-07-13 17:35:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20 | 86 | 10 | 49 | 22.49 | 295.66 | -22.05 | 47.31 | 0.4729 | 221.8 | 332.5 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-13 17:35:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 3 | 0 | 2 | 26.45 | 299.07 | -18.64 | 36.93 | 0.4783 | -885.0 | -752.2 | |
| 8 | 18 | 4 | 10 | 21.73 | 299.59 | -18.12 | 43.61 | 0.4206 | 1070.1 | 685.0 | |
| 8 | 18 | 4 | 10 | 22.28 | 298.03 | -19.69 | 44.88 | 0.4436 | -1164.7 | -756.2 | |
| 4 | 9 | 2 | 5 | 22.70 | 293.47 | -24.24 | 49.63 | 0.4992 | 1043.4 | 716.4 | |
| 0 | 3 | 0 | 2 | 25.81 | 292.78 | -24.94 | 45.48 | 0.5344 | 685.0 | 626.7 | |
| 0 | 3 | 0 | 2 | 21.99 | 293.51 | -24.21 | 50.78 | 0.4927 | 806.0 | 607.7 | |
| 0 | 9 | 0 | 5 | 20.05 | 293.84 | -23.87 | 53.85 | 0.4728 | 735.0 | 789.4 | |
| 0 | 10 | 0 | 6 | 22.48 | 293.13 | -24.58 | 50.34 | 0.5012 | 869.0 | 727.0 | |
| 0 | 5 | 0 | 3 | 22.43 | 292.67 | -25.04 | 50.91 | 0.5061 | 673.0 | 577.5 | |
| 0 | 4 | 0 | 2 | 25.56 | 291.52 | -26.19 | 47.12 | 0.5455 | 856.0 | 735.6 | |
| 0 | 4 | 0 | 2 | 23.25 | 292.03 | -25.68 | 50.20 | 0.5203 | 581.0 | 472.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
