group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
9077	383	2290	198	1170	17.32	309.66	-5.40	21.79	0.2429	35.7	-35.4

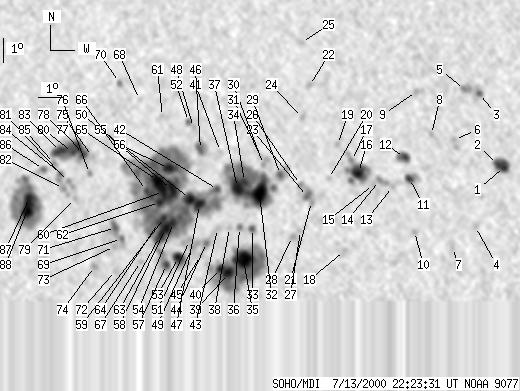

previous   or   next   observation for the same group / back to the solar disc SOHO MDI 2000-07-13 22:23:31 UT

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	10	32	5	16	18.75	322.36	7.30	334.31	0.2787	1445.9	942.8
2	5	-1	3	-1	18.83	322.07	7.01	335.34	0.2778	1491.6	999999
3	3	13	1	7	21.76	321.43	6.37	341.08	0.3190	1309.2	879.7
4	0	7	0	4	16.32	321.06	5.99	334.33	0.2324	1058.0	620.4
5	0	12	0	6	21.93	320.80	5.73	343.01	0.3184	1077.0	981.5
6	0	13	0	6	19.87	320.29	5.23	342.30	0.2833	757.0	686.8
7	0	10	0	5	15.48	320.08	5.02	336.51	0.2125	877.0	759.1
8	0	5	0	2	20.08	319.33	4.26	345.61	0.2822	925.0	785.6
9	0	11	0	6	21.86	318.74	3.67	348.85	0.3090	873.0	689.8
10	0	5	0	2	16.13	318.53	3.47	344.19	0.2141	532.0	533.5
11	6	19	3	10	18.28	318.36	3.30	347.26	0.2489	-1253.9	-586.0
12	7	19	4	10	19.14	318.17	3.11	348.70	0.2624	-1113.0	-854.0
13	0	4	0	2	17.96	317.65	2.58	349.71	0.2411	-1007.0	-850.5
14	0	12	0	6	18.21	317.11	2.05	351.97	0.2438	-1310.0	-985.8
15	0	4	0	2	18.04	316.86	1.79	352.86	0.2405	-1077.0	-987.6
16	13	64	6	33	18.54	316.24	1.17	355.49	0.2477	-1740.3	-1055.1
17	0	11	0	6	19.03	315.95	0.88	356.72	0.2557	-1001.0	-741.1
18	0	4	0	2	15.37	315.64	0.58	357.10	0.1931	-907.0	-731.0
19	0	4	0	2	19.68	315.36	0.30	358.95	0.2664	-764.0	-520.0
20	0	4	0	2	18.29	314.98	-0.08	0.32	0.2428	-685.0	-580.4
21	0	6	0	3	17.35	314.28	-0.79	3.32	0.2272	1086.0	818.7
22	0	6	0	3	22.12	314.17	-0.89	2.71	0.3077	-892.0	-758.2
23	2	12	1	6	17.56	314.11	-0.95	3.95	0.2308	1421.5	1293.1
24	0	4	0	2	20.79	313.88	-1.18	3.89	0.2858	1022.0	762.9
25	0	4	0	2	23.92	313.81	-1.25	3.41	0.3378	-952.0	-864.8
26	0	6	0	3	18.05	313.82	-1.25	4.98	0.2395	684.0	780.1
27	0	4	0	2	16.18	313.83	-1.23	5.74	0.2077	-818.0	-649.1
28	0	6	0	3	15.93	313.50	-1.56	7.41	0.2042	-995.0	-849.9
29	3	21	2	11	18.45	312.98	-2.08	8.03	0.2480	1399.1	878.9
30	0	10	0	5	18.86	312.26	-2.80	10.42	0.2567	875.0	691.5
31	0	3	0	1	19.23	312.13	-2.93	10.62	0.2633	674.0	618.2
32	33	259	17	132	17.67	312.12	-2.95	11.96	0.2375	1842.4	669.9
33	3	8	1	4	16.25	311.85	-3.22	14.57	0.2150	-1162.1	-805.2
34	6	-32	3	-32	18.16	311.48	-3.58	13.92	0.2480	1492.1	999999
35	33	277	17	140	15.00	311.50	-3.56	17.92	0.1961	-2075.3	-772.2
36	0	7	0	4	16.29	311.31	-3.75	16.82	0.2181	-1321.0	-996.0
37	23	-32	12	-32	17.91	311.19	-3.87	15.25	0.2452	1626.2	999999
38	0	4	0	2	16.29	310.90	-4.17	18.55	0.2202	-710.0	-705.3
39	10	-35	5	-35	14.43	310.89	-4.17	21.80	0.1905	-1954.1	999999
40	6	-35	3	-35	14.63	310.56	-4.50	22.93	0.1958	-1561.8	999999
41	0	1	0	1	19.38	310.45	-4.62	16.26	0.2724	460.0	484.7
42	3	854	2	437	17.83	310.36	-4.70	18.43	0.2479	1290.4	327.9
43	0	13	0	7	16.25	310.40	-4.66	20.64	0.2224	-798.0	-760.6
44	0	16	0	8	15.68	309.96	-5.10	23.44	0.2162	-1503.0	-1047.0
45	0	3	0	2	15.15	309.73	-5.34	25.47	0.2097	-986.0	-911.2
46	5	22	3	11	19.46	309.60	-5.46	18.93	0.2779	824.2	371.6
47	13	-42	6	-42	17.21	309.63	-5.43	22.02	0.2424	-1336.1	999999
48	0	4	0	2	20.36	309.27	-5.79	18.86	0.2940	-781.0	-544.9
49	0	10	0	5	15.51	309.39	-5.68	26.08	0.2178	-1148.0	-1007.4
50	13	-42	7	-42	17.45	309.21	-5.86	23.14	0.2489	1605.5	999999
51	0	10	0	5	15.75	309.26	-5.81	26.09	0.2224	-1069.0	-943.6
52	0	6	0	3	20.61	309.05	-6.01	19.23	0.2990	-725.0	-627.6
53	12	35	6	18	15.06	308.82	-6.24	29.29	0.2155	-1432.2	-711.5
54	8	-42	4	-42	16.48	308.57	-6.49	27.17	0.2386	-1564.1	999999
55	18	-42	9	-42	17.81	308.44	-6.62	25.13	0.2597	1903.8	999999
56	9	-42	5	-42	18.67	308.28	-6.78	24.23	0.2738	1484.5	999999
57	5	28	3	14	14.78	308.34	-6.73	31.86	0.2156	-1353.7	-995.5
58	23	-42	12	-42	16.23	308.25	-6.82	28.82	0.2375	-1503.4	999999
59	6	-42	3	-42	16.67	308.19	-6.87	28.10	0.2445	1143.6	999999
60	14	-42	7	-42	17.73	308.11	-6.96	26.36	0.2609	2074.2	999999
61	0	3	0	1	20.80	307.93	-7.13	22.18	0.3087	-497.0	-467.9
62	6	-42	3	-42	17.28	307.96	-7.10	27.68	0.2554	1647.2	999999
63	-58	-42	-58	-42	15.90	308.01	-7.05	30.36	0.2347	999999	999999
64	4	-42	2	-42	16.47	307.95	-7.12	29.35	0.2435	1221.0	999999
65	16	-42	8	-42	18.18	307.84	-7.22	26.44	0.2696	1655.5	999999
66	3	-42	2	-42	17.76	307.40	-7.67	28.57	0.2670	1182.8	999999
67	0	3	0	2	14.89	307.26	-7.80	35.45	0.2273	-999.0	-944.8
68	0	3	0	2	21.50	306.91	-8.15	24.00	0.3258	691.0	547.2
69	0	6	0	3	15.81	306.44	-8.63	35.79	0.2480	-1207.0	-1043.8
70	0	6	0	3	22.19	306.01	-9.06	25.32	0.3423	875.0	738.1
71	3	15	2	8	16.25	306.17	-8.90	35.55	0.2566	-1132.3	-1009.4
72	0	7	0	3	14.51	306.24	-8.82	39.82	0.2330	-854.0	-723.2
73	0	4	0	2	15.48	306.16	-8.91	37.46	0.2464	-1053.0	-912.9
74	0	7	0	3	14.67	305.36	-9.70	42.02	0.2446	-1067.0	-902.3
75	0	3	0	2	19.13	305.04	-10.02	32.62	0.3064	-976.0	-907.4
76	0	7	0	3	18.43	304.96	-10.11	34.18	0.2977	-930.0	-753.5
77	5	96	3	50	19.20	304.65	-10.41	33.45	0.3109	-746.8	-67.4
78	8	-77	4	-77	19.53	304.38	-10.69	33.52	0.3179	1073.1	999999
79	0	4	0	2	17.40	304.43	-10.64	37.70	0.2893	-916.0	-736.5
80	4	-77	2	-77	19.28	304.18	-10.88	34.46	0.3164	487.4	999999
81	0	10	0	5	18.09	304.09	-10.98	37.06	0.3016	-1092.0	-1030.2
82	0	12	0	6	17.80	303.89	-11.17	38.15	0.2999	-1106.0	-834.1
83	14	-77	7	-77	19.31	303.66	-11.40	35.62	0.3217	-436.9	999999
84	0	11	0	6	18.41	303.73	-11.34	37.26	0.3094	-1245.0	-1016.4
85	0	6	0	3	18.82	303.44	-11.62	37.10	0.3175	-288.0	-413.1
86	0	11	0	6	18.57	302.99	-12.07	38.65	0.3189	-1072.0	-790.3
87	11	184	6	95	17.42	302.48	-12.59	42.29	0.3104	-1475.9	-581.1
88	17	-87	9	-87	16.93	302.43	-12.64	43.54	0.3052	-1910.2	999999

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
