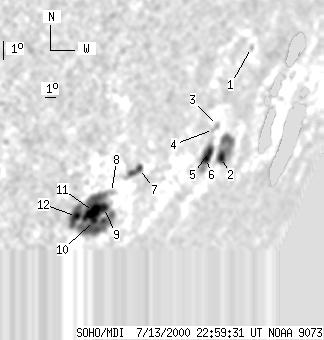

SOHO MDI 2000-07-13 22:59:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46 | 342 | 52 | 385 | -20.46 | 14.54 | 59.81 | 244.50 | 0.8964 | 132.4 | 99.1 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-13 22:59:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 3 | 0 | 4 | -15.00 | 20.67 | 65.94 | 251.94 | 0.9293 | -107.0 | -237.2 | |
| 7 | 58 | 10 | 81 | -19.65 | 20.87 | 66.14 | 247.09 | 0.9365 | -383.0 | -68.1 | |
| 0 | 4 | 0 | 5 | -18.18 | 19.35 | 64.62 | 248.29 | 0.9255 | -341.0 | -391.1 | |
| 0 | 2 | 0 | 3 | -18.33 | 19.07 | 64.33 | 248.07 | 0.9240 | -596.0 | -409.5 | |
| 4 | 42 | 6 | 56 | -19.29 | 19.36 | 64.63 | 247.13 | 0.9272 | -643.4 | -384.0 | |
| 6 | -5 | 8 | -5 | -19.58 | 19.29 | 64.55 | 246.80 | 0.9272 | -585.6 | 999999 | |
| 2 | 20 | 2 | 22 | -19.60 | 13.33 | 58.59 | 245.21 | 0.8875 | -531.4 | -359.2 | |
| 0 | 6 | 0 | 6 | -20.52 | 11.63 | 56.90 | 243.69 | 0.8772 | 229.0 | 223.0 | |
| 6 | 207 | 6 | 208 | -21.15 | 11.38 | 56.65 | 242.92 | 0.8769 | 504.0 | 364.8 | |
| 4 | -9 | 4 | -9 | -21.69 | 11.01 | 56.27 | 242.21 | 0.8755 | 504.1 | 999999 | |
| 12 | -9 | 12 | -9 | -21.28 | 10.68 | 55.95 | 242.55 | 0.8720 | 937.5 | 999999 | |
| 5 | -9 | 4 | -9 | -21.42 | 9.48 | 54.75 | 241.98 | 0.8632 | 1074.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
