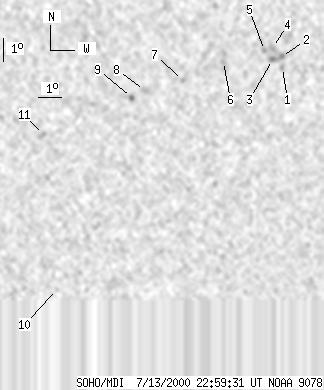

SOHO MDI 2000-07-13 22:59:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 66 | 0 | 35 | -14.04 | 322.07 | 7.34 | 201.88 | 0.3453 | -128.5 | -170.7 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-13 22:59:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 6 | 0 | 3 | -13.23 | 325.41 | 10.68 | 211.01 | 0.3516 | -885.0 | -657.9 | |
| 0 | 7 | 0 | 4 | -12.77 | 325.35 | 10.62 | 211.56 | 0.3447 | -1201.0 | -929.6 | |
| 0 | 7 | 0 | 4 | -12.89 | 324.98 | 10.25 | 210.49 | 0.3433 | -1006.0 | -867.2 | |
| 0 | 9 | 0 | 5 | -12.39 | 324.96 | 10.23 | 211.21 | 0.3361 | -1048.0 | -692.2 | |
| 0 | 4 | 0 | 2 | -12.51 | 324.64 | 9.90 | 210.22 | 0.3351 | -1011.0 | -963.1 | |
| 0 | 5 | 0 | 2 | -12.95 | 322.97 | 8.23 | 205.25 | 0.3286 | -696.0 | -640.9 | |
| 0 | 3 | 0 | 2 | -13.72 | 321.31 | 6.58 | 199.80 | 0.3299 | 1031.0 | 864.6 | |
| 0 | 9 | 0 | 5 | -14.13 | 319.76 | 5.03 | 195.06 | 0.3286 | 799.0 | 686.6 | |
| 0 | 5 | 0 | 2 | -14.42 | 319.23 | 4.50 | 193.33 | 0.3311 | 975.0 | 831.2 | |
| 0 | 3 | 0 | 2 | -22.67 | 316.23 | 1.50 | 183.05 | 0.4561 | 850.0 | 538.5 | |
| 0 | 8 | 0 | 4 | -15.96 | 315.64 | 0.91 | 182.51 | 0.3482 | 779.0 | 488.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
