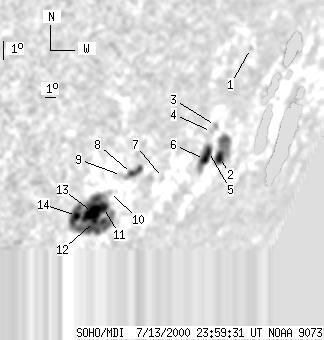

SOHO MDI 2000-07-13 23:59:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46 | 328 | 52 | 376 | -20.47 | 14.41 | 60.23 | 244.62 | 0.8993 | 181.7 | 104.5 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-13 23:59:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 2 | 0 | 3 | -15.04 | 20.77 | 66.59 | 252.02 | 0.9333 | -313.0 | -294.3 | |
| 8 | 51 | 11 | 73 | -19.64 | 20.85 | 66.67 | 247.22 | 0.9395 | -356.4 | -22.2 | |
| 0 | 5 | 0 | 7 | -18.17 | 19.30 | 65.12 | 248.42 | 0.9285 | -388.0 | -347.7 | |
| 0 | 3 | 0 | 4 | -18.41 | 19.07 | 64.89 | 248.11 | 0.9275 | -492.0 | -385.6 | |
| 5 | 40 | 7 | 54 | -19.28 | 19.42 | 65.24 | 247.27 | 0.9308 | -546.2 | -371.3 | |
| 6 | -5 | 7 | -5 | -19.61 | 19.27 | 65.09 | 246.89 | 0.9304 | -504.0 | 999999 | |
| 0 | 2 | 0 | 3 | -20.14 | 15.67 | 61.49 | 245.45 | 0.9088 | -174.0 | -312.8 | |
| 0 | 20 | 0 | 22 | -19.77 | 12.80 | 58.62 | 245.03 | 0.8881 | -437.0 | -393.0 | |
| 0 | 2 | 0 | 3 | -19.80 | 12.01 | 57.83 | 244.76 | 0.8824 | 242.0 | 101.2 | |
| 0 | 2 | 0 | 2 | -20.50 | 11.47 | 57.29 | 243.83 | 0.8800 | 246.0 | 244.6 | |
| 7 | 201 | 7 | 205 | -21.14 | 11.38 | 57.20 | 243.11 | 0.8810 | 479.9 | 364.0 | |
| 3 | -11 | 3 | -11 | -21.73 | 11.03 | 56.85 | 242.36 | 0.8799 | 469.0 | 999999 | |
| 13 | -11 | 13 | -11 | -21.31 | 10.62 | 56.44 | 242.68 | 0.8758 | 924.9 | 999999 | |
| 4 | -11 | 4 | -11 | -21.36 | 9.43 | 55.25 | 242.22 | 0.8669 | 1112.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
