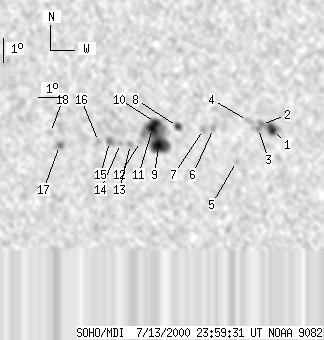

SOHO MDI 2000-07-13 23:59:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35 | 183 | 18 | 94 | -10.16 | 307.09 | -7.09 | 154.46 | 0.2805 | -374.9 | -345.4 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-13 23:59:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8 | 16 | 4 | 8 | -9.90 | 311.33 | -2.85 | 168.71 | 0.2514 | -1453.5 | -1038.6 | |
| 0 | 6 | 0 | 3 | -9.70 | 310.89 | -3.29 | 166.83 | 0.2496 | -963.0 | -840.3 | |
| 0 | 1 | 0 | 1 | -9.86 | 310.77 | -3.41 | 166.52 | 0.2528 | -968.0 | -968.0 | |
| 0 | 6 | 0 | 3 | -9.54 | 310.33 | -3.85 | 164.51 | 0.2493 | -526.0 | -581.9 | |
| 0 | 3 | 0 | 2 | -11.22 | 309.86 | -4.32 | 164.56 | 0.2788 | -804.0 | -721.2 | |
| 0 | 5 | 0 | 3 | -9.87 | 308.95 | -5.23 | 159.85 | 0.2618 | 964.0 | 674.0 | |
| 0 | 5 | 0 | 2 | -9.92 | 308.55 | -5.63 | 158.50 | 0.2649 | 675.0 | 662.7 | |
| 3 | 8 | 2 | 4 | -9.80 | 307.50 | -6.68 | 154.77 | 0.2702 | 944.9 | 732.1 | |
| 12 | 97 | 6 | 50 | -10.59 | 306.71 | -7.47 | 153.52 | 0.2878 | -1641.8 | -324.1 | |
| 6 | -9 | 3 | -9 | -9.65 | 306.61 | -7.57 | 151.64 | 0.2746 | 1384.2 | 999999 | |
| 6 | -9 | 3 | -9 | -9.89 | 306.49 | -7.70 | 151.67 | 0.2793 | 976.8 | 999999 | |
| 0 | 5 | 0 | 2 | -10.43 | 305.98 | -8.20 | 151.07 | 0.2912 | -562.0 | -685.4 | |
| 0 | 4 | 0 | 2 | -10.56 | 305.57 | -8.61 | 150.09 | 0.2964 | -1063.0 | -853.9 | |
| 0 | 3 | 0 | 2 | -10.52 | 305.17 | -9.01 | 148.87 | 0.2993 | -989.0 | -895.0 | |
| 0 | 8 | 0 | 4 | -10.45 | 304.72 | -9.46 | 147.50 | 0.3022 | -1193.0 | -955.3 | |
| 0 | 3 | 0 | 2 | -10.45 | 304.27 | -9.91 | 146.29 | 0.3063 | -705.0 | -750.7 | |
| 0 | 8 | 0 | 4 | -10.64 | 302.67 | -11.52 | 142.59 | 0.3243 | 1182.0 | 859.6 | |
| 0 | 5 | 0 | 2 | -10.11 | 302.32 | -11.87 | 140.72 | 0.3211 | -199.0 | -400.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
