group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
9077	324	2115	164	1073	17.11	309.46	-1.25	5.39	0.2220	28.8	14.0

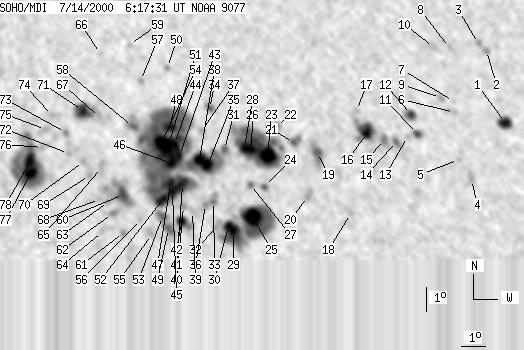

previous   or   next   observation for the same group / back to the solar disc SOHO MDI 2000-07-14 06:17:31 UT

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	12	27	6	14	18.81	322.22	11.52	323.06	0.3158	1331.7	816.1
2	0	6	0	3	21.78	321.62	10.92	329.70	0.3502	957.0	757.4
3	0	4	0	2	22.08	321.30	10.59	330.88	0.3516	683.0	610.5
4	0	11	0	6	16.51	320.65	9.94	322.02	0.2701	944.0	793.1
5	0	4	0	2	17.33	320.14	9.44	325.26	0.2760	572.0	675.1
6	0	4	0	2	19.24	320.08	9.37	329.22	0.3019	874.0	801.4
7	0	3	0	2	19.70	320.06	9.36	330.06	0.3081	618.0	564.4
8	0	4	0	2	21.92	320.03	9.33	333.62	0.3398	623.0	596.0
9	0	5	0	3	19.87	319.52	8.82	331.78	0.3062	683.0	765.5
10	0	13	0	7	21.93	319.34	8.64	335.32	0.3350	539.0	606.5
11	4	11	2	6	18.40	318.47	7.77	332.25	0.2766	-829.9	-651.8
12	5	16	3	8	19.18	318.26	7.55	334.21	0.2865	-978.9	-755.4
13	0	6	0	3	18.29	318.05	7.34	333.34	0.2716	-591.0	-540.1
14	0	8	0	4	18.09	317.58	6.87	334.47	0.2651	-1224.0	-1012.5
15	0	16	0	8	18.17	317.08	6.37	336.24	0.2629	-1228.0	-998.8
16	11	61	5	31	18.46	316.38	5.67	339.02	0.2629	-1606.7	-942.7
17	0	5	0	2	19.36	315.95	5.24	341.64	0.2747	-344.0	-474.9
18	0	5	0	2	15.19	315.58	4.87	336.49	0.2065	-775.0	-746.3
19	4	31	2	16	17.66	314.27	3.56	345.59	0.2392	1371.4	992.2
20	0	12	0	6	15.88	313.82	3.12	345.35	0.2079	-878.0	-711.1
21	3	17	1	9	18.07	313.28	2.57	349.81	0.2424	1194.1	862.5
22	0	9	0	4	18.73	312.58	1.87	352.90	0.2516	801.0	675.5
23	24	231	12	118	17.55	312.19	1.49	353.82	0.2309	1899.6	743.1
24	0	7	0	3	16.29	312.06	1.35	353.76	0.2093	-952.0	-747.4
25	28	239	14	120	15.08	311.56	0.85	355.59	0.1878	-1987.8	-761.5
26	11	-23	6	-23	17.75	311.53	0.82	356.62	0.2334	1843.4	999999
27	0	7	0	3	16.37	311.48	0.78	356.43	0.2099	-803.0	-776.1
28	11	-23	5	-23	17.87	311.24	0.53	357.83	0.2353	1448.8	999999
29	9	-25	4	-25	14.48	310.78	0.07	359.59	0.1769	-1782.1	999999
30	6	-25	3	-25	14.72	310.58	-0.13	0.70	0.1810	-1417.7	999999
31	2	16	1	8	17.79	310.41	-0.30	1.22	0.2338	882.2	505.3
32	0	12	0	6	14.68	310.09	-0.62	3.34	0.1806	-846.0	-728.7
33	0	13	0	7	15.68	309.96	-0.75	3.65	0.1981	-1121.0	-864.2
34	0	13	0	7	19.46	309.78	-0.93	3.36	0.2626	633.0	304.0
35	14	743	7	378	17.14	309.71	-1.00	4.30	0.2233	-1144.0	479.2
36	0	12	0	6	15.56	309.63	-1.07	5.30	0.1964	-1154.0	-969.4
37	0	6	0	3	18.56	309.45	-1.26	4.84	0.2478	545.0	473.9
38	9	-35	5	-35	17.38	309.37	-1.33	5.62	0.2279	1501.1	999999
39	0	10	0	5	15.28	309.10	-1.61	8.10	0.1927	-1033.0	-962.2
40	0	5	0	3	15.48	308.73	-1.98	9.76	0.1971	-1215.0	-1009.7
41	18	-35	9	-35	16.37	308.68	-2.03	9.24	0.2122	-982.4	999999
42	8	30	4	15	14.88	308.65	-2.05	10.71	0.1871	-1354.3	-745.4
43	7	-35	4	-35	17.54	308.54	-2.16	8.95	0.2324	1403.8	999999
44	13	-35	6	-35	18.03	308.33	-2.38	9.46	0.2412	1618.1	999999
45	9	-35	5	-35	16.08	308.27	-2.44	11.34	0.2087	-1147.8	999999
46	4	-35	2	-35	17.22	308.21	-2.49	10.55	0.2279	1928.9	999999
47	6	-35	3	-35	16.41	308.18	-2.52	11.41	0.2144	1038.0	999999
48	10	-35	5	-35	18.68	308.11	-2.60	9.82	0.2527	1334.7	999999
49	0	13	0	6	14.59	308.12	-2.58	13.75	0.1842	-1412.0	-1158.7
50	0	5	0	2	21.15	307.98	-2.72	8.70	0.2939	-437.0	-375.2
51	13	-35	7	-35	17.70	308.00	-2.71	11.00	0.2367	2083.8	999999
52	12	-35	6	-35	15.76	307.86	-2.84	13.54	0.2047	-1362.7	999999
53	3	15	1	8	15.08	307.87	-2.83	14.36	0.1933	-1333.5	-1017.8
54	18	-35	9	-35	18.07	307.79	-2.92	11.52	0.2435	1675.8	999999
55	0	8	0	4	14.35	307.43	-3.27	17.64	0.1834	154.0	-258.9
56	0	5	0	3	14.95	306.97	-3.73	18.84	0.1957	-729.0	-641.1
57	0	5	0	2	20.61	306.85	-3.85	12.65	0.2886	418.0	420.4
58	0	28	0	14	18.72	306.56	-4.14	15.40	0.2590	1019.0	452.8
59	0	3	0	2	22.09	306.34	-4.36	13.01	0.3146	576.0	485.4
60	9	81	5	41	15.95	306.25	-4.45	20.32	0.2160	-1005.5	-763.0
61	0	8	0	4	14.42	306.29	-4.42	23.06	0.1915	-921.0	-714.2
62	0	8	0	4	15.19	305.82	-4.89	23.57	0.2066	-1121.0	-926.1
63	0	5	0	2	15.67	305.64	-5.06	23.36	0.2153	-1003.0	-853.6
64	0	7	0	3	14.46	305.42	-5.28	26.85	0.1982	-911.0	-756.1
65	0	15	0	7	17.04	305.31	-5.39	22.19	0.2389	-513.0	-683.7
66	0	5	0	3	21.71	305.11	-5.59	16.85	0.3137	650.0	486.3
67	0	10	0	5	19.08	305.17	-5.54	19.70	0.2718	-823.0	-732.2
68	0	4	0	2	15.75	305.27	-5.44	24.72	0.2191	-756.0	-665.9
69	0	6	0	3	16.71	304.83	-5.88	24.56	0.2371	-914.0	-742.5
70	0	4	0	2	17.28	304.56	-6.15	24.50	0.2477	-922.0	-784.6
71	13	44	7	22	19.36	304.44	-6.26	21.63	0.2805	986.9	143.4
72	0	4	0	2	17.60	303.92	-6.78	26.10	0.2572	-749.0	-678.5
73	0	5	0	3	18.45	303.76	-6.94	25.14	0.2712	-1033.0	-879.7
74	0	3	0	2	19.14	303.18	-7.52	25.77	0.2857	-609.0	-517.8
75	0	12	0	6	18.57	302.92	-7.79	27.53	0.2792	-716.0	-568.5
76	0	5	0	2	17.83	302.82	-7.88	29.15	0.2692	-577.0	-547.7
77	11	185	6	95	16.77	302.37	-8.34	32.72	0.2580	-1824.8	-605.0
78	17	-77	9	-77	17.30	302.34	-8.36	31.67	0.2656	-1514.6	999999

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
