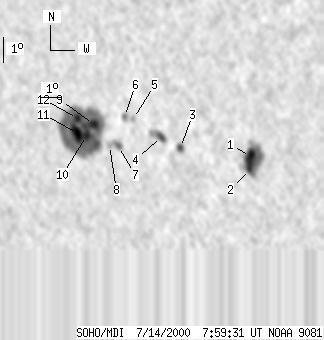

SOHO MDI 2000-07-14 07:59:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67 | 406 | 41 | 262 | 2.91 | 270.34 | -39.43 | 90.75 | 0.6357 | -246.4 | -210.8 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-14 07:59:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15 | 76 | 9 | 45 | 2.39 | 276.86 | -32.91 | 92.32 | 0.5454 | 1350.2 | 866.8 | |
| 5 | -1 | 3 | -1 | 1.87 | 276.82 | -32.95 | 93.26 | 0.5466 | 1030.5 | 999999 | |
| 4 | 8 | 2 | 5 | 2.60 | 273.47 | -36.29 | 91.53 | 0.5937 | 549.8 | 431.2 | |
| 6 | 19 | 3 | 12 | 2.99 | 272.52 | -37.25 | 90.78 | 0.6067 | 765.8 | 476.4 | |
| 0 | 5 | 0 | 3 | 3.64 | 271.08 | -38.69 | 89.61 | 0.6261 | -458.0 | -534.1 | |
| 0 | 6 | 0 | 4 | 3.69 | 270.62 | -39.15 | 89.49 | 0.6324 | -661.0 | -627.4 | |
| 0 | 9 | 0 | 6 | 2.49 | 270.36 | -39.41 | 91.36 | 0.6367 | -26.0 | -256.0 | |
| 0 | 4 | 0 | 3 | 2.51 | 269.90 | -39.87 | 91.29 | 0.6429 | -701.0 | -617.4 | |
| 9 | 279 | 6 | 184 | 3.30 | 269.03 | -40.74 | 89.99 | 0.6538 | -1310.6 | -514.2 | |
| 8 | -9 | 5 | -9 | 2.85 | 268.68 | -41.09 | 90.65 | 0.6587 | -1369.0 | 999999 | |
| 15 | -9 | 10 | -9 | 2.90 | 268.20 | -41.57 | 90.53 | 0.6650 | -1098.9 | 999999 | |
| 5 | -9 | 3 | -9 | 3.49 | 268.17 | -41.60 | 89.63 | 0.6649 | -957.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
