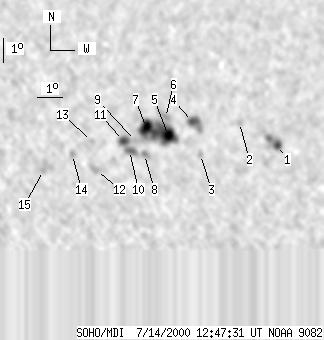

SOHO MDI 2000-07-14 12:47:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41 | 244 | 22 | 126 | -10.23 | 307.28 | 0.16 | 180.63 | 0.2551 | -299.9 | -246.7 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-14 12:47:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5 | 24 | 3 | 13 | -10.60 | 311.87 | 4.75 | 197.50 | 0.2717 | -1036.4 | -861.7 | |
| 0 | 4 | 0 | 2 | -9.65 | 310.32 | 3.20 | 192.82 | 0.2494 | -311.0 | -244.8 | |
| 0 | 5 | 0 | 2 | -10.96 | 308.76 | 1.64 | 186.09 | 0.2668 | -622.0 | -518.1 | |
| 4 | 22 | 2 | 11 | -9.61 | 308.44 | 1.32 | 185.36 | 0.2435 | 1114.2 | 832.9 | |
| 11 | 116 | 6 | 60 | -10.18 | 307.47 | 0.35 | 181.39 | 0.2522 | -1493.9 | -333.5 | |
| 0 | 13 | 0 | 7 | -9.44 | 307.35 | 0.23 | 180.96 | 0.2397 | 681.0 | 522.2 | |
| 15 | -5 | 8 | -5 | -9.85 | 306.59 | -0.53 | 177.88 | 0.2468 | 834.2 | 999999 | |
| 0 | 7 | 0 | 4 | -10.95 | 306.51 | -0.61 | 177.73 | 0.2656 | -608.0 | -324.5 | |
| 0 | 4 | 0 | 2 | -10.38 | 306.15 | -0.97 | 176.25 | 0.2562 | -869.0 | -704.1 | |
| 0 | 14 | 0 | 7 | -10.79 | 305.91 | -1.21 | 175.44 | 0.2634 | -739.0 | -753.1 | |
| 6 | 12 | 3 | 6 | -10.38 | 305.67 | -1.45 | 174.40 | 0.2569 | -1202.4 | -939.5 | |
| 0 | 11 | 0 | 6 | -11.62 | 304.57 | -2.55 | 171.00 | 0.2799 | 694.0 | 505.3 | |
| 0 | 3 | 0 | 2 | -10.43 | 304.38 | -2.74 | 169.55 | 0.2607 | -488.0 | -415.3 | |
| 0 | 5 | 0 | 2 | -10.96 | 303.61 | -3.51 | 167.17 | 0.2721 | -552.0 | -579.7 | |
| 0 | 4 | 0 | 2 | -11.63 | 302.42 | -4.70 | 163.76 | 0.2879 | 721.0 | 703.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
