group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
9077	282	2107	145	1079	16.92	308.98	6.27	334.23	0.2413	123.0	-4.6

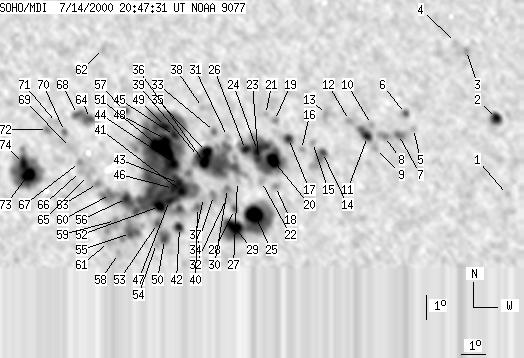

previous   or   next   observation for the same group / back to the solar disc SOHO MDI 2000-07-14 20:47:31 UT

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0	5	0	2	15.74	322.35	19.65	301.84	0.3826	605.0	400.8
2	9	21	5	11	18.83	322.21	19.51	308.73	0.4068	1087.1	771.3
3	0	6	0	3	21.65	321.24	18.53	315.48	0.4230	757.0	671.1
4	0	6	0	3	22.00	320.79	18.08	316.75	0.4217	210.0	337.8
5	0	3	0	2	18.50	318.54	15.83	313.61	0.3589	-440.0	-444.1
6	0	6	0	3	19.12	318.25	15.55	315.41	0.3622	-812.0	-676.9
7	0	12	0	7	18.27	317.87	15.16	314.30	0.3485	-1096.0	-897.2
8	0	13	0	7	18.20	317.26	14.55	315.27	0.3407	-1017.0	-833.2
9	0	7	0	4	17.72	316.83	14.13	315.02	0.3304	-752.0	-682.0
10	0	4	0	2	18.70	316.74	14.04	317.33	0.3405	-715.0	-632.4
11	7	27	3	14	18.21	316.53	13.82	316.71	0.3325	-1471.2	-979.0
12	0	7	0	3	18.88	315.81	13.11	319.59	0.3324	-803.0	-624.7
13	0	7	0	4	19.14	314.85	12.14	322.20	0.3256	-691.0	-598.5
14	3	34	2	18	17.60	314.57	11.86	319.57	0.3034	1072.6	1022.7
15	0	5	0	3	18.01	314.17	11.46	321.41	0.3043	815.0	670.3
16	0	4	0	2	17.73	313.69	10.98	321.98	0.2958	591.0	535.8
17	6	16	3	8	18.19	313.16	10.46	324.26	0.2965	1375.6	552.1
18	0	7	0	4	16.25	312.51	9.80	321.63	0.2645	-678.0	-503.0
19	0	6	0	3	18.93	312.62	9.91	327.14	0.3013	796.0	727.3
20	20	183	10	94	17.30	312.48	9.77	324.16	0.2780	1678.0	815.0
21	0	5	0	2	19.18	312.25	9.54	328.57	0.3015	656.0	598.1
22	0	7	0	3	16.46	311.94	9.23	323.77	0.2614	-385.0	-205.3
23	4	-20	2	-20	17.35	311.85	9.15	326.02	0.2727	566.1	999999
24	6	-20	3	-20	17.71	311.83	9.12	326.85	0.2775	1652.3	999999
25	26	195	13	100	15.13	311.58	8.88	321.48	0.2402	-1842.7	-691.3
26	6	-20	3	-20	17.76	311.33	8.62	328.39	0.2736	1344.7	999999
27	0	3	0	2	16.47	310.93	8.23	326.82	0.2519	-437.0	-326.8
28	0	7	0	3	15.34	310.76	8.06	324.65	0.2347	-1174.0	-945.6
29	17	-25	9	-25	14.65	310.74	8.03	322.92	0.2252	-1645.1	999999
30	0	10	0	5	16.19	310.51	7.80	327.56	0.2441	-861.0	-804.6
31	0	5	0	2	18.30	310.60	7.89	331.59	0.2752	578.0	440.5
32	0	8	0	4	15.79	310.45	7.74	326.81	0.2379	-926.0	-903.7
33	0	7	0	4	18.51	310.06	7.35	333.59	0.2741	1001.0	771.3
34	0	11	0	5	15.91	309.92	7.21	328.92	0.2348	-982.0	-887.3
35	13	187	7	96	17.70	309.69	6.98	333.33	0.2592	1123.3	28.7
36	11	-35	6	-35	17.25	309.59	6.88	332.83	0.2518	-772.3	999999
37	0	8	0	4	15.83	309.50	6.79	330.23	0.2301	-857.0	-887.4
38	0	2	0	1	19.49	309.60	6.89	336.57	0.2857	726.0	611.8
39	4	-35	2	-35	17.50	309.35	6.64	334.10	0.2536	1019.4	999999
40	0	11	0	6	15.43	309.24	6.53	330.27	0.2220	-1151.0	-1107.1
41	6	811	3	414	16.08	308.60	5.89	334.10	0.2267	-803.6	394.0
42	6	15	3	8	14.63	308.47	5.77	331.38	0.2039	-1154.0	-827.7
43	5	-41	2	-41	16.41	308.52	5.82	335.01	0.2311	1205.2	999999
44	8	-41	4	-41	17.22	308.34	5.63	337.13	0.2424	1751.9	999999
45	4	-41	2	-41	18.36	308.38	5.67	338.79	0.2603	949.8	999999
46	7	-41	4	-41	16.21	308.27	5.56	335.59	0.2262	1204.7	999999
47	5	-41	3	-41	15.72	308.09	5.38	335.35	0.2175	-841.2	999999
48	9	-41	5	-41	18.20	307.99	5.29	339.87	0.2556	1456.4	999999
49	7	-41	3	-41	18.73	308.01	5.30	340.55	0.2640	1296.2	999999
50	4	25	2	13	14.16	307.85	5.14	332.92	0.1916	-1352.1	-1008.3
51	33	-41	17	-41	17.79	307.86	5.15	339.77	0.2483	1992.0	999999
52	8	-41	4	-41	15.49	307.67	4.96	336.59	0.2109	-904.4	999999
53	2	16	1	8	14.80	307.57	4.87	335.61	0.1995	-1251.0	-999.7
54	0	4	0	2	14.00	307.52	4.81	334.05	0.1867	-962.0	-738.4
55	3	63	2	32	14.41	306.46	3.75	339.98	0.1860	128.9	-709.1
56	7	-41	4	-41	15.82	306.32	3.61	342.99	0.2082	-1319.8	999999
57	4	12	2	6	19.39	306.31	3.60	347.11	0.2668	960.5	593.9
58	0	8	0	4	13.61	305.96	3.25	341.02	0.1702	-775.0	-666.1
59	0	24	0	12	14.93	305.85	3.15	343.84	0.1914	-1158.0	-935.2
60	0	22	0	11	15.98	305.66	2.96	346.14	0.2079	-1507.0	-1140.7
61	0	10	0	5	14.05	305.56	2.85	343.97	0.1754	-1098.0	-909.8
62	0	6	0	3	21.95	305.47	2.77	351.56	0.3063	289.0	585.2
63	0	10	0	5	16.43	305.13	2.43	348.98	0.2134	-1217.0	-1048.3
64	3	35	1	18	19.07	304.88	2.17	351.96	0.2570	-455.1	319.1
65	0	15	0	8	16.75	304.77	2.06	350.87	0.2178	-974.0	-903.0
66	0	6	0	3	16.91	304.44	1.73	352.41	0.2197	-792.0	-773.4
67	0	6	0	3	17.28	304.40	1.69	352.79	0.2258	-978.0	-877.7
68	3	-64	2	-64	19.23	304.33	1.63	354.02	0.2587	989.7	999999
69	0	15	0	8	17.89	304.03	1.32	354.62	0.2354	-926.0	-777.1
70	0	5	0	3	18.54	303.79	1.08	355.82	0.2461	-768.0	-632.6
71	0	9	0	5	18.91	303.45	0.75	357.19	0.2520	-465.0	-440.3
72	0	7	0	4	18.62	303.08	0.37	358.58	0.2470	-1415.0	-960.3
73	16	138	8	70	16.79	302.29	-0.42	1.87	0.2158	-1815.3	-795.9
74	10	-73	5	-73	17.24	302.08	-0.63	2.69	0.2236	-1402.0	999999

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
