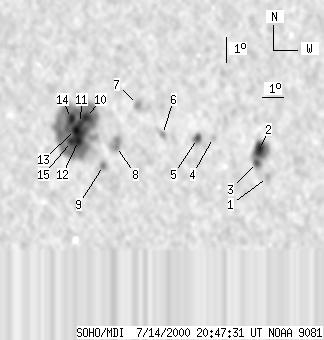

SOHO MDI 2000-07-14 20:47:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60 | 417 | 36 | 245 | 2.96 | 270.08 | -32.62 | 91.45 | 0.5401 | -349.6 | -342.9 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-14 20:47:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 6 | 0 | 3 | 1.40 | 277.26 | -25.44 | 95.95 | 0.4336 | 714.0 | 602.4 | |
| 14 | 53 | 8 | 29 | 2.50 | 276.89 | -25.81 | 93.35 | 0.4376 | 1281.2 | 760.1 | |
| 3 | -2 | 2 | -2 | 1.98 | 276.77 | -25.93 | 94.50 | 0.4403 | 994.4 | 999999 | |
| 0 | 6 | 0 | 3 | 2.90 | 274.84 | -27.87 | 92.11 | 0.4690 | 801.0 | 619.0 | |
| 4 | 11 | 3 | 6 | 2.84 | 274.12 | -28.58 | 92.14 | 0.4801 | 771.8 | 647.7 | |
| 0 | 6 | 0 | 3 | 2.94 | 272.53 | -30.18 | 91.72 | 0.5043 | 635.0 | 583.5 | |
| 0 | 8 | 0 | 5 | 4.08 | 271.33 | -31.38 | 89.38 | 0.5214 | -736.0 | -731.3 | |
| 0 | 18 | 0 | 11 | 2.38 | 270.41 | -32.30 | 92.51 | 0.5365 | 150.0 | -301.0 | |
| 0 | 7 | 0 | 4 | 1.60 | 269.81 | -32.89 | 93.85 | 0.5462 | 683.0 | 499.6 | |
| 11 | 302 | 7 | 181 | 3.46 | 268.95 | -33.75 | 90.35 | 0.5568 | -1333.4 | -609.9 | |
| 3 | -10 | 2 | -10 | 3.21 | 268.68 | -34.03 | 90.77 | 0.5610 | -1274.2 | 999999 | |
| 4 | -10 | 2 | -10 | 2.54 | 268.60 | -34.10 | 91.97 | 0.5626 | -1431.2 | 999999 | |
| 9 | -10 | 5 | -10 | 2.97 | 268.45 | -34.26 | 91.19 | 0.5645 | -1229.2 | 999999 | |
| 7 | -10 | 4 | -10 | 3.39 | 268.24 | -34.47 | 90.41 | 0.5672 | -992.7 | 999999 | |
| 5 | -10 | 3 | -10 | 2.48 | 268.27 | -34.44 | 92.02 | 0.5675 | -1049.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
