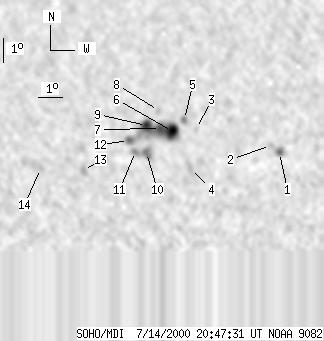

SOHO MDI 2000-07-14 20:47:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29 | 181 | 15 | 91 | -10.23 | 307.52 | 4.81 | 197.99 | 0.2678 | -391.1 | -336.6 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-14 20:47:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 8 | 0 | 4 | -10.86 | 312.21 | 9.50 | 211.73 | 0.3096 | -1002.0 | -951.8 | |
| 0 | 4 | 0 | 2 | -10.57 | 311.83 | 9.12 | 211.20 | 0.3022 | -687.0 | -627.3 | |
| 0 | 4 | 0 | 2 | -9.85 | 308.81 | 6.11 | 203.11 | 0.2682 | 420.0 | 354.4 | |
| 0 | 14 | 0 | 7 | -11.48 | 308.60 | 5.90 | 200.23 | 0.2924 | -664.0 | -476.6 | |
| 0 | 8 | 0 | 4 | -9.48 | 308.32 | 5.62 | 201.96 | 0.2593 | 564.0 | 369.7 | |
| 14 | 94 | 7 | 48 | -9.96 | 307.85 | 5.14 | 199.61 | 0.2641 | -1381.6 | -328.9 | |
| 6 | -6 | 3 | -6 | -9.84 | 307.36 | 4.65 | 198.03 | 0.2594 | -568.6 | 999999 | |
| 0 | 6 | 0 | 3 | -9.10 | 307.27 | 4.56 | 198.62 | 0.2471 | 392.0 | 324.7 | |
| 9 | -6 | 5 | -6 | -9.71 | 306.80 | 4.09 | 196.10 | 0.2546 | 1018.8 | 999999 | |
| 0 | 15 | 0 | 8 | -10.81 | 306.81 | 4.10 | 195.01 | 0.2726 | -1115.0 | -856.0 | |
| 0 | 7 | 0 | 3 | -10.77 | 306.37 | 3.66 | 193.49 | 0.2701 | -660.0 | -582.6 | |
| 0 | 10 | 0 | 5 | -10.32 | 306.08 | 3.37 | 192.84 | 0.2615 | -883.0 | -812.6 | |
| 0 | 8 | 0 | 4 | -11.54 | 304.28 | 1.57 | 185.58 | 0.2771 | 643.0 | 589.9 | |
| 0 | 3 | 0 | 1 | -11.46 | 302.54 | -0.17 | 179.40 | 0.2744 | 773.0 | 693.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
