group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
9077	307	2042	158	1053	17.02	309.15	9.09	325.37	0.2665	221.6	-20.7

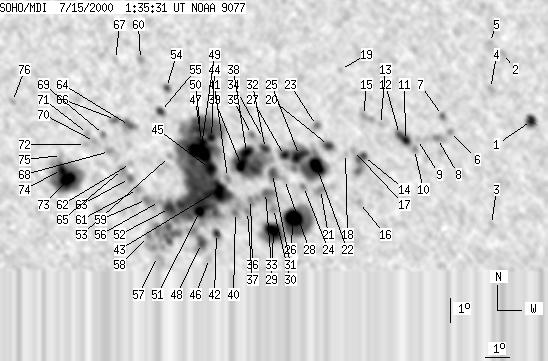

previous   or   next   observation for the same group / back to the solar disc SOHO MDI 2000-07-15 01:35:31 UT

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	9	20	5	11	18.86	322.21	22.15	305.53	0.4403	1063.4	711.1
2	0	8	0	4	21.65	321.35	21.29	311.74	0.4542	884.0	709.7
3	0	6	0	3	14.70	319.96	19.90	299.07	0.3783	748.0	625.6
4	0	6	0	3	20.22	320.55	20.49	310.13	0.4315	788.0	693.4
5	0	13	0	7	22.12	320.79	20.73	313.28	0.4522	523.0	638.3
6	0	5	0	3	18.50	318.56	18.50	309.41	0.3911	-603.0	-451.2
7	0	6	0	3	19.17	318.28	18.22	311.16	0.3940	-580.0	-579.2
8	0	11	0	6	18.23	317.96	17.90	309.70	0.3811	-1091.0	-833.9
9	0	3	0	2	18.21	317.08	17.02	310.99	0.3700	-785.0	-722.5
10	0	4	0	2	17.81	316.91	16.85	310.38	0.3639	-938.0	-808.2
11	7	25	3	13	18.18	316.56	16.50	311.77	0.3633	-1409.7	-985.1
12	3	-11	1	-11	18.43	316.32	16.26	312.70	0.3631	-1264.9	999999
13	0	5	0	3	18.86	315.54	15.48	314.94	0.3584	-729.0	-604.2
14	3	32	1	17	17.57	314.69	14.63	313.68	0.3344	1081.9	976.0
15	0	20	0	11	19.24	314.84	14.78	317.00	0.3546	-743.0	-645.0
16	0	6	0	3	15.71	314.38	14.32	309.78	0.3111	-813.0	-697.0
17	0	6	0	3	17.82	314.28	14.22	315.02	0.3324	609.0	578.2
18	0	3	0	2	17.70	313.93	13.87	315.45	0.3270	544.0	410.7
19	0	4	0	2	21.15	314.02	13.96	322.20	0.3686	553.0	456.5
20	5	16	3	8	18.04	313.23	13.17	317.63	0.3229	1126.6	858.4
21	0	10	0	5	16.26	312.76	12.71	314.45	0.2971	-265.0	-281.6
22	16	171	8	89	17.20	312.66	12.60	316.95	0.3066	1707.5	762.0
23	0	7	0	4	18.87	312.78	12.72	320.34	0.3279	1060.0	829.0
24	0	6	0	3	16.40	312.06	12.00	316.38	0.2903	-144.0	-249.9
25	15	-22	8	-22	17.66	311.97	11.91	319.55	0.3044	1570.2	999999
26	26	192	13	99	15.11	311.56	11.50	314.19	0.2697	-1796.5	-640.5
27	6	-22	3	-22	17.66	311.33	11.27	321.07	0.2978	1196.5	999999
28	0	6	0	3	16.69	311.27	11.21	318.97	0.2850	424.0	196.2
29	20	-26	10	-26	14.64	310.70	10.64	315.03	0.2539	-1549.9	999999
30	0	9	0	5	15.53	310.75	10.69	317.36	0.2650	-1112.0	-887.5
31	5	20	3	10	16.94	310.78	10.72	320.79	0.2828	448.6	429.2
32	5	165	3	85	17.96	310.55	10.49	323.66	0.2936	871.8	-46.4
33	0	18	0	9	16.18	310.45	10.39	319.82	0.2696	-1023.0	-955.5
34	0	6	0	3	18.37	310.49	10.43	324.67	0.2984	633.0	542.9
35	0	5	0	3	18.54	309.99	9.93	326.29	0.2959	995.0	807.5
36	0	19	0	9	15.90	309.81	9.75	320.89	0.2592	-860.0	-863.9
37	0	6	0	3	15.42	309.66	9.60	320.06	0.2515	-1084.0	-915.1
38	14	-32	7	-32	17.81	309.74	9.68	325.48	0.2837	1210.5	999999
39	9	-32	5	-32	17.28	309.50	9.44	325.01	0.2743	-966.1	999999
40	0	22	0	11	15.39	309.16	9.10	321.44	0.2457	-1304.0	-957.1
41	0	6	0	3	16.80	308.89	8.83	325.70	0.2619	1094.0	1026.2
42	4	11	2	6	14.55	308.34	8.28	321.75	0.2261	-1128.3	-757.5
43	36	788	18	404	16.24	308.36	8.30	326.02	0.2492	736.8	279.0
44	6	-43	3	-43	18.44	308.30	8.24	330.79	0.2797	1290.9	999999
45	16	-43	8	-43	17.18	308.15	8.09	328.74	0.2604	1748.7	999999
46	0	7	0	3	13.55	308.01	7.95	319.86	0.2096	-831.0	-712.2
47	8	-43	4	-43	18.28	307.87	7.81	331.77	0.2739	1496.6	999999
48	5	29	3	15	14.16	307.70	7.64	322.79	0.2143	-1266.6	-1000.7
49	33	-43	17	-43	17.83	307.81	7.75	331.13	0.2669	1890.5	999999
50	7	-43	4	-43	18.77	307.85	7.79	332.70	0.2810	1238.2	999999
51	7	-43	4	-43	15.44	307.67	7.61	326.38	0.2315	-912.4	999999
52	10	-43	5	-43	15.58	306.43	6.37	331.14	0.2225	-1206.0	999999
53	0	4	0	2	17.68	306.50	6.44	335.06	0.2547	638.0	464.0
54	2	8	1	4	20.50	306.49	6.43	339.30	0.2980	853.5	570.6
55	4	10	2	5	19.52	306.19	6.13	338.90	0.2810	830.1	607.7
56	0	4	0	2	15.86	306.03	5.97	333.30	0.2236	-1156.0	-1108.4
57	0	8	0	4	13.65	305.88	5.83	328.49	0.1896	-663.0	-734.5
58	0	39	0	20	14.46	305.54	5.48	332.12	0.1985	-1111.0	-907.4
59	0	22	0	11	15.95	305.49	5.43	335.55	0.2210	-1245.0	-1082.7
60	0	7	0	4	21.67	305.43	5.37	343.68	0.3107	767.0	741.8
61	0	7	0	4	16.35	305.13	5.07	337.73	0.2248	-1100.0	-1055.8
62	0	5	0	3	17.41	304.87	4.81	340.43	0.2399	-750.0	-652.5
63	0	8	0	4	16.80	304.81	4.75	339.73	0.2299	-1249.0	-1100.9
64	0	20	0	11	18.95	304.87	4.81	342.48	0.2647	-725.0	-229.0
65	0	8	0	4	17.17	304.53	4.47	341.37	0.2342	-1128.0	-1032.9
66	0	8	0	4	19.20	304.29	4.23	344.75	0.2660	1015.0	771.1
67	0	5	0	3	21.67	304.36	4.30	346.80	0.3063	702.0	580.2
68	0	9	0	4	17.90	304.01	3.95	344.32	0.2435	-1066.0	-901.4
69	0	6	0	3	18.59	303.77	3.71	345.94	0.2538	-726.0	-566.3
70	0	5	0	3	18.31	303.39	3.33	347.07	0.2476	-810.0	-683.4
71	0	6	0	3	18.64	303.10	3.04	348.43	0.2520	-866.0	-810.0
72	0	4	0	2	18.19	303.01	2.95	348.39	0.2443	-805.0	-672.1
73	17	139	9	71	16.77	302.25	2.19	350.32	0.2181	-1940.4	-767.0
74	9	-73	5	-73	17.18	302.00	1.94	351.66	0.2243	-1283.9	999999
75	0	4	0	2	17.74	302.01	1.95	352.01	0.2339	-536.0	-488.6
76	0	4	0	2	19.95	299.97	-0.09	0.31	0.2691	884.0	759.3

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
