group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
9077	303	2087	156	1079	17.14	309.11	9.94	324.24	0.2809	157.3	-30.0

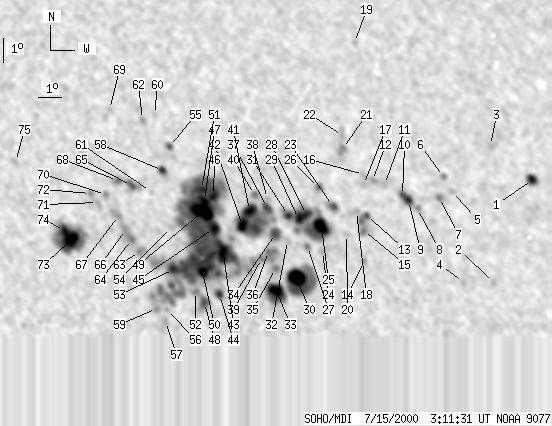

previous   or   next   observation for the same group / back to the solar disc SOHO MDI 2000-07-15 03:11:31 UT

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	7	20	4	11	18.88	322.20	23.02	304.63	0.4515	945.6	697.8
2	0	5	0	3	14.76	319.95	20.78	298.26	0.3911	766.0	651.5
3	0	6	0	3	20.33	320.50	21.32	309.29	0.4424	778.0	735.3
4	0	7	0	4	14.80	318.65	19.47	299.77	0.3729	720.0	856.7
5	0	6	0	3	18.49	318.56	19.38	308.15	0.4019	-552.0	-431.5
6	0	5	0	3	19.11	318.23	19.06	309.86	0.4036	-607.0	-553.4
7	0	6	0	3	18.26	317.96	18.78	308.48	0.3923	-1104.0	-922.0
8	0	6	0	3	17.83	316.95	17.77	309.02	0.3756	-1016.0	-767.9
9	6	25	3	13	18.17	316.59	17.41	310.28	0.3743	-1415.3	-957.6
10	2	-9	1	-9	18.38	316.35	17.17	311.10	0.3734	-1349.1	999999
11	0	6	0	3	18.84	315.61	16.44	313.26	0.3693	-835.0	-676.2
12	0	6	0	3	19.02	315.11	15.93	314.48	0.3652	-1017.0	-814.6
13	3	14	1	7	17.60	314.71	15.54	312.09	0.3456	880.5	939.3
14	0	5	0	3	15.78	314.48	15.30	308.16	0.3244	-933.0	-697.9
15	0	12	0	6	16.99	314.53	15.36	311.01	0.3371	1302.0	947.7
16	0	6	0	3	19.27	314.74	15.56	315.63	0.3638	-645.0	-584.6
17	0	4	0	2	18.86	314.70	15.52	314.86	0.3589	-645.0	-448.7
18	0	3	0	2	17.77	314.30	15.12	313.21	0.3424	503.0	594.9
19	0	5	0	3	24.75	314.97	15.79	324.78	0.4303	-634.0	-452.7
20	0	6	0	3	16.84	313.79	14.62	312.00	0.3265	582.0	440.6
21	0	11	0	6	20.35	313.93	14.76	319.22	0.3672	646.0	638.1
22	0	10	0	5	20.89	313.99	14.81	320.13	0.3741	149.0	398.2
23	4	13	2	7	17.99	313.33	14.15	315.52	0.3334	1031.8	843.2
24	0	17	0	9	16.17	312.72	13.55	312.45	0.3062	-385.0	-167.8
25	18	172	10	90	17.19	312.75	13.58	314.84	0.3177	1654.6	756.7
26	0	7	0	4	18.77	312.75	13.57	318.36	0.3359	958.0	847.8
27	0	7	0	3	16.39	312.10	12.93	314.27	0.3010	-204.0	-192.3
28	6	-25	3	-25	17.68	312.15	12.98	317.23	0.3164	1217.6	999999
29	9	-25	4	-25	17.53	311.80	12.62	317.64	0.3107	1387.5	999999
30	28	118	14	61	15.14	311.56	12.38	312.22	0.2808	-1728.4	-584.0
31	4	-25	2	-25	17.66	311.38	12.21	318.85	0.3076	1199.5	999999
32	0	4	0	2	16.64	311.27	12.10	316.73	0.2943	391.0	234.2
33	22	58	11	30	14.64	310.70	11.52	312.79	0.2644	-1565.1	-783.9
34	9	23	5	12	16.93	310.79	11.61	318.57	0.2923	522.0	416.8
35	0	15	0	8	15.52	310.70	11.53	315.22	0.2745	-1088.0	-723.4
36	0	32	0	16	16.21	310.45	11.27	317.63	0.2797	-1139.0	-905.6
37	4	162	2	84	17.99	310.52	11.34	321.62	0.3025	913.0	-69.0
38	0	3	0	2	18.36	310.54	11.36	322.34	0.3075	651.0	623.4
39	0	20	0	10	15.93	310.14	10.96	317.69	0.2729	-1134.0	-891.1
40	0	8	0	4	18.53	310.00	10.82	324.01	0.3043	949.0	747.8
41	15	-37	8	-37	17.88	309.75	10.57	323.28	0.2933	1091.2	999999
42	9	-37	5	-37	17.28	309.42	10.24	322.81	0.2821	-973.5	999999
43	16	930	8	478	16.16	308.56	9.39	322.53	0.2586	247.4	126.8
44	4	15	2	7	14.51	308.32	9.14	318.85	0.2349	-1134.4	-707.8
45	15	-43	8	-43	17.17	308.19	9.02	325.96	0.2687	1666.3	999999
46	10	-43	5	-43	18.51	308.26	9.09	328.51	0.2879	1200.5	999999
47	8	-43	4	-43	18.31	307.87	8.70	329.22	0.2817	1483.8	999999
48	6	26	3	13	14.19	307.69	8.51	319.92	0.2239	-1297.9	-932.3
49	34	-43	18	-43	17.87	307.77	8.59	328.65	0.2745	1924.0	999999
50	11	-43	6	-43	15.44	307.66	8.48	323.48	0.2399	-643.6	999999
51	9	-43	5	-43	18.76	307.77	8.59	330.35	0.2872	1212.9	999999
52	0	15	0	8	14.64	307.33	8.16	322.38	0.2259	-1133.0	-983.2
53	9	-43	5	-43	15.53	306.46	7.28	327.72	0.2297	-1186.4	999999
54	0	6	0	3	17.23	306.44	7.26	331.49	0.2541	336.0	186.7
55	0	8	0	4	20.54	306.50	7.32	336.78	0.3041	870.0	690.2
56	0	4	0	2	13.93	306.16	6.98	324.55	0.2043	-564.0	-467.4
57	0	7	0	4	13.45	306.06	6.89	323.48	0.1968	-892.0	-797.9
58	5	11	2	5	19.56	306.16	6.98	336.36	0.2869	925.1	533.0
59	0	7	0	4	13.97	305.71	6.53	326.44	0.2006	-1176.0	-1020.6
60	0	5	0	3	21.87	305.92	6.75	340.05	0.3209	651.0	492.1
61	0	4	0	2	18.70	305.62	6.44	336.74	0.2702	564.0	403.5
62	0	5	0	3	21.66	305.40	6.22	341.26	0.3149	1014.0	804.1
63	0	9	0	5	16.27	305.08	5.90	334.38	0.2292	-1067.0	-762.1
64	0	13	0	7	16.76	304.76	5.58	336.48	0.2345	-1235.0	-1012.3
65	3	13	2	7	18.95	304.83	5.65	339.66	0.2692	-122.5	-2.0
66	0	2	0	1	17.17	304.52	5.34	338.06	0.2392	-1085.0	-1126.9
67	0	15	0	8	17.74	304.25	5.07	339.95	0.2466	-1071.0	-882.3
68	0	9	0	5	19.16	304.25	5.07	341.86	0.2693	1029.0	756.5
69	0	3	0	1	22.09	304.00	4.83	345.61	0.3150	679.0	605.1
70	0	6	0	3	18.59	303.73	4.55	342.94	0.2575	-698.0	-547.1
71	0	9	0	5	18.27	303.38	4.21	343.78	0.2506	-782.0	-340.7
72	0	7	0	3	18.64	303.10	3.92	345.22	0.2553	-837.0	-669.9
73	19	118	9	60	16.77	302.27	3.10	346.41	0.2212	-1894.0	-816.3
74	8	-73	4	-73	17.14	301.99	2.81	347.98	0.2262	-1282.8	999999
75	0	7	0	4	19.96	299.97	0.80	357.20	0.2694	1006.0	713.6

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
