group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
9077	270	2062	138	1066	17.13	308.89	10.56	322.54	0.2867	11.3	-27.4

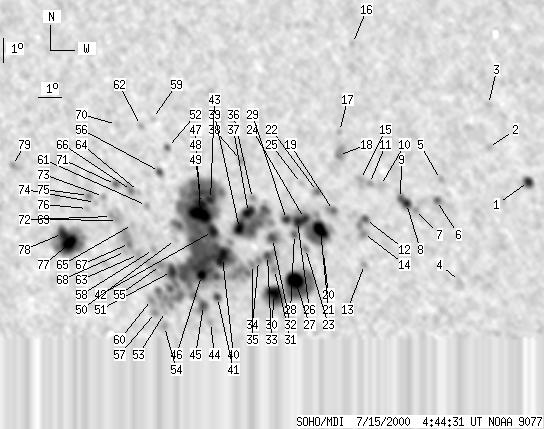

previous   or   next   observation for the same group / back to the solar disc SOHO MDI 2000-07-15 04:44:31 UT

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	7	17	4	9	18.91	322.16	23.84	303.83	0.4622	1037.1	729.4
2	0	6	0	3	20.35	320.56	22.23	308.25	0.4537	906.0	690.1
3	0	5	0	3	22.12	320.84	22.52	311.09	0.4727	734.0	660.0
4	0	14	0	7	14.95	318.59	20.27	299.22	0.3851	492.0	449.2
5	0	5	0	3	19.10	318.22	19.90	308.69	0.4138	-585.0	-447.2
6	0	9	0	5	18.25	317.94	19.62	307.32	0.4027	-1081.0	-833.4
7	0	5	0	2	17.90	316.97	18.65	307.90	0.3873	-924.0	-816.4
8	6	24	3	13	18.16	316.61	18.29	308.95	0.3850	-1291.4	-905.8
9	2	-8	1	-8	18.37	316.37	18.04	309.75	0.3840	-1338.5	999999
10	0	9	0	5	18.91	315.55	17.23	312.13	0.3794	-720.0	-607.6
11	0	6	0	3	19.01	315.08	16.76	313.07	0.3748	-883.0	-815.2
12	3	16	1	8	17.55	314.76	16.44	310.44	0.3561	895.4	862.7
13	0	6	0	3	15.73	314.56	16.24	306.47	0.3361	-785.0	-647.5
14	0	9	0	5	16.98	314.62	16.30	309.38	0.3488	1203.0	1039.0
15	0	12	0	7	19.18	314.70	16.38	314.04	0.3721	-729.0	-597.1
16	0	5	0	3	24.83	315.03	16.71	323.42	0.4396	-579.0	-533.9
17	0	4	0	2	21.17	313.99	15.67	319.09	0.3863	520.0	399.4
18	0	18	0	10	20.18	313.84	15.52	317.50	0.3734	799.0	488.5
19	0	15	0	8	17.94	313.41	15.09	313.63	0.3438	1110.0	817.3
20	0	4	0	2	16.21	312.84	14.52	310.61	0.3186	-233.0	-217.5
21	17	140	9	73	17.18	312.79	14.47	313.05	0.3282	1644.8	784.1
22	0	8	0	4	18.73	312.79	14.47	316.49	0.3452	1050.0	837.6
23	0	7	0	3	16.42	312.10	13.77	312.59	0.3116	-200.0	-44.7
24	6	-21	3	-21	17.64	312.14	13.82	315.37	0.3255	1189.6	999999
25	0	5	0	3	19.06	312.13	13.81	318.48	0.3418	567.0	392.3
26	8	-21	4	-21	17.52	311.84	13.52	315.72	0.3206	1364.9	999999
27	23	109	12	56	15.14	311.59	13.26	310.30	0.2917	-1802.2	-640.1
28	3	6	1	3	17.00	311.67	13.35	314.85	0.3128	340.8	276.9
29	6	-21	3	-21	17.61	311.37	13.05	316.89	0.3164	-381.7	999999
30	17	50	9	26	14.63	310.67	12.35	310.83	0.2748	-1660.5	-900.9
31	0	7	0	4	15.60	310.73	12.41	313.36	0.2859	-1330.0	-1036.8
32	6	21	3	11	16.85	310.73	12.41	316.52	0.3001	575.6	509.8
33	4	19	2	10	16.17	310.47	12.15	315.42	0.2893	-1165.1	-960.4
34	0	10	0	5	15.97	310.08	11.76	315.82	0.2824	-1158.0	-917.3
35	0	6	0	3	15.81	309.82	11.50	316.04	0.2775	-1005.0	-864.5
36	0	8	0	4	18.49	309.99	11.67	321.88	0.3121	1087.0	941.8
37	12	145	6	75	17.92	309.78	11.46	321.16	0.3028	1196.5	12.7
38	0	6	0	3	20.05	309.63	11.31	325.76	0.3289	776.0	816.7
39	11	-37	6	-37	17.28	309.36	11.04	320.75	0.2902	-957.1	999999
40	20	963	11	496	16.11	308.58	10.26	319.97	0.2672	221.0	163.3
41	4	12	2	6	14.50	308.29	9.97	316.41	0.2442	-1149.9	-705.4
42	8	-40	4	-40	17.17	308.22	9.90	323.47	0.2771	1713.8	999999
43	6	-40	3	-40	18.47	308.21	9.88	326.26	0.2944	1263.8	999999
44	0	6	0	3	13.51	307.96	9.64	314.30	0.2285	-840.0	-724.5
45	6	17	3	9	14.19	307.70	9.38	317.20	0.2335	-1365.3	-1115.9
46	6	-40	3	-40	15.40	307.67	9.35	320.70	0.2483	-1067.6	999999
47	32	-40	16	-40	17.87	307.75	9.43	326.26	0.2819	1907.4	999999
48	9	-40	5	-40	18.31	307.77	9.45	327.10	0.2883	1472.5	999999
49	6	-40	3	-40	18.72	307.80	9.48	327.83	0.2941	1238.9	999999
50	0	6	0	3	16.86	306.65	8.33	327.32	0.2579	98.0	204.3
51	10	-40	5	-40	15.57	306.43	8.11	325.00	0.2380	-1236.7	999999
52	0	6	0	3	20.62	306.50	8.18	334.54	0.3111	822.0	554.0
53	0	3	0	1	13.97	306.12	7.80	321.64	0.2132	-700.0	-607.7
54	0	7	0	3	13.37	306.06	7.74	319.98	0.2047	-1000.0	-837.8
55	0	33	0	17	15.82	305.98	7.66	327.08	0.2372	-1067.0	-916.0
56	3	11	2	5	19.64	306.11	7.79	334.12	0.2937	936.3	538.7
57	0	9	0	5	13.93	305.71	7.39	323.01	0.2084	-1233.0	-956.9
58	0	5	0	3	16.47	305.72	7.40	329.45	0.2440	-699.0	-627.0
59	0	4	0	2	21.83	305.92	7.60	337.72	0.3253	488.0	456.6
60	0	10	0	5	14.45	305.56	7.24	325.06	0.2141	-1162.0	-909.7
61	0	6	0	3	18.26	305.50	7.18	333.66	0.2686	321.0	261.2
62	0	5	0	2	21.54	305.39	7.07	338.77	0.3177	957.0	785.1
63	0	7	0	4	16.27	305.09	6.77	331.20	0.2359	-979.0	-874.5
64	0	3	0	1	18.83	305.19	6.86	335.59	0.2750	-605.0	-488.8
65	0	5	0	3	17.49	304.88	6.56	334.30	0.2525	-568.0	-600.0
66	0	10	0	5	18.87	304.89	6.57	336.58	0.2736	-312.0	-80.6
67	0	24	0	12	16.72	304.73	6.41	333.39	0.2397	-1361.0	-1083.6
68	0	6	0	3	16.40	304.55	6.23	333.39	0.2335	-942.0	-820.1
69	0	3	0	2	17.66	304.26	5.94	336.72	0.2507	-1192.0	-990.6
70	0	6	0	3	21.59	304.37	6.05	341.66	0.3127	688.0	627.4
71	0	7	0	4	19.12	304.23	5.91	339.06	0.2733	1093.0	770.0
72	0	7	0	3	17.82	304.02	5.70	337.84	0.2516	-1001.0	-899.3
73	0	5	0	3	18.64	303.71	5.39	340.10	0.2626	-489.0	-455.3
74	0	3	0	2	18.40	303.37	5.04	340.95	0.2568	-573.0	-647.8
75	0	7	0	4	18.68	303.08	4.76	342.31	0.2599	-870.0	-680.6
76	0	4	0	2	18.15	303.03	4.70	341.84	0.2511	-750.0	-621.2
77	20	119	10	61	16.74	302.24	3.92	342.93	0.2242	-1882.6	-782.1
78	9	-77	4	-77	17.14	301.96	3.64	344.60	0.2295	-1249.6	999999
79	0	7	0	4	19.92	299.92	1.59	354.41	0.2697	944.0	754.7

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
