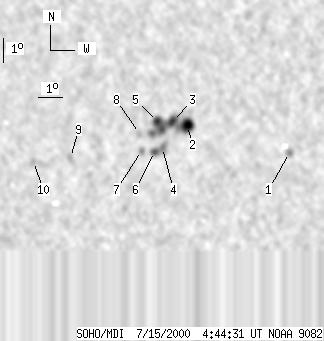

SOHO MDI 2000-07-15 04:44:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23 | 144 | 13 | 74 | -10.06 | 307.36 | 9.04 | 211.59 | 0.2962 | -544.3 | -455.7 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-15 04:44:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 8 | 0 | 4 | -10.95 | 312.48 | 14.16 | 222.42 | 0.3576 | -993.0 | -803.5 | |
| 11 | 95 | 6 | 49 | -9.77 | 308.24 | 9.92 | 214.80 | 0.2987 | -1415.0 | -438.6 | |
| 5 | -2 | 3 | -2 | -9.60 | 307.62 | 9.30 | 213.43 | 0.2906 | -261.0 | 999999 | |
| 0 | 10 | 0 | 5 | -10.66 | 307.25 | 8.92 | 210.45 | 0.3022 | -888.0 | -812.8 | |
| 5 | -2 | 3 | -2 | -9.59 | 307.01 | 8.69 | 211.68 | 0.2850 | 1058.0 | 999999 | |
| 2 | 6 | 1 | 3 | -10.82 | 306.93 | 8.60 | 209.27 | 0.3018 | -1050.2 | -913.1 | |
| 0 | 6 | 0 | 3 | -10.77 | 306.40 | 8.07 | 207.82 | 0.2969 | -646.0 | -559.2 | |
| 0 | 6 | 0 | 3 | -10.08 | 306.30 | 7.97 | 208.68 | 0.2859 | -530.0 | -434.4 | |
| 0 | 6 | 0 | 3 | -11.03 | 303.52 | 5.20 | 198.48 | 0.2820 | -628.0 | -609.9 | |
| 0 | 7 | 0 | 4 | -11.19 | 302.03 | 3.71 | 193.27 | 0.2776 | 786.0 | 649.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
