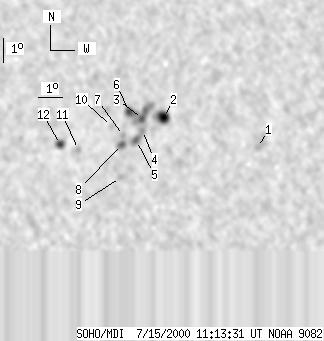

SOHO MDI 2000-07-15 11:13:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20 | 150 | 10 | 80 | -10.19 | 307.63 | 12.88 | 220.99 | 0.3354 | -470.2 | -467.9 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-15 11:13:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 11 | 0 | 6 | -11.05 | 312.60 | 17.86 | 228.78 | 0.4018 | -902.0 | -716.1 | |
| 10 | 26 | 5 | 14 | -9.73 | 308.60 | 13.86 | 224.18 | 0.3401 | -1291.3 | -924.9 | |
| 2 | 47 | 1 | 25 | -9.76 | 307.73 | 12.99 | 222.29 | 0.3307 | -891.5 | -164.4 | |
| 0 | 11 | 0 | 6 | -10.25 | 307.75 | 13.01 | 221.34 | 0.3369 | -1104.0 | -897.3 | |
| 0 | 14 | 0 | 7 | -10.65 | 307.52 | 12.78 | 220.04 | 0.3394 | -1206.0 | -793.7 | |
| 4 | -3 | 2 | -3 | -9.46 | 307.19 | 12.44 | 221.68 | 0.3210 | 791.4 | 999999 | |
| 0 | 6 | 0 | 3 | -10.44 | 306.98 | 12.23 | 219.23 | 0.3310 | -607.0 | -534.0 | |
| 0 | 10 | 0 | 5 | -10.81 | 306.91 | 12.17 | 218.37 | 0.3350 | -774.0 | -679.3 | |
| 0 | 4 | 0 | 2 | -12.17 | 306.93 | 12.19 | 215.97 | 0.3528 | -556.0 | -504.5 | |
| 0 | 5 | 0 | 3 | -10.06 | 306.47 | 11.73 | 218.78 | 0.3209 | -380.0 | -297.3 | |
| 0 | 5 | 0 | 3 | -10.99 | 305.15 | 10.41 | 213.80 | 0.3202 | -682.0 | -478.0 | |
| 4 | 11 | 2 | 6 | -10.77 | 304.41 | 9.66 | 212.24 | 0.3105 | 776.6 | 532.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
