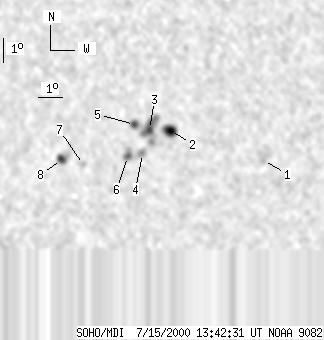

SOHO MDI 2000-07-15 13:42:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24 | 147 | 13 | 78 | -9.98 | 307.41 | 14.03 | 223.88 | 0.3458 | -424.2 | -385.1 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-15 13:42:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 4 | 0 | 2 | -11.03 | 312.76 | 19.38 | 231.10 | 0.4204 | -848.0 | -686.3 | |
| 9 | 26 | 5 | 14 | -9.71 | 308.76 | 15.39 | 227.21 | 0.3580 | -1423.4 | -920.9 | |
| 4 | 73 | 2 | 39 | -9.65 | 307.89 | 14.51 | 225.66 | 0.3469 | -939.5 | -293.6 | |
| 0 | 7 | 0 | 4 | -10.63 | 307.64 | 14.27 | 223.19 | 0.3554 | -897.0 | -737.0 | |
| 3 | -3 | 2 | -3 | -9.44 | 307.26 | 13.88 | 224.84 | 0.3371 | 861.4 | 999999 | |
| 2 | 14 | 1 | 7 | -10.74 | 307.02 | 13.65 | 221.72 | 0.3499 | -754.9 | -654.3 | |
| 0 | 5 | 0 | 3 | -11.04 | 305.22 | 11.85 | 217.18 | 0.3348 | -572.0 | -493.7 | |
| 6 | 18 | 3 | 9 | -10.82 | 304.31 | 10.93 | 215.40 | 0.3230 | 907.5 | 521.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
