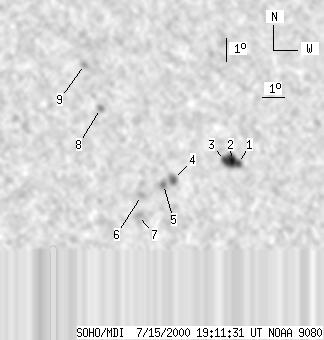

SOHO MDI 2000-07-15 19:11:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11 | 78 | 6 | 43 | 26.78 | 284.32 | -6.04 | 13.72 | 0.3941 | 1108.5 | 800.8 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-15 19:11:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3 | 35 | 2 | 19 | 26.79 | 286.85 | -3.50 | 8.17 | 0.3853 | 995.1 | 832.9 | |
| 6 | -1 | 3 | -1 | 26.92 | 286.53 | -3.82 | 8.84 | 0.3880 | 1261.3 | 999999 | |
| 2 | -1 | 1 | -1 | 26.92 | 286.27 | -4.09 | 9.45 | 0.3887 | 1128.5 | 999999 | |
| 0 | 13 | 0 | 7 | 26.09 | 284.00 | -6.36 | 15.09 | 0.3835 | 1158.0 | 856.4 | |
| 0 | 7 | 0 | 4 | 25.88 | 283.56 | -6.79 | 16.23 | 0.3820 | 1061.0 | 862.6 | |
| 0 | 6 | 0 | 3 | 25.40 | 282.62 | -7.73 | 18.76 | 0.3793 | 705.0 | 648.7 | |
| 0 | 7 | 0 | 4 | 24.55 | 282.54 | -7.81 | 19.77 | 0.3669 | 983.0 | 808.4 | |
| 0 | 5 | 0 | 3 | 29.11 | 280.48 | -9.87 | 19.73 | 0.4456 | 834.0 | 705.0 | |
| 0 | 5 | 0 | 3 | 31.03 | 279.53 | -10.82 | 19.75 | 0.4781 | 652.0 | 622.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
