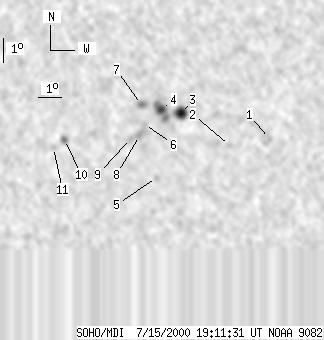

SOHO MDI 2000-07-15 19:11:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17 | 110 | 9 | 59 | -10.21 | 308.29 | 17.94 | 230.28 | 0.3951 | -1015.4 | -488.5 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-15 19:11:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 8 | 0 | 5 | -10.95 | 313.01 | 22.66 | 235.48 | 0.4610 | -690.0 | -572.6 | |
| 0 | 4 | 0 | 2 | -11.18 | 311.29 | 20.94 | 232.92 | 0.4414 | -747.0 | -600.9 | |
| 11 | 25 | 6 | 13 | -9.81 | 309.15 | 18.80 | 232.58 | 0.4014 | -1173.8 | -756.4 | |
| 6 | 31 | 3 | 17 | -9.63 | 308.29 | 17.94 | 231.67 | 0.3888 | -1193.3 | -857.7 | |
| 0 | 4 | 0 | 2 | -12.42 | 308.26 | 17.91 | 226.29 | 0.4172 | -484.0 | -407.3 | |
| 0 | 5 | 0 | 2 | -10.23 | 307.61 | 17.26 | 229.37 | 0.3863 | -675.0 | -623.7 | |
| 0 | 8 | 0 | 4 | -9.41 | 307.44 | 17.09 | 230.77 | 0.3758 | 813.0 | 561.5 | |
| 0 | 9 | 0 | 5 | -10.67 | 307.42 | 17.07 | 228.19 | 0.3887 | -842.0 | -769.0 | |
| 0 | 4 | 0 | 2 | -10.78 | 307.05 | 16.70 | 227.34 | 0.3855 | -555.0 | -403.6 | |
| 0 | 7 | 0 | 4 | -10.77 | 304.29 | 13.94 | 222.23 | 0.3537 | 1069.0 | 819.5 | |
| 0 | 5 | 0 | 3 | -11.09 | 303.85 | 13.50 | 220.71 | 0.3528 | 391.0 | 283.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
