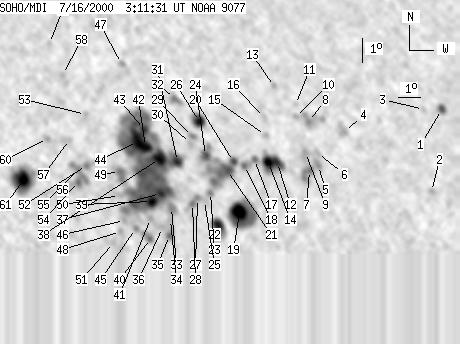

SOHO MDI 2000-07-16 03:11:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 183 | 1423 | 99 | 785 | 16.99 | 309.23 | 23.29 | 300.80 | 0.4408 | 128.3 | 147.2 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-16 03:11:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5 | 11 | 3 | 7 | 18.85 | 321.91 | 35.97 | 295.22 | 0.6167 | 679.6 | 512.0 | |
| 0 | 5 | 0 | 3 | 15.57 | 320.67 | 34.74 | 290.50 | 0.5882 | 751.0 | 650.7 | |
| 0 | 4 | 0 | 3 | 18.89 | 320.99 | 35.05 | 295.73 | 0.6054 | 684.0 | 496.1 | |
| 0 | 19 | 0 | 11 | 18.16 | 316.89 | 30.96 | 296.77 | 0.5496 | -839.0 | -650.0 | |
| 0 | 10 | 0 | 6 | 16.84 | 315.40 | 29.46 | 295.36 | 0.5230 | 969.0 | 886.7 | |
| 0 | 6 | 0 | 3 | 17.32 | 315.44 | 29.50 | 296.21 | 0.5260 | 525.0 | 458.3 | |
| 0 | 26 | 0 | 15 | 16.65 | 314.94 | 29.00 | 295.31 | 0.5159 | 1263.0 | 847.6 | |
| 0 | 38 | 0 | 22 | 18.64 | 315.25 | 29.31 | 298.65 | 0.5307 | -1017.0 | -744.3 | |
| 0 | 14 | 0 | 8 | 17.38 | 314.88 | 28.94 | 296.68 | 0.5189 | 700.0 | 678.2 | |
| 0 | 3 | 0 | 2 | 18.86 | 314.67 | 28.73 | 299.46 | 0.5245 | -630.0 | -571.9 | |
| 0 | 4 | 0 | 2 | 19.35 | 314.76 | 28.83 | 300.24 | 0.5286 | -593.0 | -499.4 | |
| 7 | 56 | 4 | 32 | 17.03 | 313.50 | 27.56 | 296.97 | 0.4984 | 739.5 | 713.7 | |
| 0 | 5 | 0 | 3 | 20.12 | 313.91 | 27.97 | 302.23 | 0.5227 | 640.0 | 542.3 | |
| 11 | -12 | 6 | -12 | 17.04 | 313.08 | 27.15 | 297.30 | 0.4929 | 1027.5 | 999999 | |
| 0 | 6 | 0 | 4 | 18.14 | 313.12 | 27.18 | 299.32 | 0.4999 | 781.0 | 685.3 | |
| 0 | 4 | 0 | 3 | 18.87 | 313.20 | 27.26 | 300.59 | 0.5056 | 748.0 | 677.0 | |
| 0 | 7 | 0 | 4 | 17.19 | 312.45 | 26.52 | 298.04 | 0.4852 | 447.0 | 526.6 | |
| 0 | 9 | 0 | 5 | 16.96 | 311.96 | 26.02 | 298.00 | 0.4772 | 627.0 | 601.9 | |
| 29 | 107 | 16 | 60 | 15.07 | 311.47 | 25.53 | 294.61 | 0.4596 | -1503.3 | -435.7 | |
| 4 | 97 | 2 | 54 | 17.14 | 311.48 | 25.54 | 298.73 | 0.4718 | 548.2 | 405.6 | |
| 8 | -20 | 4 | -20 | 16.78 | 311.15 | 25.22 | 298.30 | 0.4651 | 1016.5 | 999999 | |
| 10 | 40 | 5 | 22 | 14.58 | 310.46 | 24.52 | 294.33 | 0.4426 | -1376.2 | -710.0 | |
| 0 | 7 | 0 | 4 | 15.92 | 310.26 | 24.33 | 297.30 | 0.4476 | -879.0 | -882.0 | |
| 5 | 22 | 3 | 12 | 17.42 | 310.24 | 24.30 | 300.35 | 0.4569 | 1250.5 | 834.3 | |
| 0 | 6 | 0 | 3 | 15.61 | 309.95 | 24.02 | 296.90 | 0.4414 | -763.0 | -696.6 | |
| 11 | 26 | 6 | 15 | 18.81 | 310.17 | 24.23 | 303.12 | 0.4658 | 1070.4 | 735.5 | |
| 0 | 11 | 0 | 6 | 15.70 | 309.65 | 23.71 | 297.35 | 0.4377 | -967.0 | -814.7 | |
| 0 | 12 | 0 | 7 | 15.50 | 309.40 | 23.46 | 297.16 | 0.4330 | -1120.0 | -838.9 | |
| 0 | 6 | 0 | 3 | 18.21 | 309.76 | 23.82 | 302.35 | 0.4561 | 818.0 | 644.7 | |
| 0 | 8 | 0 | 4 | 17.93 | 309.63 | 23.69 | 301.93 | 0.4523 | 490.0 | 309.1 | |
| 7 | 561 | 4 | 307 | 17.22 | 308.94 | 23.01 | 301.17 | 0.4381 | -982.1 | 589.7 | |
| 0 | 13 | 0 | 7 | 19.78 | 309.18 | 23.24 | 305.96 | 0.4606 | -711.0 | -383.5 | |
| 0 | 11 | 0 | 6 | 15.37 | 308.45 | 22.51 | 297.73 | 0.4188 | -936.0 | -888.2 | |
| 0 | 4 | 0 | 2 | 14.89 | 308.35 | 22.41 | 296.75 | 0.4144 | -779.0 | -612.7 | |
| 0 | 10 | 0 | 5 | 14.25 | 308.24 | 22.30 | 295.41 | 0.4089 | -992.0 | -779.0 | |
| 0 | 5 | 0 | 3 | 14.58 | 307.96 | 22.03 | 296.41 | 0.4070 | -918.0 | -857.8 | |
| 6 | -31 | 3 | -31 | 15.95 | 308.03 | 22.09 | 299.40 | 0.4168 | -477.6 | 999999 | |
| 15 | -31 | 8 | -31 | 17.36 | 308.16 | 22.22 | 302.27 | 0.4286 | 1562.4 | 999999 | |
| 11 | -31 | 6 | -31 | 15.64 | 307.59 | 21.66 | 299.15 | 0.4086 | -426.3 | 999999 | |
| 0 | 14 | 0 | 8 | 14.15 | 307.39 | 21.45 | 295.96 | 0.3961 | -1127.0 | -1042.2 | |
| 0 | 4 | 0 | 2 | 14.95 | 307.47 | 21.54 | 297.73 | 0.4024 | -969.0 | -886.7 | |
| 29 | -31 | 16 | -31 | 17.87 | 307.59 | 21.66 | 303.92 | 0.4250 | 1711.2 | 999999 | |
| 7 | -31 | 4 | -31 | 18.56 | 307.64 | 21.70 | 305.27 | 0.4311 | 935.8 | 999999 | |
| -42 | -31 | -42 | -31 | 18.08 | 307.26 | 21.33 | 304.73 | 0.4224 | 999999 | 999999 | |
| 0 | 6 | 0 | 3 | 14.57 | 306.78 | 20.84 | 297.54 | 0.3900 | -1179.0 | -1017.6 | |
| 0 | 6 | 0 | 3 | 14.90 | 306.33 | 20.39 | 298.79 | 0.3859 | -1012.0 | -942.3 | |
| 0 | 6 | 0 | 3 | 21.29 | 306.99 | 21.05 | 311.25 | 0.4470 | 431.0 | 477.4 | |
| 0 | 4 | 0 | 2 | 14.47 | 306.11 | 20.18 | 297.99 | 0.3798 | -1030.0 | -926.2 | |
| 0 | 26 | 0 | 14 | 16.88 | 306.32 | 20.38 | 303.30 | 0.4004 | 135.0 | 72.6 | |
| 0 | 13 | 0 | 7 | 15.92 | 306.21 | 20.28 | 301.26 | 0.3915 | -636.0 | -671.9 | |
| 0 | 4 | 0 | 2 | 14.03 | 305.77 | 19.83 | 297.30 | 0.3720 | -859.0 | -851.9 | |
| 0 | 12 | 0 | 6 | 17.16 | 304.90 | 18.96 | 305.69 | 0.3839 | -928.0 | -802.5 | |
| 0 | 5 | 0 | 3 | 19.24 | 305.09 | 19.16 | 309.81 | 0.4050 | 808.0 | 686.6 | |
| 0 | 15 | 0 | 8 | 16.53 | 304.49 | 18.55 | 304.80 | 0.3730 | -1240.0 | -1020.6 | |
| 0 | 15 | 0 | 8 | 17.05 | 304.54 | 18.60 | 305.92 | 0.3782 | -1096.0 | -870.2 | |
| 0 | 10 | 0 | 5 | 16.41 | 304.17 | 18.23 | 304.97 | 0.3678 | -850.0 | -718.1 | |
| 0 | 11 | 0 | 6 | 18.24 | 304.27 | 18.33 | 308.89 | 0.3855 | -459.0 | -435.9 | |
| 0 | 5 | 0 | 3 | 20.90 | 304.28 | 18.34 | 314.20 | 0.4117 | 789.0 | 670.9 | |
| 0 | 4 | 0 | 2 | 22.20 | 303.86 | 17.93 | 317.16 | 0.4208 | 784.0 | 621.9 | |
| 0 | 6 | 0 | 3 | 18.30 | 303.31 | 17.38 | 310.44 | 0.3742 | -864.0 | -713.4 | |
| 18 | 84 | 9 | 44 | 16.66 | 302.12 | 16.18 | 308.63 | 0.3432 | -1692.9 | -761.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
