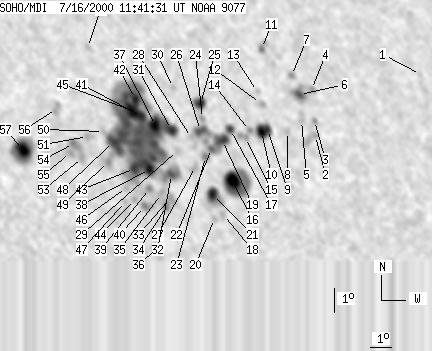

SOHO MDI 2000-07-16 11:41:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 190 | 1393 | 109 | 790 | 16.78 | 308.65 | 27.40 | 296.76 | 0.4947 | 39.0 | 179.1 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-16 11:41:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 3 | 0 | 2 | 18.95 | 321.78 | 40.53 | 293.46 | 0.6723 | 489.0 | 481.7 | |
| 0 | 22 | 0 | 14 | 16.74 | 315.71 | 34.47 | 292.50 | 0.5888 | 913.0 | 764.4 | |
| 0 | 4 | 0 | 2 | 17.35 | 315.79 | 34.54 | 293.46 | 0.5922 | 527.0 | 406.1 | |
| 0 | 6 | 0 | 4 | 18.61 | 315.92 | 34.68 | 295.42 | 0.5992 | -502.0 | -606.1 | |
| 0 | 13 | 0 | 8 | 17.38 | 315.15 | 33.90 | 293.81 | 0.5840 | 806.0 | 395.8 | |
| 6 | 28 | 4 | 17 | 18.43 | 315.28 | 34.03 | 295.47 | 0.5902 | -1199.6 | -905.1 | |
| 0 | 5 | 0 | 3 | 19.22 | 315.05 | 33.81 | 296.85 | 0.5910 | -513.0 | -461.3 | |
| 0 | 5 | 0 | 3 | 16.96 | 314.36 | 33.12 | 293.50 | 0.5720 | -215.0 | 7.9 | |
| 5 | 34 | 3 | 20 | 17.08 | 313.40 | 32.15 | 294.20 | 0.5599 | 590.3 | 618.1 | |
| 9 | -9 | 5 | -9 | 17.01 | 313.10 | 31.85 | 294.25 | 0.5555 | 1001.7 | 999999 | |
| 0 | 13 | 0 | 8 | 20.39 | 313.82 | 32.57 | 299.42 | 0.5815 | 606.0 | 548.7 | |
| 0 | 6 | 0 | 4 | 18.15 | 313.27 | 32.02 | 296.08 | 0.5631 | 867.0 | 705.6 | |
| 0 | 4 | 0 | 2 | 18.64 | 313.23 | 31.98 | 296.93 | 0.5650 | 654.0 | 537.0 | |
| 0 | 7 | 0 | 4 | 17.08 | 312.53 | 31.28 | 294.67 | 0.5482 | 513.0 | 468.4 | |
| 0 | 11 | 0 | 6 | 16.80 | 312.28 | 31.03 | 294.33 | 0.5437 | 468.0 | 489.8 | |
| 19 | 96 | 11 | 56 | 15.10 | 311.37 | 30.12 | 291.76 | 0.5237 | -1437.7 | -473.5 | |
| 5 | 9 | 3 | 5 | 17.15 | 311.62 | 30.37 | 295.32 | 0.5366 | 636.2 | 576.6 | |
| 0 | 7 | 0 | 4 | 13.75 | 310.75 | 29.50 | 289.56 | 0.5096 | 422.0 | 273.4 | |
| 11 | 62 | 6 | 36 | 16.73 | 311.16 | 29.91 | 294.83 | 0.5283 | 882.5 | 325.0 | |
| 0 | 6 | 0 | 3 | 13.61 | 310.31 | 29.06 | 289.50 | 0.5028 | 189.0 | 206.2 | |
| 12 | 35 | 7 | 20 | 14.57 | 310.35 | 29.10 | 291.32 | 0.5073 | -1239.7 | -671.7 | |
| 1 | -19 | 1 | -19 | 16.42 | 310.59 | 29.34 | 294.63 | 0.5191 | -659.8 | 999999 | |
| 0 | 7 | 0 | 4 | 16.11 | 310.25 | 29.01 | 294.26 | 0.5130 | -997.0 | -864.7 | |
| 0 | 6 | 0 | 4 | 17.65 | 310.37 | 29.12 | 296.99 | 0.5225 | 764.0 | 773.8 | |
| 7 | 22 | 4 | 13 | 18.26 | 310.39 | 29.14 | 298.07 | 0.5261 | 939.0 | 695.0 | |
| 7 | 18 | 4 | 10 | 17.17 | 310.19 | 28.95 | 296.24 | 0.5176 | 1195.3 | 1044.3 | |
| 0 | 11 | 0 | 6 | 15.73 | 309.72 | 28.48 | 293.87 | 0.5039 | -600.0 | -651.8 | |
| 0 | 3 | 0 | 1 | 16.90 | 309.72 | 28.47 | 296.06 | 0.5098 | 830.0 | 661.3 | |
| 0 | 8 | 0 | 5 | 16.40 | 308.99 | 27.74 | 295.62 | 0.4972 | 506.0 | 385.4 | |
| 0 | 4 | 0 | 2 | 18.96 | 309.23 | 27.98 | 300.13 | 0.5151 | 701.0 | 551.8 | |
| 10 | 685 | 6 | 386 | 17.26 | 308.84 | 27.59 | 297.33 | 0.4999 | -715.1 | 587.6 | |
| 6 | 34 | 3 | 19 | 15.44 | 308.57 | 27.32 | 294.06 | 0.4864 | -924.8 | -649.0 | |
| 0 | 15 | 0 | 8 | 14.52 | 308.39 | 27.14 | 292.36 | 0.4795 | -828.0 | -719.6 | |
| 0 | 11 | 0 | 6 | 14.17 | 308.16 | 26.91 | 291.79 | 0.4746 | -1087.0 | -795.9 | |
| 0 | 6 | 0 | 4 | 14.70 | 308.00 | 26.75 | 292.95 | 0.4748 | -1133.0 | -1026.7 | |
| 0 | 8 | 0 | 4 | 12.51 | 307.51 | 26.26 | 288.72 | 0.4580 | -914.0 | -747.9 | |
| 12 | -31 | 7 | -31 | 17.45 | 308.13 | 26.88 | 298.21 | 0.4914 | 1501.3 | 999999 | |
| 9 | -31 | 5 | -31 | 15.68 | 307.59 | 26.34 | 295.20 | 0.4740 | -295.7 | 999999 | |
| 0 | 14 | 0 | 8 | 14.92 | 307.48 | 26.23 | 293.74 | 0.4685 | -1037.0 | -863.9 | |
| 0 | 13 | 0 | 7 | 14.20 | 307.16 | 25.92 | 292.49 | 0.4604 | -877.0 | -938.8 | |
| 8 | -31 | 4 | -31 | 17.83 | 307.54 | 26.29 | 299.40 | 0.4859 | 1397.0 | 999999 | |
| 7 | -31 | 4 | -31 | 18.57 | 307.38 | 26.13 | 300.91 | 0.4886 | 1031.7 | 999999 | |
| 11 | -31 | 6 | -31 | 15.74 | 306.91 | 25.66 | 295.82 | 0.4649 | -379.3 | 999999 | |
| 0 | 5 | 0 | 3 | 14.50 | 306.75 | 25.50 | 293.39 | 0.4560 | -1173.0 | -1035.5 | |
| 17 | -31 | 10 | -31 | 18.09 | 307.12 | 25.87 | 300.23 | 0.4820 | 1725.0 | 999999 | |
| 0 | 4 | 0 | 2 | 14.99 | 306.45 | 25.20 | 294.63 | 0.4543 | -998.0 | -866.0 | |
| 0 | 4 | 0 | 2 | 14.43 | 306.33 | 25.08 | 293.54 | 0.4497 | -804.0 | -700.3 | |
| 12 | -31 | 7 | -31 | 16.86 | 306.11 | 24.86 | 298.70 | 0.4605 | 265.2 | 999999 | |
| 0 | 7 | 0 | 4 | 16.06 | 305.77 | 24.52 | 297.37 | 0.4510 | -808.0 | -743.5 | |
| 0 | 6 | 0 | 3 | 17.28 | 305.71 | 24.46 | 299.88 | 0.4579 | -147.0 | -211.9 | |
| 0 | 5 | 0 | 3 | 17.10 | 304.96 | 23.71 | 300.21 | 0.4465 | -929.0 | -827.0 | |
| 0 | 5 | 0 | 3 | 20.73 | 305.51 | 24.26 | 306.58 | 0.4805 | 554.0 | 634.5 | |
| 0 | 9 | 0 | 5 | 16.26 | 304.62 | 23.37 | 298.78 | 0.4364 | -985.0 | -809.7 | |
| 0 | 15 | 0 | 8 | 16.84 | 304.29 | 23.04 | 300.30 | 0.4357 | -944.0 | -890.7 | |
| 0 | 8 | 0 | 4 | 16.48 | 304.11 | 22.86 | 299.72 | 0.4308 | -852.0 | -800.7 | |
| 0 | 12 | 0 | 6 | 18.28 | 303.72 | 22.47 | 303.81 | 0.4386 | -680.0 | -554.8 | |
| 16 | 72 | 9 | 39 | 16.66 | 302.04 | 20.79 | 302.27 | 0.4039 | -1677.4 | -792.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
