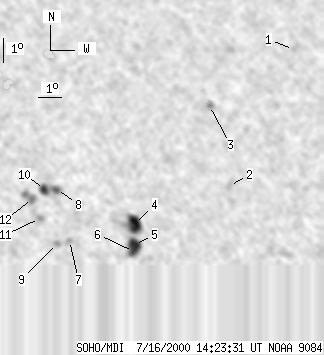

SOHO MDI 2000-07-16 14:23:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41 | 171 | 21 | 88 | 20.79 | 288.90 | 9.14 | 332.71 | 0.3204 | 691.8 | 148.5 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-16 14:23:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 11 | 0 | 6 | 27.07 | 297.16 | 17.40 | 325.40 | 0.4708 | -836.0 | -573.7 | |
| 0 | 9 | 0 | 5 | 21.41 | 293.56 | 13.80 | 322.76 | 0.3684 | 627.0 | 579.1 | |
| 0 | 8 | 0 | 4 | 24.77 | 293.02 | 13.26 | 329.05 | 0.4067 | 914.0 | 653.9 | |
| 17 | 42 | 9 | 22 | 19.87 | 289.34 | 9.58 | 329.45 | 0.3092 | 1121.0 | 570.5 | |
| 11 | 37 | 6 | 19 | 19.05 | 289.29 | 9.53 | 328.10 | 0.2973 | 1265.0 | 843.5 | |
| 4 | -5 | 2 | -5 | 18.77 | 289.23 | 9.47 | 327.71 | 0.2929 | 1197.1 | 999999 | |
| 0 | 7 | 0 | 3 | 19.25 | 286.55 | 6.79 | 336.29 | 0.2787 | 279.0 | 409.8 | |
| 3 | 28 | 1 | 14 | 21.35 | 286.08 | 6.33 | 340.47 | 0.3083 | -1076.8 | -868.2 | |
| 0 | 6 | 0 | 3 | 19.13 | 285.99 | 6.24 | 337.84 | 0.2733 | 697.0 | 674.2 | |
| 6 | -8 | 3 | -8 | 21.35 | 285.57 | 5.81 | 341.94 | 0.3056 | -1184.2 | 999999 | |
| 0 | 5 | 0 | 3 | 20.16 | 285.31 | 5.56 | 341.35 | 0.2854 | -382.0 | -530.9 | |
| 0 | 18 | 0 | 9 | 20.98 | 285.05 | 5.29 | 343.09 | 0.2971 | -1032.0 | -786.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
