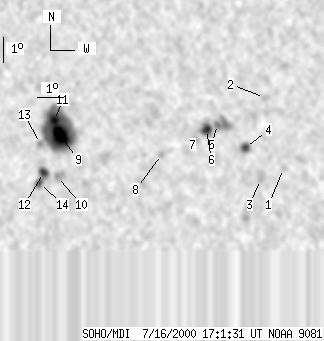

SOHO MDI 2000-07-16 17:01:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55 | 312 | 27 | 157 | 2.88 | 271.41 | -6.90 | 108.29 | 0.1268 | -864.6 | -320.5 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-16 17:01:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 5 | 0 | 3 | 1.77 | 278.33 | 0.02 | 180.51 | 0.0491 | 713.0 | 595.1 | |
| 0 | 7 | 0 | 4 | 4.58 | 277.58 | -0.73 | 89.67 | 0.0127 | 732.0 | 591.7 | |
| 0 | 12 | 0 | 6 | 1.33 | 277.42 | -0.88 | 164.72 | 0.0588 | 737.0 | 572.7 | |
| 5 | 14 | 3 | 7 | 2.60 | 276.83 | -1.48 | 143.16 | 0.0432 | 1109.4 | 689.1 | |
| 0 | 24 | 0 | 12 | 3.50 | 275.72 | -2.59 | 112.36 | 0.0490 | 1117.0 | 963.9 | |
| 8 | 20 | 4 | 10 | 3.30 | 275.28 | -3.03 | 112.67 | 0.0574 | 1213.3 | 864.0 | |
| 0 | 8 | 0 | 4 | 2.91 | 274.85 | -3.46 | 115.62 | 0.0672 | 807.0 | 656.4 | |
| 0 | 4 | 0 | 2 | 2.31 | 273.50 | -4.81 | 115.11 | 0.0929 | 849.0 | 701.7 | |
| 24 | 176 | 12 | 88 | 3.02 | 269.47 | -8.84 | 99.67 | 0.1564 | -1965.2 | -811.5 | |
| 0 | 12 | 0 | 6 | 1.40 | 269.36 | -8.95 | 109.29 | 0.1655 | -1006.0 | -860.1 | |
| 9 | -9 | 4 | -9 | 3.61 | 269.22 | -9.08 | 95.72 | 0.1591 | -1531.6 | 999999 | |
| 6 | 26 | 3 | 13 | 1.55 | 268.80 | -9.51 | 107.37 | 0.1739 | -1017.8 | -724.0 | |
| 0 | 4 | 0 | 2 | 2.69 | 268.67 | -9.64 | 100.72 | 0.1710 | -547.0 | -490.6 | |
| 3 | -12 | 1 | -12 | 1.11 | 268.64 | -9.67 | 109.44 | 0.1789 | -826.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
