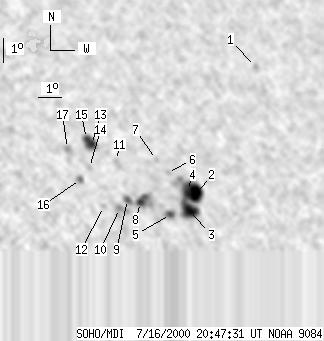

SOHO MDI 2000-07-16 20:47:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69 | 260 | 38 | 139 | 19.70 | 288.35 | 12.12 | 323.13 | 0.3312 | 575.4 | 158.9 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-16 20:47:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 5 | 0 | 3 | 24.67 | 293.27 | 17.04 | 322.47 | 0.4389 | 710.0 | 510.6 | |
| 20 | 124 | 11 | 65 | 19.46 | 290.07 | 13.84 | 318.95 | 0.3448 | 1192.4 | 756.4 | |
| 18 | -2 | 10 | -2 | 18.77 | 289.71 | 13.48 | 318.24 | 0.3328 | 1487.0 | 999999 | |
| 8 | -2 | 4 | -2 | 19.59 | 289.69 | 13.46 | 319.96 | 0.3424 | 1311.0 | 999999 | |
| 4 | 9 | 2 | 5 | 18.62 | 288.88 | 12.65 | 319.66 | 0.3221 | 1010.1 | 675.1 | |
| 0 | 3 | 0 | 2 | 20.34 | 288.89 | 12.66 | 323.07 | 0.3435 | 383.0 | 345.8 | |
| 0 | 3 | 0 | 2 | 20.89 | 288.46 | 12.23 | 324.98 | 0.3463 | 564.0 | 412.3 | |
| 5 | 28 | 3 | 15 | 19.13 | 287.64 | 11.41 | 323.52 | 0.3157 | -754.3 | -273.9 | |
| 3 | 10 | 2 | 5 | 19.27 | 287.09 | 10.86 | 325.08 | 0.3121 | -1121.4 | -791.5 | |
| 0 | 22 | 0 | 12 | 18.90 | 286.73 | 10.50 | 325.26 | 0.3038 | -1081.0 | -622.6 | |
| 0 | 10 | 0 | 5 | 20.87 | 286.73 | 10.50 | 328.84 | 0.3306 | -728.0 | -398.4 | |
| 0 | 4 | 0 | 2 | 18.99 | 286.05 | 9.82 | 327.16 | 0.2988 | 425.0 | 384.6 | |
| 7 | 25 | 4 | 13 | 21.55 | 285.70 | 9.47 | 332.40 | 0.3318 | -1387.0 | -857.5 | |
| 0 | 5 | 0 | 3 | 20.60 | 285.55 | 9.32 | 331.29 | 0.3171 | -472.0 | -289.1 | |
| 4 | -13 | 2 | -13 | 21.80 | 285.50 | 9.27 | 333.26 | 0.3339 | -963.2 | 999999 | |
| 0 | 7 | 0 | 4 | 20.11 | 285.14 | 8.91 | 331.56 | 0.3068 | -761.0 | -561.5 | |
| 0 | 5 | 0 | 3 | 21.39 | 284.66 | 8.43 | 334.80 | 0.3219 | -891.0 | -829.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
