SOHO MDI 2000-07-17 06:49:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 159 | 977 | 101 | 628 | 16.85 | 308.67 | 37.98 | 291.25 | 0.6334 | 150.9 | 132.2 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-17 06:49:31 UT |

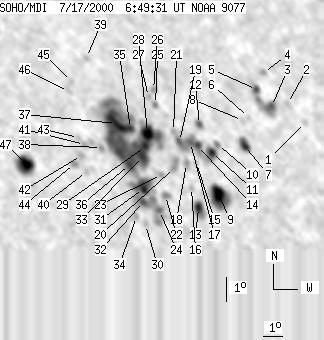

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 5 | 0 | 4 | 17.60 | 316.96 | 46.26 | 289.82 | 0.7344 | -667.0 | -517.6 | |
| 0 | 3 | 0 | 2 | 18.42 | 316.21 | 45.52 | 291.11 | 0.7279 | -490.0 | -440.1 | |
| 4 | 64 | 3 | 45 | 18.35 | 315.24 | 44.55 | 291.27 | 0.7168 | -1069.5 | -576.1 | |
| 0 | 6 | 0 | 4 | 19.75 | 315.25 | 44.55 | 293.18 | 0.7206 | 687.0 | 495.8 | |
| 4 | -3 | 3 | -3 | 19.08 | 314.61 | 43.91 | 292.46 | 0.7116 | -227.0 | 999999 | |
| 0 | 3 | 0 | 2 | 17.98 | 313.79 | 43.10 | 291.16 | 0.6992 | 483.0 | 408.9 | |
| 6 | 19 | 4 | 13 | 16.86 | 313.24 | 42.55 | 289.74 | 0.6898 | 786.8 | 512.0 | |
| 0 | 5 | 0 | 3 | 17.87 | 313.42 | 42.73 | 291.13 | 0.6946 | 625.0 | 526.4 | |
| 20 | 68 | 13 | 45 | 14.97 | 311.32 | 40.63 | 287.50 | 0.6619 | -1079.6 | -435.5 | |
| 0 | 6 | 0 | 4 | 16.98 | 311.77 | 41.07 | 290.34 | 0.6725 | 502.0 | 347.0 | |
| 7 | 24 | 5 | 16 | 16.67 | 311.36 | 40.67 | 290.01 | 0.6667 | 779.3 | 280.7 | |
| 3 | 9 | 2 | 6 | 17.83 | 311.01 | 40.32 | 291.83 | 0.6658 | 605.6 | 473.9 | |
| 9 | 24 | 6 | 16 | 14.51 | 310.15 | 39.46 | 287.11 | 0.6460 | -882.9 | -531.0 | |
| 4 | 48 | 3 | 31 | 16.99 | 310.68 | 39.99 | 290.70 | 0.6593 | 948.8 | 826.3 | |
| 0 | 4 | 0 | 3 | 16.31 | 310.46 | 39.76 | 289.76 | 0.6545 | -409.0 | -243.1 | |
| 0 | 5 | 0 | 3 | 15.32 | 309.96 | 39.26 | 288.41 | 0.6456 | -432.0 | -389.4 | |
| 2 | -14 | 1 | -14 | 17.13 | 310.34 | 39.64 | 291.02 | 0.6555 | 1182.5 | 999999 | |
| 0 | 7 | 0 | 5 | 16.30 | 309.92 | 39.22 | 289.91 | 0.6478 | -523.0 | -392.2 | |
| 3 | -14 | 2 | -14 | 17.20 | 309.77 | 39.07 | 291.32 | 0.6486 | 1085.5 | 999999 | |
| 0 | 16 | 0 | 10 | 16.17 | 309.25 | 38.56 | 289.93 | 0.6390 | -135.0 | 77.7 | |
| 0 | 6 | 0 | 4 | 17.62 | 309.55 | 38.86 | 292.02 | 0.6473 | 289.0 | 435.2 | |
| 0 | 9 | 0 | 6 | 15.07 | 308.54 | 37.84 | 288.45 | 0.6267 | -937.0 | -684.3 | |
| 0 | 5 | 0 | 3 | 15.92 | 308.51 | 37.82 | 289.79 | 0.6289 | -329.0 | -305.5 | |
| 0 | 31 | 0 | 20 | 14.48 | 308.10 | 37.41 | 287.66 | 0.6196 | -891.0 | -777.4 | |
| 0 | 6 | 0 | 4 | 18.76 | 308.89 | 38.20 | 293.99 | 0.6431 | 504.0 | 473.6 | |
| 0 | 6 | 0 | 4 | 19.37 | 308.95 | 38.26 | 294.88 | 0.6462 | 490.0 | 478.6 | |
| 0 | 4 | 0 | 2 | 19.10 | 308.61 | 37.92 | 294.62 | 0.6410 | 566.0 | 433.5 | |
| 16 | 397 | 10 | 250 | 17.61 | 308.17 | 37.48 | 292.52 | 0.6301 | 1218.9 | 725.9 | |
| 4 | -28 | 3 | -28 | 17.09 | 307.94 | 37.25 | 291.81 | 0.6254 | 1500.4 | 999999 | |
| 0 | 6 | 0 | 4 | 13.96 | 307.29 | 36.59 | 287.07 | 0.6074 | -714.0 | -618.6 | |
| 7 | 80 | 4 | 50 | 15.40 | 307.47 | 36.77 | 289.33 | 0.6139 | -423.4 | -660.1 | |
| 4 | -31 | 2 | -31 | 14.88 | 307.36 | 36.67 | 288.53 | 0.6110 | -1212.5 | 999999 | |
| 13 | -28 | 8 | -28 | 16.69 | 307.70 | 37.00 | 291.28 | 0.6209 | 860.7 | 999999 | |
| 0 | 9 | 0 | 6 | 14.30 | 306.89 | 36.20 | 287.74 | 0.6031 | -888.0 | -740.7 | |
| 5 | -28 | 3 | -28 | 17.85 | 307.34 | 36.65 | 293.23 | 0.6206 | 947.5 | 999999 | |
| 8 | -28 | 5 | -28 | 16.40 | 306.96 | 36.27 | 291.11 | 0.6105 | 364.5 | 999999 | |
| 20 | -28 | 12 | -28 | 18.08 | 306.68 | 35.98 | 293.89 | 0.6131 | 1349.4 | 999999 | |
| 0 | 5 | 0 | 3 | 17.15 | 305.70 | 35.00 | 292.83 | 0.5969 | -110.0 | 18.2 | |
| 0 | 5 | 0 | 3 | 20.84 | 305.82 | 35.13 | 298.58 | 0.6146 | 488.0 | 381.4 | |
| 0 | 4 | 0 | 3 | 16.22 | 304.75 | 34.06 | 291.72 | 0.5810 | -335.0 | -399.8 | |
| 0 | 12 | 0 | 8 | 17.31 | 304.87 | 34.18 | 293.47 | 0.5869 | -594.0 | -382.4 | |
| 0 | 8 | 0 | 5 | 16.87 | 304.63 | 33.94 | 292.86 | 0.5820 | -648.0 | -728.2 | |
| 0 | 4 | 0 | 3 | 17.60 | 304.64 | 33.94 | 294.06 | 0.5851 | -527.0 | -532.4 | |
| 0 | 6 | 0 | 4 | 16.56 | 304.22 | 33.53 | 292.54 | 0.5754 | -853.0 | -737.3 | |
| 0 | 4 | 0 | 2 | 19.89 | 304.81 | 34.12 | 297.65 | 0.5976 | 602.0 | 539.5 | |
| 0 | 6 | 0 | 4 | 19.49 | 304.56 | 33.87 | 297.15 | 0.5926 | 719.0 | 568.9 | |
| 20 | 48 | 12 | 28 | 16.62 | 301.88 | 31.19 | 293.81 | 0.5445 | -1229.6 | -779.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
