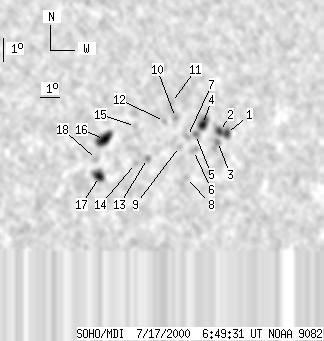

SOHO MDI 2000-07-17 06:49:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33 | 151 | 21 | 100 | -10.93 | 307.95 | 37.26 | 246.95 | 0.6477 | 182.5 | -216.0 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-17 06:49:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4 | 19 | 2 | 13 | -10.77 | 311.15 | 40.45 | 248.86 | 0.6857 | -702.9 | -670.6 | |
| 3 | -1 | 2 | -1 | -10.66 | 310.76 | 40.07 | 248.82 | 0.6807 | -870.4 | 999999 | |
| 0 | 10 | 0 | 7 | -11.07 | 310.72 | 40.03 | 248.24 | 0.6820 | -716.0 | -523.7 | |
| 6 | 19 | 4 | 13 | -10.33 | 309.82 | 39.13 | 248.84 | 0.6680 | -1007.4 | -831.3 | |
| 0 | 6 | 0 | 4 | -10.72 | 309.52 | 38.82 | 248.14 | 0.6660 | -925.0 | -884.4 | |
| 0 | 9 | 0 | 6 | -11.38 | 309.52 | 38.82 | 247.21 | 0.6689 | -702.0 | -611.7 | |
| 0 | 5 | 0 | 3 | -10.78 | 309.11 | 38.42 | 247.85 | 0.6614 | -648.0 | -504.2 | |
| 0 | 3 | 0 | 2 | -12.48 | 309.34 | 38.65 | 245.58 | 0.6720 | -515.0 | -445.1 | |
| 0 | 4 | 0 | 3 | -11.17 | 308.76 | 38.07 | 247.11 | 0.6589 | -418.0 | -404.3 | |
| 0 | 5 | 0 | 3 | -9.97 | 308.38 | 37.69 | 248.65 | 0.6488 | -520.0 | -434.8 | |
| 0 | 4 | 0 | 3 | -9.34 | 308.09 | 37.40 | 249.42 | 0.6425 | 426.0 | 344.0 | |
| 0 | 4 | 0 | 2 | -10.10 | 307.84 | 37.15 | 248.17 | 0.6427 | -683.0 | -567.6 | |
| 0 | 5 | 0 | 3 | -11.59 | 307.20 | 36.50 | 245.65 | 0.6419 | -420.0 | -445.6 | |
| 0 | 4 | 0 | 3 | -11.76 | 306.62 | 35.93 | 245.06 | 0.6358 | -593.0 | -497.0 | |
| 0 | 4 | 0 | 3 | -10.24 | 306.41 | 35.71 | 247.19 | 0.6254 | -379.0 | -329.4 | |
| 13 | 28 | 8 | 18 | -10.70 | 304.94 | 34.25 | 245.62 | 0.6093 | 1038.8 | 622.7 | |
| 7 | 16 | 5 | 10 | -12.22 | 304.91 | 34.21 | 243.32 | 0.6173 | 863.0 | 529.3 | |
| 0 | 6 | 0 | 4 | -11.51 | 304.66 | 33.96 | 244.22 | 0.6102 | 387.0 | 284.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
