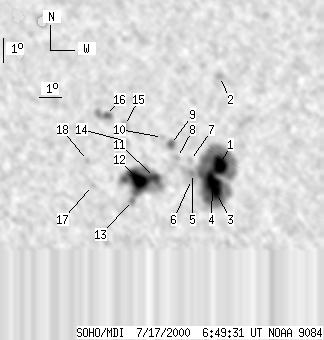

SOHO MDI 2000-07-17 06:49:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 92 | 502 | 50 | 271 | 19.25 | 289.01 | 18.31 | 310.95 | 0.3943 | 454.6 | 174.6 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-17 06:49:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24 | 280 | 13 | 152 | 19.45 | 290.54 | 19.84 | 309.12 | 0.4143 | 1649.4 | 663.0 | |
| 0 | 8 | 0 | 4 | 23.12 | 291.06 | 20.37 | 315.15 | 0.4558 | 713.0 | 689.1 | |
| 12 | -1 | 7 | -1 | 18.35 | 290.27 | 19.57 | 307.24 | 0.4011 | 1890.1 | 999999 | |
| 19 | -1 | 10 | -1 | 18.80 | 290.15 | 19.45 | 308.34 | 0.4036 | 1837.7 | 999999 | |
| 0 | 3 | 0 | 2 | 19.15 | 289.30 | 18.61 | 310.21 | 0.3964 | 660.0 | 779.9 | |
| 0 | 12 | 0 | 7 | 18.91 | 289.23 | 18.54 | 309.81 | 0.3932 | 340.0 | 285.0 | |
| 0 | 5 | 0 | 3 | 19.69 | 289.28 | 18.58 | 311.32 | 0.4012 | 442.0 | 347.7 | |
| 0 | 4 | 0 | 2 | 19.82 | 288.72 | 18.02 | 312.41 | 0.3959 | -426.0 | -329.1 | |
| 0 | 12 | 0 | 6 | 20.36 | 288.47 | 17.78 | 313.83 | 0.3985 | 711.0 | 551.2 | |
| 0 | 3 | 0 | 2 | 20.66 | 288.15 | 17.46 | 314.89 | 0.3979 | 354.0 | 427.1 | |
| 7 | 125 | 4 | 67 | 19.03 | 287.62 | 16.92 | 312.49 | 0.3748 | -885.8 | -744.2 | |
| 30 | -11 | 16 | -11 | 18.96 | 286.91 | 16.22 | 313.50 | 0.3657 | -1593.6 | 999999 | |
| 0 | 5 | 0 | 3 | 18.11 | 286.57 | 15.88 | 312.25 | 0.3528 | -714.0 | -709.2 | |
| 0 | 8 | 0 | 4 | 20.53 | 286.55 | 15.86 | 317.26 | 0.3786 | -473.0 | -388.8 | |
| 0 | 11 | 0 | 6 | 21.19 | 286.53 | 15.84 | 318.53 | 0.3859 | -877.0 | -617.6 | |
| 0 | 18 | 0 | 9 | 21.62 | 285.79 | 15.09 | 320.61 | 0.3831 | -1081.0 | -766.5 | |
| 0 | 4 | 0 | 2 | 18.76 | 284.90 | 14.21 | 316.69 | 0.3403 | 257.0 | 302.3 | |
| 0 | 4 | 0 | 2 | 19.78 | 284.78 | 14.08 | 319.04 | 0.3508 | -394.0 | -384.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
