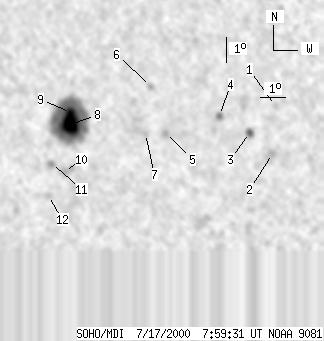

SOHO MDI 2000-07-17 07:59:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40 | 299 | 20 | 149 | 2.84 | 270.59 | 0.54 | 181.79 | 0.0438 | -1523.7 | -529.5 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-17 07:59:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 6 | 0 | 3 | 3.68 | 277.87 | 7.82 | 263.38 | 0.1373 | 658.0 | 554.5 | |
| 0 | 7 | 0 | 3 | 1.79 | 277.73 | 7.68 | 249.91 | 0.1430 | 850.0 | 704.0 | |
| 3 | 10 | 2 | 5 | 2.63 | 276.82 | 6.77 | 253.73 | 0.1233 | 870.1 | 578.0 | |
| 0 | 8 | 0 | 4 | 3.31 | 275.63 | 5.58 | 256.87 | 0.1002 | 945.0 | 672.2 | |
| 0 | 7 | 0 | 4 | 2.61 | 273.48 | 3.43 | 239.62 | 0.0697 | 889.0 | 668.3 | |
| 0 | 7 | 0 | 4 | 4.47 | 272.89 | 2.84 | 266.94 | 0.0498 | -814.0 | -712.5 | |
| 0 | 3 | 0 | 1 | 2.62 | 272.69 | 2.64 | 232.69 | 0.0581 | 382.0 | 311.9 | |
| 30 | 219 | 15 | 109 | 2.98 | 269.72 | -0.33 | 168.79 | 0.0296 | -1988.5 | -708.9 | |
| 7 | -8 | 3 | -8 | 3.45 | 269.72 | -0.33 | 164.47 | 0.0215 | -1720.6 | 999999 | |
| 0 | 16 | 0 | 8 | 1.12 | 269.49 | -0.56 | 170.86 | 0.0624 | -1129.0 | -776.9 | |
| 0 | 8 | 0 | 4 | 1.43 | 268.97 | -1.08 | 161.35 | 0.0591 | -960.0 | -757.1 | |
| 0 | 8 | 0 | 4 | 0.16 | 268.85 | -1.20 | 164.97 | 0.0810 | -654.0 | -467.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
