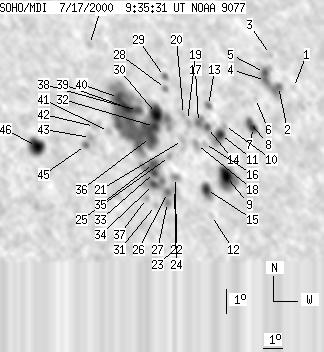

SOHO MDI 2000-07-17 09:35:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 160 | 885 | 105 | 580 | 16.82 | 308.68 | 39.51 | 290.64 | 0.6524 | 208.9 | 147.3 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-17 09:35:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 2 | 0 | 2 | 18.30 | 316.22 | 47.05 | 290.56 | 0.7445 | -331.0 | -508.7 | |
| 2 | 52 | 2 | 38 | 18.39 | 315.33 | 46.17 | 290.89 | 0.7350 | -886.0 | -608.3 | |
| 0 | 3 | 0 | 2 | 19.71 | 315.33 | 46.16 | 292.65 | 0.7381 | 387.0 | 507.5 | |
| 3 | -2 | 2 | -2 | 18.67 | 314.65 | 45.48 | 291.45 | 0.7281 | -804.1 | 999999 | |
| 6 | -2 | 4 | -2 | 19.00 | 314.71 | 45.54 | 291.88 | 0.7295 | -388.9 | 999999 | |
| 0 | 3 | 0 | 2 | 17.98 | 313.83 | 44.66 | 290.73 | 0.7172 | 300.0 | 300.3 | |
| 6 | 22 | 4 | 16 | 16.82 | 313.35 | 44.19 | 289.25 | 0.7090 | 698.7 | 473.1 | |
| 3 | -7 | 2 | -7 | 17.07 | 313.20 | 44.03 | 289.64 | 0.7077 | 570.2 | 999999 | |
| 15 | 63 | 10 | 42 | 14.94 | 311.32 | 42.15 | 287.07 | 0.6806 | -1059.0 | -432.9 | |
| 0 | 4 | 0 | 3 | 16.99 | 311.75 | 42.58 | 289.90 | 0.6905 | 326.0 | 409.9 | |
| 8 | 30 | 6 | 21 | 16.64 | 311.42 | 42.26 | 289.49 | 0.6858 | 746.5 | 234.1 | |
| 0 | 3 | 0 | 2 | 13.43 | 310.16 | 40.99 | 285.10 | 0.6631 | 356.0 | 314.7 | |
| 0 | 7 | 0 | 5 | 17.84 | 311.09 | 41.92 | 291.31 | 0.6850 | 602.0 | 490.9 | |
| 4 | 26 | 2 | 18 | 16.96 | 310.79 | 41.62 | 290.13 | 0.6790 | 865.6 | 828.1 | |
| 8 | 24 | 5 | 16 | 14.48 | 310.12 | 40.95 | 286.67 | 0.6647 | -826.2 | -525.7 | |
| 0 | 4 | 0 | 3 | 16.32 | 310.45 | 41.29 | 289.31 | 0.6733 | -207.0 | -210.1 | |
| 3 | -14 | 2 | -14 | 17.18 | 310.35 | 41.18 | 290.59 | 0.6743 | 1035.7 | 999999 | |
| 0 | 8 | 0 | 5 | 16.31 | 310.01 | 40.84 | 289.41 | 0.6678 | -398.0 | -336.4 | |
| 0 | 6 | 0 | 4 | 17.30 | 309.78 | 40.61 | 290.93 | 0.6677 | 745.0 | 848.1 | |
| 0 | 3 | 0 | 2 | 17.55 | 309.63 | 40.46 | 291.35 | 0.6666 | 698.0 | 659.3 | |
| 0 | 6 | 0 | 4 | 16.50 | 309.30 | 40.13 | 289.92 | 0.6596 | 526.0 | 452.7 | |
| 0 | 10 | 0 | 6 | 15.04 | 308.58 | 39.41 | 287.93 | 0.6467 | -734.0 | -625.5 | |
| 0 | 8 | 0 | 5 | 12.21 | 308.02 | 38.85 | 283.69 | 0.6333 | -739.0 | -626.9 | |
| 0 | 7 | 0 | 5 | 14.56 | 308.42 | 39.25 | 287.24 | 0.6435 | -739.0 | -661.7 | |
| 0 | 5 | 0 | 3 | 15.90 | 308.45 | 39.29 | 289.27 | 0.6474 | -362.0 | -321.0 | |
| 2 | 7 | 2 | 5 | 14.46 | 308.03 | 38.86 | 287.19 | 0.6383 | -973.2 | -906.3 | |
| 0 | 12 | 0 | 8 | 14.06 | 307.95 | 38.78 | 286.59 | 0.6362 | -895.0 | -762.4 | |
| 0 | 5 | 0 | 4 | 18.65 | 308.95 | 39.78 | 293.20 | 0.6619 | 521.0 | 392.1 | |
| 0 | 7 | 0 | 5 | 19.14 | 309.03 | 39.87 | 293.88 | 0.6646 | 546.0 | 390.6 | |
| 19 | 393 | 13 | 253 | 17.66 | 308.19 | 39.03 | 292.01 | 0.6495 | 1106.3 | 712.9 | |
| 0 | 5 | 0 | 3 | 13.97 | 307.30 | 38.14 | 286.63 | 0.6277 | -832.0 | -656.1 | |
| 7 | -30 | 4 | -30 | 17.14 | 307.96 | 38.79 | 291.31 | 0.6448 | 1350.5 | 999999 | |
| 3 | 82 | 2 | 52 | 15.29 | 307.53 | 38.36 | 288.63 | 0.6340 | -749.7 | -690.1 | |
| 5 | -33 | 3 | -33 | 14.82 | 307.37 | 38.20 | 287.93 | 0.6307 | -1231.8 | 999999 | |
| 6 | -33 | 4 | -33 | 15.66 | 307.55 | 38.39 | 289.18 | 0.6353 | 239.8 | 999999 | |
| 18 | -30 | 12 | -30 | 16.71 | 307.64 | 38.47 | 290.77 | 0.6395 | 819.9 | 999999 | |
| 0 | 5 | 0 | 3 | 14.28 | 306.90 | 37.73 | 287.22 | 0.6231 | -820.0 | -739.7 | |
| 5 | -30 | 3 | -30 | 17.83 | 307.23 | 38.06 | 292.63 | 0.6381 | 898.4 | 999999 | |
| 11 | -30 | 7 | -30 | 17.98 | 306.68 | 37.52 | 293.07 | 0.6318 | 1369.6 | 999999 | |
| 9 | -30 | 6 | -30 | 18.40 | 306.37 | 37.20 | 293.85 | 0.6295 | 1172.7 | 999999 | |
| 0 | 7 | 0 | 4 | 17.05 | 305.53 | 36.36 | 292.09 | 0.6139 | -212.0 | -115.8 | |
| 0 | 9 | 0 | 5 | 17.29 | 304.86 | 35.69 | 292.74 | 0.6063 | -542.0 | -444.4 | |
| 0 | 6 | 0 | 3 | 16.85 | 304.56 | 35.39 | 292.17 | 0.6008 | -912.0 | -774.3 | |
| 0 | 6 | 0 | 4 | 20.63 | 305.44 | 36.27 | 297.66 | 0.6274 | 788.0 | 656.6 | |
| 0 | 7 | 0 | 4 | 16.54 | 304.24 | 35.07 | 291.81 | 0.5955 | -727.0 | -719.8 | |
| 17 | 38 | 10 | 23 | 16.61 | 301.82 | 32.65 | 293.02 | 0.5639 | -1181.4 | -787.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
