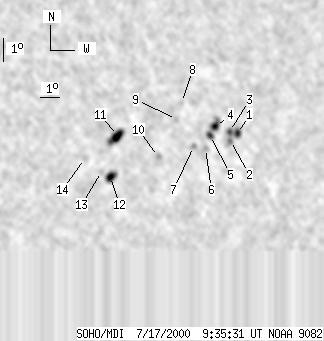

SOHO MDI 2000-07-17 09:35:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32 | 125 | 21 | 81 | -11.00 | 308.00 | 38.83 | 247.64 | 0.6671 | 80.1 | -173.4 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-17 09:35:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4 | 19 | 3 | 13 | -10.85 | 311.30 | 42.13 | 249.49 | 0.7058 | -668.9 | -661.0 | |
| 0 | 9 | 0 | 6 | -11.12 | 310.97 | 41.80 | 248.98 | 0.7030 | -688.0 | -527.5 | |
| 2 | -1 | 1 | -1 | -10.74 | 310.85 | 41.68 | 249.43 | 0.7001 | -833.0 | 999999 | |
| 5 | 25 | 3 | 17 | -10.50 | 310.06 | 40.89 | 249.42 | 0.6898 | -932.1 | -812.7 | |
| 3 | -4 | 2 | -4 | -10.85 | 309.85 | 40.68 | 248.83 | 0.6888 | -926.9 | 999999 | |
| 0 | 4 | 0 | 3 | -11.38 | 309.67 | 40.50 | 248.03 | 0.6889 | -869.0 | -766.9 | |
| 0 | 4 | 0 | 3 | -11.26 | 309.01 | 39.85 | 247.88 | 0.6807 | -600.0 | -484.3 | |
| 0 | 3 | 0 | 2 | -9.41 | 308.11 | 38.94 | 250.05 | 0.6619 | 523.0 | 359.3 | |
| 0 | 4 | 0 | 3 | -10.10 | 307.95 | 38.78 | 248.99 | 0.6628 | -805.0 | -665.9 | |
| 0 | 5 | 0 | 3 | -11.58 | 307.24 | 38.08 | 246.53 | 0.6610 | -596.0 | -391.8 | |
| 11 | 26 | 7 | 16 | -10.60 | 305.03 | 35.86 | 246.71 | 0.6291 | 816.1 | 626.8 | |
| 7 | 16 | 5 | 10 | -12.28 | 304.92 | 35.76 | 244.19 | 0.6365 | 792.7 | 479.7 | |
| 0 | 4 | 0 | 2 | -12.05 | 304.44 | 35.27 | 244.23 | 0.6294 | 732.0 | 624.2 | |
| 0 | 6 | 0 | 3 | -11.48 | 303.52 | 34.35 | 244.50 | 0.6149 | 426.0 | 554.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
