SOHO MDI 2000-07-17 11:11:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27 | 126 | 18 | 86 | -11.00 | 308.25 | 39.96 | 248.20 | 0.6806 | 49.3 | -167.8 | |
|
previous
or next observation for the same group /

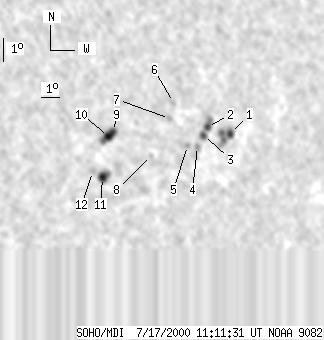

back to the solar disc SOHO MDI 2000-07-17 11:11:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4 | 31 | 3 | 22 | -10.91 | 311.42 | 43.13 | 249.83 | 0.7175 | -649.5 | -583.1 | |
| 4 | 24 | 3 | 17 | -10.54 | 310.10 | 41.81 | 249.76 | 0.7009 | -949.5 | -778.2 | |
| 3 | -2 | 2 | -2 | -10.90 | 309.94 | 41.66 | 249.20 | 0.7005 | -904.1 | 999999 | |
| 0 | 6 | 0 | 4 | -11.34 | 309.69 | 41.41 | 248.49 | 0.6993 | -745.0 | -806.4 | |
| 0 | 4 | 0 | 3 | -11.27 | 309.14 | 40.86 | 248.34 | 0.6926 | -554.0 | -480.5 | |
| 0 | 6 | 0 | 4 | -9.46 | 308.12 | 39.83 | 250.39 | 0.6731 | 360.0 | 283.3 | |
| 0 | 3 | 0 | 2 | -10.10 | 308.00 | 39.72 | 249.42 | 0.6743 | -814.0 | -712.6 | |
| 0 | 3 | 0 | 2 | -11.58 | 307.30 | 39.01 | 247.00 | 0.6722 | -359.0 | -399.7 | |
| 3 | 27 | 2 | 18 | -10.49 | 305.18 | 36.90 | 247.45 | 0.6415 | 663.8 | 595.7 | |
| 6 | -9 | 4 | -9 | -10.68 | 304.96 | 36.67 | 247.05 | 0.6396 | 848.0 | 999999 | |
| 7 | 18 | 4 | 12 | -12.36 | 304.91 | 36.63 | 244.59 | 0.6475 | 780.4 | 467.1 | |
| 0 | 4 | 0 | 2 | -12.09 | 304.36 | 36.08 | 244.66 | 0.6394 | 660.0 | 530.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
