groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

9077 157 843 104 564 16.79 308.49 41.09 290.09 0.6717 152.7 188.7


previous   or   next   observation for the same group / back to the solar disc

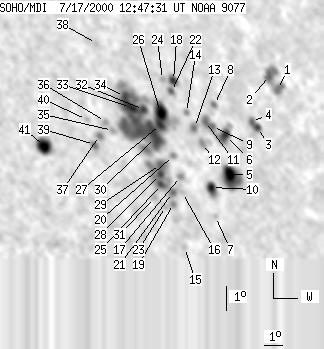

SOHO MDI 2000-07-17 12:47:31 UT
No observation available


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 0 15 0 11 18.23 315.11 47.70 290.30 0.7514 -904.0 -870.0
2 5 25 4 19 18.82 314.83 47.43 291.15 0.7497 -614.6 -210.6
3 5 19 3 14 16.77 313.40 45.99 288.74 0.7295 612.0 485.3
4 2 -3 2 -3 17.03 313.12 45.72 289.16 0.7270 611.3 999999
5 18 63 13 43 14.98 311.25 43.85 286.73 0.7011 -947.7 -331.7
6 6 30 4 21 16.55 311.45 44.05 288.89 0.7068 703.0 338.1
7 0 3 0 2 13.35 310.08 42.67 284.63 0.6839 293.0 286.1
8 0 7 0 5 17.83 311.20 43.80 290.74 0.7069 629.0 420.5
9 2 27 1 19 16.95 310.82 43.42 289.62 0.7003 891.2 733.1
10 8 21 5 14 14.52 310.12 42.72 286.31 0.6866 -715.1 -518.3
11 3 -9 2 -9 17.18 310.49 43.09 290.02 0.6969 1007.4 999999
12 0 8 0 5 16.30 310.07 42.67 288.89 0.6899 -591.0 -393.4
13 0 13 0 9 16.97 309.81 42.41 289.91 0.6883 927.0 813.5
14 0 6 0 4 17.59 309.54 42.13 290.88 0.6868 721.0 607.3
15 0 4 0 3 12.20 308.15 40.75 283.29 0.6579 -726.0 -642.0
16 0 3 0 2 14.40 308.50 41.10 286.51 0.6663 -519.0 -504.1
17 0 6 0 4 15.04 308.54 41.14 287.45 0.6683 -892.0 -702.6
18 6 14 4 10 18.92 309.20 41.80 292.88 0.6867 509.6 349.5
19 0 7 0 5 13.99 307.92 40.52 286.03 0.6582 -791.0 -726.8
20 0 5 0 4 15.90 308.36 40.96 288.77 0.6682 -393.0 -288.9
21 2 13 2 9 14.43 307.96 40.56 286.68 0.6597 -977.5 -844.4
22 2 7 1 5 18.48 308.96 41.55 292.34 0.6824 421.7 302.7
23 0 4 0 2 13.89 307.47 40.07 285.99 0.6523 -828.0 -718.3
24 0 5 0 3 19.00 308.61 41.21 293.18 0.6799 655.0 615.1
25 5 76 3 50 14.78 307.45 40.05 287.34 0.6540 -1262.0 -598.5
26 18 384 12 253 17.67 308.11 40.71 291.43 0.6699 1036.3 665.7
27 8 -26 5 -26 17.18 307.98 40.58 290.77 0.6670 1268.0 999999
28 4 -25 2 -25 15.18 307.49 40.08 287.93 0.6555 -776.6 999999
29 3 -25 2 -25 15.58 307.58 40.18 288.51 0.6576 287.2 999999
30 20 -26 13 -26 16.68 307.58 40.18 290.14 0.6606 674.4 999999
31 0 7 0 5 14.28 306.97 39.56 286.70 0.6468 -620.0 -600.6
32 4 -26 3 -26 17.84 307.23 39.83 291.97 0.6598 835.0 999999
33 10 -26 7 -26 17.95 306.56 39.16 292.38 0.6519 1289.3 999999
34 8 -26 5 -26 18.41 306.36 38.96 293.14 0.6511 1041.4 999999
35 0 6 0 4 17.07 305.38 37.98 291.48 0.6344 9.0 -83.7
36 0 6 0 4 17.45 305.10 37.70 292.17 0.6322 -377.0 -352.1
37 0 7 0 4 16.90 304.66 37.26 291.49 0.6248 -872.0 -763.8
38 0 4 0 3 20.64 305.49 38.08 296.80 0.6490 799.0 701.5
39 0 9 0 5 16.55 304.32 36.92 291.07 0.6193 -791.0 -634.0
40 0 4 0 2 17.58 304.14 36.74 292.75 0.6206 -476.0 -401.6
41 18 35 11 21 16.59 301.78 34.38 292.16 0.5865 -1182.1 -612.4


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
